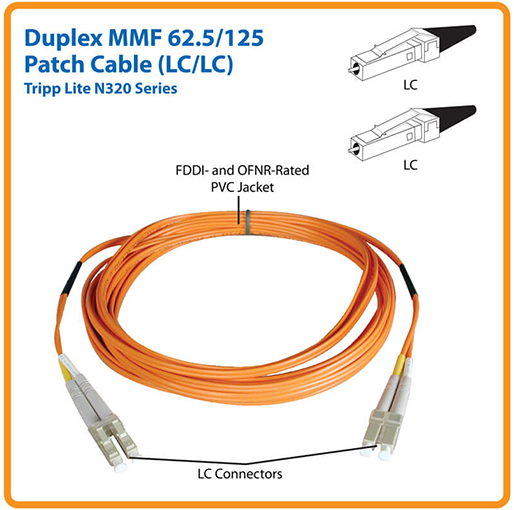

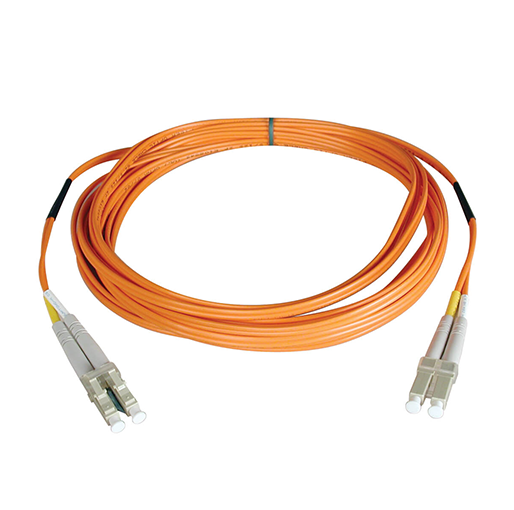

Tripp Lite Duplex Multimode 62.5/125 Fiber Patch Cable (LC/LC), 15M (50 ft.)

QAR 149

Availability:

In stock

SKU: N320-15M

Categories: ,

  • Manufactured from 62.5/125 duplex (Zipcord) fiber
  • Length: 15-Meters Connectors: LC connector on each end
  • Insertion loss testing performed on every connector (0.2dB typical)
  • Duplex multimode fiber is most commonly used in LAN applications where links are typically 10-ft. (3.05 m) or less
  • Fiber Optic Distributed Data Interface (FDDI) Rated
  • Manufactured from 62.5/125 duplex (Zipcord) fiber
  • Length: 15-Meters Connectors: LC connector on each end
  • Insertion loss testing performed on every connector (0.2dB typical)
  • Duplex multimode fiber is most commonly used in LAN applications where links are typically 10-ft. (3.05 m) or less
  • Fiber Optic Distributed Data Interface (FDDI) Rated

QAR 149

In stock

Order By Call

Order now & Get it delivered Today!!

PHYSICAL

Cable Jacket Color Orange
Connector Color Gray
Cable Jacket Material LSZH
Cable Jacket Rating OFNR
Clad Diameter (microns) 125
Core Diameter (microns) 62.5
Number of Fibers 2
Cable Length (ft.) 49.2
Cable Length (in.) 590.6
Minimum Bend Radius 20MM (Dynamic); 10MM (Static)
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (lbs.) 0.27

ENVIRONMENTAL

Operating Temperature Range -4 to 140 °F (-20 to 60 °C)
Storage Temperature Range -4 to 140 °F (-20 to 60 °C)
Operating Humidity Range 5% to 85% RH, Non-Condensing
Storage Humidity Range 35% to 65% RH, Non-Condensing

COMMUNICATIONS

Network Compatibility 1 Gbps (Gigabit); 10 Gbps
Attenuation @ 850NM 3.0dB/Km
Insertion Loss ≤0.20dB

CONNECTIONS

Side A – Connector 1 LC DUPLEX (MALE)
Side B – Connector 1 LC DUPLEX (MALE)
Endface Polish PC

STANDARDS & COMPLIANCE

Product Compliance RoHS; REACH
  • Manufactured from 62.5/125 duplex (zipcord) fiber
  • PVC jacket
  • Length: 15-meter. Connectors: LC connector on each end
  • Insertion loss testing performed on every connector (0.2db typical) and provided with cable
  • Beveled edge on ends of glass makes insertion of plug a breeze
  • Fiber made from glass (not a polymer)
  • Duplex multimode fiber is most commonly used in LAN applications where links are typically 10-ft. (3.05 m) or less
  • Fiber optic distributed data interface (FDDI) rated
  • OFNR (riser rated)

System Requirements
Any Fiber Optic hardware or NIC card requiring Multimode Duplex cable with LC connectors
