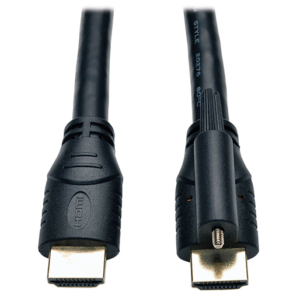

Tripp Lite High Speed HDMI Cable with Ethernet and Locking Connector, UHD 4K, 24AWG (M/M), 6 ft. (1.83 m)

QAR 79

Availability:

In stock


  • 6-ft. (1.83m) High Speed HDMI Cable with Ethernet
  • Features a locking HDMI connector for use with Tripp Lite’s BHDBT Series HDBaseT Extender products
  • Locking connector ensures a secure connection, preventing signal loss due to cables getting bumped and disconnected
  • Constructed using 24AWG wiring to ensure optimal performance to the latest HDMI features
  • Supports Ultra High Definition 4K video resolutions
  • 6-ft. (1.83m) High Speed HDMI Cable with Ethernet
  • Features a locking HDMI connector for use with Tripp Lite’s BHDBT Series HDBaseT Extender products
  • Locking connector ensures a secure connection, preventing signal loss due to cables getting bumped and disconnected
  • Constructed using 24AWG wiring to ensure optimal performance to the latest HDMI features
  • Supports Ultra High Definition 4K video resolutions

QAR 79

In stock

Order By Call

Order now & Get it delivered Today!!

VIDEO

Max Supported Video Resolution 3840 x 2160 @ 30Hz
Max Supported Color Depth 48-bit Deep Color
HDR Support No
3D Video Supported Yes
Chroma Sub Sampling 4:4:4
EDID Support Yes
Signal Transmission Bidirectional
Bandwidth 18 Gbps

AUDIO

Audio Specification ARC

USER INTERFACE, ALERTS & CONTROLS

LED Indicators 0

PHYSICAL

Material of Construction PVC
Color Black
Cable Jacket Color Black
Connector Color Black
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Cable Outer Diameter (OD) 10.0mm
Wire Gauge (AWG) 24
Cable Length (ft.) 6
Ferrite Core No
Minimum Bend Radius 50mm
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (lbs.) 0.50

ENVIRONMENTAL

Operating Temperature Range 14 to 122 F (-10 to 50 C)
Storage Temperature Range 5 to 140 F (-15 to 60 C)
Operating Humidity Range 0% to 90% RH, Non-Condensing
Storage Humidity Range 0% to 90% RH, Non-Condensing

COMMUNICATIONS

EDID Compatible Yes
Consumer Electronics Control (CEC) Supported Yes

CONNECTIONS

Side A – Connector 1 HDMI (MALE)
Side B – Connector 1 HDMI (MALE)
Connector Plating Gold
Contact Plating Gold
Connector Style Straight

FEATURES & SPECIFICATIONS

HDCP Specification 1.4; 2.2
EMI/RFI Line Noise Protection No
IP68 Rated No
Ethernet Support Yes

STANDARDS & COMPLIANCE

Product Compliance RoHS; REACH
  • 6-ft. High Speed HDMI Cable with Ethernet (v1.4)
  • Features a locking HDMI connector for use with Tripp Lite’s BHDBT Series HDBaseT Extender products
  • Locking connector ensures a secure connection, preventing signal loss due to cables getting bumped and disconnected
  • Constructed using 24AWG wiring to ensure optimal performance to the latest HDMI features
  • Supports Ultra High Definition (UHD) video resolutions up to 4K
  • Backward compatible to previous HDMI generations
  • Fully molded cables, with Gold plated contacts assures long life
