UPC Code |
037332197344 |
Product Type |
Passive |
Technology |
HDMI |
VIDEO
Max Supported Video Resolution |
3840 x 2160 @ 60Hz |
Max Supported Color Depth |
24-bit True Color |
HDR Support |
Yes |
3D Video Supported |
Yes |
Chroma Sub Sampling |
4:4:4 |
EDID Support |
Yes |
Signal Transmission |
Unidirectional |
AUDIO
Audio Specification |
TrueHD/DTS-HD Master Audio bitstream |
USER INTERFACE, ALERTS & CONTROLS
PHYSICAL
Color |
Black |
Cable Jacket Color |
Black |
Connector Color |
Black |
Cable Jacket Material |
PVC |
Cable Jacket Rating |
CL3 |
Cable Outer Diameter (OD) |
6.0mm |
Wire Gauge (AWG) |
30 |
Cable Length (ft.) |
10 |
Ferrite Core |
No |
Minimum Bend Radius |
60mm |
Shipping Dimensions (hwd / in.) |
9.00 x 6.60 x 0.50 |
Shipping Weight (lbs.) |
0.50 |
ENVIRONMENTAL
Operating Temperature Range |
32 to 122 F (0 to 50 C) |
Storage Temperature Range |
14 to 176 F (-10 to 80 C) |
Operating Humidity Range |
10% to 85% RH, Non-Condensing |
Storage Humidity Range |
5% to 90% RH, Non-Condensing |
COMMUNICATIONS
Consumer Electronics Control (CEC) Supported |
Yes |
CONNECTIONS
Side A – Connector 1 |
HDMI (MALE) |
Side B – Connector 1 |
HDMI (MALE) |
Connector Plating |
Gold |
Contact Plating |
Gold |
Connector Style |
Straight |
FEATURES & SPECIFICATIONS
HDCP Specification |
2.2 |
EMI/RFI Line Noise Protection |
No |
IP68 Rated |
No |
Fire Rating |
CL3 Rated |
Ethernet Support |
Yes |
STANDARDS & COMPLIANCE
Product Compliance |
RoHS; REACH |
Â

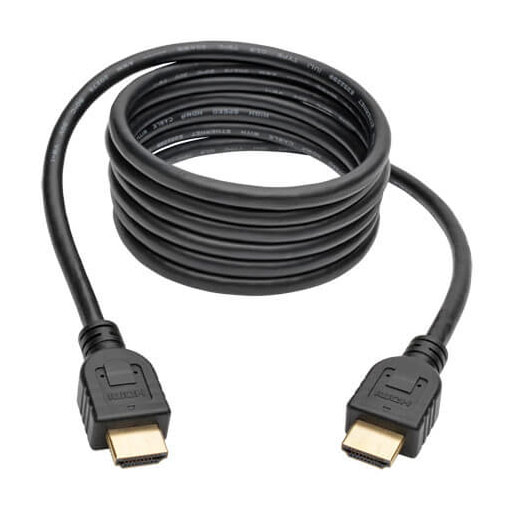

The P569-010-CL3 High-Speed HDMI Cable (M/M) is ideal for home theater systems, digital signage and other applications that display Ultra High Resolution (UHD) video and multi-channel audio. It connects an HDMI-enabled source device, such as a Blu-ray player, video game system or computer, to a 4K-enabled television, monitor or projector.
The P569-010-CL3 carries a CL3 rating, making it suitable for in-wall installation. It supports UHD video resolutions up to 3840 x 2160 (4K x 2K), data transfer speeds up to 18 Gbps and 3D. The P569-010-CL3 works in all HDMI cabling scenarios.
This HDMI cable supports Ethernet data connectivity, which allows web-capable devices to share their internet connection with other connected HDMI devices. An audio return channel simplifies setups between displays and A/V receivers. When used with an Apple digital A/V adapter, it supports iPad2 video mirroring for playing games, watching videos or displaying presentations.
The 10-foot (3.1-meter) molded 30 AWG cable features premium foil and braid shielding to deliver top-of-the-line signal quality and protection from EMI/RFI interference. Gold-plated connectors ensure excellent conductivity. Integral strain relief ensures the cable and connectors last a long time. A flexible CL3-rated PVC jacket makes the cable easy to install in tight spaces.
Features
Connects HDMI Source to 4K TV, Projector or Monitor
- Ideal for home theater systems, digital signage and other applications that display UHD video and multi-channel audio
- CL3 rating suitable for in-wall installation
High Performance and Wide Compatibility
- Supports UHD and 3D video resolutions up to 4K
- Supports iPad2 video mirroring when used with Apple digital A/V adapter
- Works in all HDMI cabling scenarios
Superior Quality Ensures a Flawless Signal
- Fully molded 30 AWG construction with integral strain relief for durability and long life
- Premium foil and braid shielding for EMI/RFI noise protection
- Corrosion-resistant gold-plated connectors for optimal signal transfer
- Flexible PVC jacket easy to install in tight spaces
Package Includes
P569-010-CL3 High-Speed HDMI Cable with Ethernet (M/M), 10 ft.
