VIDEO
Max Supported Video Resolution | 1920 x 1200 (1080p) |
HDR Support | No |
PHYSICAL
Material of Construction | ABS, PVC |
Color | Black |
Cable Jacket Color | Black |
Cable Jacket Rating | VW-1 |
Cable Outer Diameter (OD) | 5.0 +/- 15mm |
Wire Gauge (AWG) | 32 |
Cable Length (ft.) | 10 |
Cable Length (in.) | 120 |
Shipping Dimensions (hwd / in.) | 8.00 x 10.00 x 0.50 |
Shipping Weight (lbs.) | 0.44 |
ENVIRONMENTAL
Operating Temperature Range | 32 to 104 F (0 to 40 C) |
Storage Temperature Range | 5 to 122 F (-15 to 50 C) |
Operating Humidity Range | 0 to 85%, Non-Condensing |
Storage Humidity Range | 0 to 85%, Non-Condensing |
CONNECTIONS
Side A – Connector 1 | MINI DISPLAYPORT (MALE) |
Side B – Connector 1 | HD15 (MALE) |
Connector Plating | Nickel |
Contact Plating | Gold |
FEATURES & SPECIFICATIONS
Displayport Specification | 1.2 |
IP68 Rated | No |
STANDARDS & COMPLIANCE
Product Compliance | RoHS; CE (Europe); REACH; FCC (USA) |

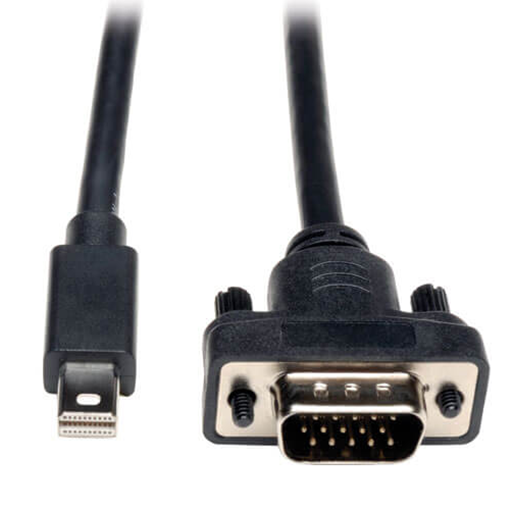

Send High-Quality Mini DisplayPort v1.2 Video Signals to a VGA Display
Connects Mini DisplayPort (or Thunderbolt) computer to VGA-enabled monitor, projector or TV
Ideal for displaying video on large monitor or digital sign
Low-profile VGA connector fits neatly into available space; no jamming between wall and monitor or impeding neighboring connections
Mini DisplayPort and HD15 male connectors
No separate adapter required
Vibrant, Superior Video Quality
Supports computer video resolutions up to 1920 x 1200
Supports HD video resolutions up to 1920 x 1080 (1080p)
Converts Single-Mode and Dual-Mode (DP++) Mini DisplayPort output
Perfect for use with graphics cards, such as AMD Eyefinity, that don’t output DP++ signals
Superior Materials for Superior Performance
Double shielding with foil and braid for maximum EMI/RFI protection
Nickel-plated connectors with gold-plated contacts for excellent conductivity
Integral strain relief for long life
