Tripp Lite USB-C Dock with Removable Clip – For Laptops and Tablets, 4K HDMI, USB-A Hub, 60W PD Charging

QAR 289

Availability:

Out of stock

SKU : U442-DOCK15-S

  • Secure clip connects USB-C plug to tablet; clip removes easily for connecting to laptop
  • Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
  • Supports Ultra HD 4K resolutions up to 3840 x 2160 @ 30 Hz for crystal-clear video
  • Power Delivery port provides 20V 3A (60W) output for charging connected device
  • USB-A and memory card ports allow connection of flash drives and other peripherals
  • Secure clip connects USB-C plug to tablet; clip removes easily for connecting to laptop
  • Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
  • Supports Ultra HD 4K resolutions up to 3840 x 2160 @ 30 Hz for crystal-clear video
  • Power Delivery port provides 20V 3A (60W) output for charging connected device
  • USB-A and memory card ports allow connection of flash drives and other peripherals

QAR 289

Out of stock

UPC Code 037332251701
Product Type Docking Station
Technology HDMI; PD Charging; Stereo Audio; USB 2.0 (High Speed)
Host Connector USB C (MALE)

VIDEO

Number of Monitors Supported 1
Video Ports HDMI (FEMALE)
Video Ports Detail HDMI 1.4; HDCP 1.4
Resolutions Supported HDMI: 4K 30Hz (3840 x 2160)
Max Supported Video Resolution 3840 x 2160 @30Hz
Extended Mode No
Mirror Mode No
Max Supported Color Depth 36-bit Deep Color
Chroma Sub Sampling 4:2:0; 4:2:2; 4:4:4

AUDIO

Audio Ports 3.5MM (FEMALE)
Audio Ports Detail Mini stereo jack supports speakers, headphones or a microphone LPCM 7.1 Channel Surround Sound Audio
Audio Specification Stereo Audio

DATA

Data Ports (1) USB A (FEMALE)
Data Ports Detail (1) USB-A – USB 2.0

STORAGE

Card Slots SD (FEMALE); MICRO SD (FEMALE)
Card Slots Detail Both card readers can be used at the same time

INPUT

Bus Powered Yes

POWER

USB Power Delivery (PD) Charging Support Yes
USB Power Delivery (PD) Charging Specification 3.0

USER INTERFACE, ALERTS & CONTROLS

LED Indicators Power (White)

CHARGING

Charging Ports / Amps (1) 3A
Charging Ports USB-C: 60W (20V 3A) Power Delivery (PD 2.0)
Total Charging Watts 60

PHYSICAL

Color Gray
Material of Construction Aluminum
Unit Packaging Type Box
Unit Weight (kg) 0.07

ENVIRONMENTAL

Operating Temperature Range 32 to 122°F (0 to 50°C)
Storage Temperature Range -4 to 158°F (-20 to 70°C)
Operating Humidity Range 10% to 90% RH, Non-Condensing
Storage Humidity Range 0% to 95% RH, Non-Condensing
Power Provided to Connected Device(s) USB-C PD Port: 20V/3A (60W), USB2.0-A Ports: 5V/0.5A (2.5W)

CONNECTIONS

Side A – Connector 1 USB Type-C (MALE)
Side B – Connector 1 3.5MM (FEMALE)
Side B – Connector 2 USB A (FEMALE)
Side B – Connector 3 USB Type-C (FEMALE)
Side B – Connector 4 HDMI (FEMALE)
Side B – Connector 5 MICRO SD (FEMALE); SD (FEMALE)
Connector Plating Nickel

FEATURES & SPECIFICATIONS

HDCP Specification 1.4
USB Specification USB 2.0 (up to 480 Mbps)
Driver Required No

STANDARDS & COMPLIANCE

Certifications Tested to CE, FCC, RoHS, REACH

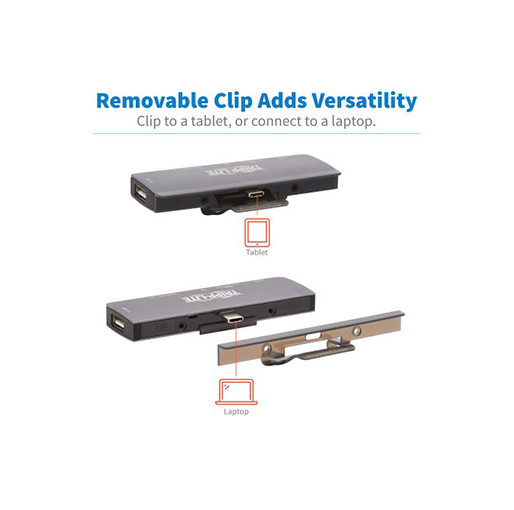

Clips to Your Device’s USB-C or Thunderbolt 3 Port to Create a Multiport Workstation
This USB-C docking station with PD Charging adds multiple ports to the USB-C or Thunderbolt 3 port on your laptop, tablet or smartphone. The U442-DOCK15-S allows you to transmit 4K video and digital audio to a large display, add external memory via USB drive or memory cards, and power and charge a PD Charging-compliant mobile device simultaneously. The USB-C plug clips securely to your tablet or smartphone to prevent it from becoming accidentally disconnected. The clip is removable, letting you connect the USB-C plug to a laptop as well.

Supports USB-C DisplayPort Alternate Mode for Converting Audio/Video Signals
By connecting the USB-C plug to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to an HDMI monitor, television or projector without installing special software drivers.

Transmits Crystal-Clear 4K Video and Digital Audio
The U442-DOCK15-S supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with multi-channel sound. Connect the HDMI port to your display using an HDMI cable (sold separately).

PD 3.0 Charging Port Charges High-Powered Devices via AC Wall Charger
The USB-C Power Delivery port supports power output up to 20V 3A (60W), which is sufficient for charging and powering the connected source device, such as an iPad Pro, Windows laptop or Android smartphone. Just connect the device’s AC wall charger to the USB-C PD port. Note: USB-C PD port does not support Quick Charge (QC).

Connects a Keyboard, Thumb Drive and Other Peripherals
The USB-A hub port accepts a USB peripheral, such as a flash drive, mouse, keyboard or printer. It supports USB 2.0 transfer rates up to 480 Mbps and is backward compatible with earlier USB generations. A 3.5 mm audio jack allows connection of a microphone, stereo earbuds or speakers to your USB-C device with a user-supplied cable. Note: Host must support USB OTG (On-the-Go).

Allows External Memory Access
The memory card slots support Micro SD and SD/MMC cards for transferring data to and from your connected computer, laptop or tablet. Both slots may be used at the same time.

Ready to Use Right from the Package, So You Can Plug and Play Immediately
The lightweight aluminum USB-C dock is specifically designed for use with laptops, tablets and other devices equipped with a USB-C or Thunderbolt 3 port. It requires no drivers or external power source. It’s about the size of a smartphone and weighs a mere 0.2 pounds, making it easy to pack into a pocket, backpack or laptop bag for multiport convenience wherever you go.

Typical Applications

  • Play video from your laptop or tablet on an HDMI display, such as an HDTV or projector
  • Save data from your laptop or tablet to a USB thumb drive or memory card
  • Charge and power a USB-C or Thunderbolt 3 device with its AC wall charger
  • Connect a USB microphone/headset to record a podcast or listen to music

Package Includes

  • U442-DOCK15-S USB-C Dock with Removable Clip
  • Owner’s manual

System Requirements

  • Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
  • Display device with HDMI input
