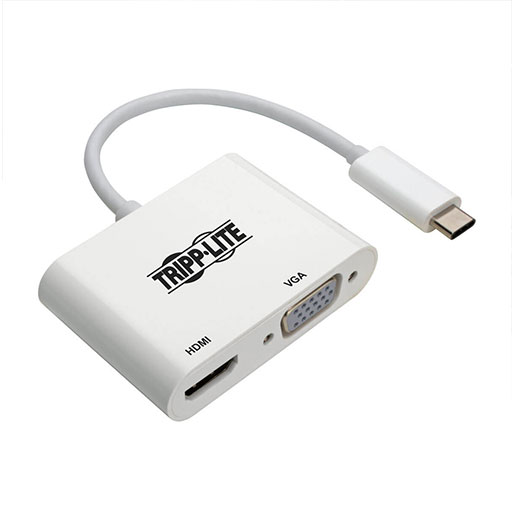

Tripp Lite USB-C Multiport Adapter, 4K HDMI, VGA, White

QAR 199

Availability:

Out of stock

SKU : U444-06N-HV4K

  • Transmits DisplayPort signals from sources supporting USB DisplayPort Alt Mode
  • Delivers HD picture quality at resolutions up to 1920 x 1080 (1080p) @60 Hz
  • USB-A port provides up to 5V 1.5A (7.5W) of fast-charging power
  • Connects you to a wired Ethernet network when no Wi-Fi is available
  • USB-C PD 3.0 port supports 20V 3A (60W) power output for charging host device
  • Transmits DisplayPort signals from sources supporting USB DisplayPort Alt Mode
  • Delivers HD picture quality at resolutions up to 1920 x 1080 (1080p) @60 Hz
  • USB-A port provides up to 5V 1.5A (7.5W) of fast-charging power
  • Connects you to a wired Ethernet network when no Wi-Fi is available
  • USB-C PD 3.0 port supports 20V 3A (60W) power output for charging host device

QAR 199

Out of stock

UPC Code 037332209160
Product Type Multiport Adapter
Technology Cat5/5e; Cat6; USB 3.1 (Gen 1); HDMI; USB; PD Charging
Host Connector USB C (MALE)
VIDEO
Number of Monitors Supported 1
Video Ports HDMI (FEMALE)
Video Ports Detail HDMI 1.3; HDCP 1.3
Resolutions Supported HDMI: 1080P 60Hz (1920 x 1080)
Max Supported Video Resolution HDMI: 1920 X 1080 (1080P) @ 60HZ
Extended Mode No
Mirror Mode No
DATA
Data Ports USB A (FEMALE)
Data Ports Detail USB-A – USB 3.2 Gen 1 (5 Gbps)
INPUT
Bus Powered Yes
Product Length (in.) 6
Product Length (cm.) 15.24
Product Length (ft.) 0.5
Product Length (m.) 0.15
BATTERY
Battery Charging (5V/1.5A Port) Yes
POWER
USB Power Delivery (PD) Charging Support Yes
USB Power Delivery (PD) Charging Specification 2.0
CHARGING
Charging Ports / Amps 1.5A; 3A
Charging Ports USB-C: 60W (20V 3A) Power Delivery (PD 2.0); USB-A: 5V 1.5A (7.5W)
Total Charging Watts 60
PHYSICAL
Color Black
Cable Jacket Rating VW-1
Material of Construction PVC, ABS
Unit Packaging Type Box
Unit Weight (kg) 0.04
ENVIRONMENTAL
Operating Temperature Range 32 to 113 F (0 to 45 C)
Storage Temperature Range 14 to 158 F (-10 to 70 C)
BTUs 9 BTU/Hr
Power Consumption (Watts) 2.6
Operating Humidity Range 10% to 85% RH, Non-Condensing
Storage Humidity Range 5% to 90% RH, Non-Condensing
COMMUNICATIONS
IEEE Standards Supported 802.3; 802.3u; 802.3az; 802.3x
CONNECTIONS
Ports 4
Side A – Connector 1 USB C (MALE)
Side B – Connector 1 HDMI (FEMALE)
Side B – Connector 2 USB 3.0 A (FEMALE)
Side B – Connector 3 USB Type-C (FEMALE)
Side B – Connector 4 RJ45 (FEMALE)
Connector Plating Nickel
FEATURES & SPECIFICATIONS
HDCP Specification 1.3
USB Specification USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
Driver Required No
Recommended Category Cable Cat5/Cat5e/Cat6 Cables
Auto MDIX Support Yes
Full Duplex Support Yes
Suspend Mode Support Yes
Remote Wakeup Support Yes
STANDARDS & COMPLIANCE
Certifications Tested to CE, FCC, RoHS, REACH

The U444-06N-HV4K USB 3.1 Gen 1 USB-C to HDMI/VGA 4K Adapter (M/2xF) helps you transmit digital audio and video from your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC to a high-definition television, monitor or projector. It’s an ideal tool for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen or streaming video for digital signage.

With a source device that also supports USB DisplayPort Alternate Mode, you can extend video from your primary display to another, duplicate the same video on both displays or change the second display to your primary.

The plug-and-play USB-C to HDMI adapter requires no software, drivers or external power. Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Then, connect the HDMI port or the HD15 port to your HDMI or VGA display using a compatible cable (sold separately).

The U444-06N-HV4K meets HDCP 1.4 specifications. It supports HDMI video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz and VGA video resolutions up to 1920 x 1200 (including 1080p) at 60 Hz. It also supports 36-bit Deep Color (12 bits per channel) and 300 MHz/3 Gbps per channel bandwidth (9 Gbps total). The HDMI port delivers rich 7.1-channel surround sound.

Features

Connects an HDMI or VGA Display to Your USB-C or Thunderbolt 3 Device

  • Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
  • Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
  • Supports 300 MHz/3 Gbps per channel bandwidth (9 Gbps total)
  • Meets HDCP 1.4 specifications

Common Applications

  • Extends video from your primary display to another
  • Duplicates the same video on 2 displays
  • Converts a secondary display to your primary display

Crystal-Clear Video and Digital Audio

  • Supports HDMI video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
  • Supports VGA video resolutions up to 1920 x 1200 (1080p) @ 60 Hz
  • Supports 36-bit Deep Color (12 bits per channel)
  • Supports 7.1-channel surround sound (HDMI only)

Built-In Cable with Reversible USB-C Connector

  • Fumble-free reversible USB-C plug connects in either direction for quick connection every time

Ready for Instant Use

  • Plug-and-play operation with no software, drivers or external power required
  • About the size of a credit card for easy carrying in a pocket, purse or laptop bag
  • Backward compatible with non-4K displays

System Requirements

  • Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
  • Display device with HDMI or VGA input

Package Includes

  • U444-06N-HV4K USB-C Multiport Adapter
  • Owner’s manual
