|Product Type||Multiport Adapter|
|Technology||Cat5/5e; Cat6; USB 3.1 (Gen 1); HDMI; USB; PD Charging|
|Host Connector||USB C (MALE)|
|Number of Monitors Supported||1|
|Video Ports||HDMI (FEMALE)|
|Video Ports Detail||HDMI 1.3; HDCP 1.3|
|Resolutions Supported||HDMI: 1080P 60Hz (1920 x 1080)|
|Max Supported Video Resolution||HDMI: 1920 X 1080 (1080P) @ 60HZ|
|Data Ports||USB A (FEMALE)|
|Data Ports Detail||USB-A – USB 3.2 Gen 1 (5 Gbps)|
|Product Length (in.)||6|
|Product Length (cm.)||15.24|
|Product Length (ft.)||0.5|
|Product Length (m.)||0.15|
|Battery Charging (5V/1.5A Port)||Yes|
|USB Power Delivery (PD) Charging Support||Yes|
|USB Power Delivery (PD) Charging Specification||2.0|
|Charging Ports / Amps||1.5A; 3A|
|Charging Ports||USB-C: 60W (20V 3A) Power Delivery (PD 2.0); USB-A: 5V 1.5A (7.5W)|
|Total Charging Watts||60|
|Cable Jacket Rating||VW-1|
|Material of Construction||PVC, ABS|
|Unit Packaging Type||Box|
|Unit Weight (kg)||0.04|
|Operating Temperature Range||32 to 113 F (0 to 45 C)|
|Storage Temperature Range||14 to 158 F (-10 to 70 C)|
|Power Consumption (Watts)||2.6|
|Operating Humidity Range||10% to 85% RH, Non-Condensing|
|Storage Humidity Range||5% to 90% RH, Non-Condensing|
|IEEE Standards Supported||802.3; 802.3u; 802.3az; 802.3x|
|Side A – Connector 1||USB C (MALE)|
|Side B – Connector 1||HDMI (FEMALE)|
|Side B – Connector 2||USB 3.0 A (FEMALE)|
|Side B – Connector 3||USB Type-C (FEMALE)|
|Side B – Connector 4||RJ45 (FEMALE)|
|FEATURES & SPECIFICATIONS|
|USB Specification||USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)|
|Recommended Category Cable||Cat5/Cat5e/Cat6 Cables|
|Auto MDIX Support||Yes|
|Full Duplex Support||Yes|
|Suspend Mode Support||Yes|
|Remote Wakeup Support||Yes|
|STANDARDS & COMPLIANCE|
|Certifications||Tested to CE, FCC, RoHS, REACH|
Tripp Lite USB-C Multiport Adapter with HDMI, USB 3.0 Port, Gbe, 60W PD Charging, HDCP, Black
Order now & Get it delivered Tomorrow!!
Mini Docking Station Turns Your Device’s USB-C or Thunderbolt 3 Port into a Multiport Workstation
This USB-C to HDMI cable expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC’s USB-C or Thunderbolt 3 port. It’s ideal for transmitting digital audio and 1080p video to a large display, adding a thumb drive or other USB peripheral, powering and charging a PD Charging-compliant mobile device, and connecting to a Gigabit Ethernet network—all at the same time.
Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video DisplayPort and USB Signals
With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.
Transmits Crystal-Clear 1080p Video and Digital Audio to an HDMI Display
To send digital audio and HD video to an HDMI television, projector or monitor, connect the HDMI port to the display using an HDMI cable (sold separately). The HDMI port supports HD video resolutions up to 1920 x 1080 (1080p) at 60 Hz.
Connects a USB Peripheral
The USB-A port accepts USB peripherals, such as a flash drive, mouse, keyboard or printer. It supports fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps and is backward compatible with USB 2.0 and USB 1.1 devices. The port provides up to 5V/1.5A (7.5W) of fast-charging power to mobile devices. Note: Host must support USB OTG (On-the-Go).
Charges a Connected Device
The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the U444-06N-HGUB-C is connected to. Connect the device’s AC wall charger to the USB-C PD port, which supports power input up to 20V 3A (60W). Note: USB-C PD port does not support Quick Charge (QC).
Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
Built-In USB-C Cable Connects in Either Direction

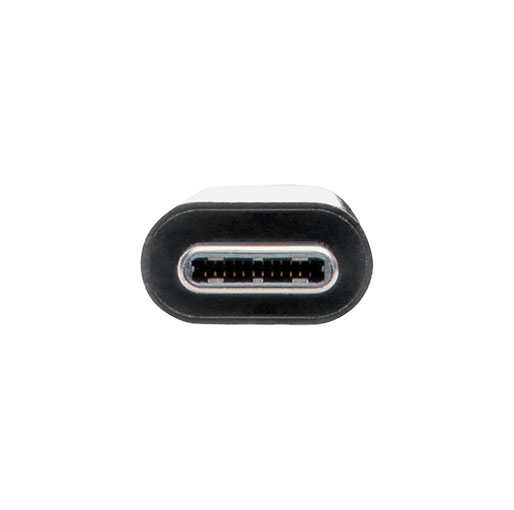

Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
Ready to Use Right Out of the Package
The plug-and-play USB 3.1 to HDMI adapter requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go.
- Play video from your laptop or PC on an HDMI display, such as an HDTV or projector
- Access a wired Ethernet network in a location with no or spotty Wi-Fi
- Transfer data from a USB flash drive or connect your computer to a USB printer or other USB device
- Charge your connected notebook or laptop by connecting its wall charger to the USB-C PD Charging port
- U444-06N-HGUB-C USB-C Multiport Adapter, Black
- Owner’s manual
- Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
- Display device with HDMI input (HDMI port)
