Tripp Lite USB-C to Displayport 4K 60Hz Adapter, Black

Availability:

Out of stock


  • Supports USB DisplayPort Alternate Mode for transmitting audio/video
  • Supports UHD video resolutions up to 4K x 2K (4096 x 2160) @ 60 Hz, as specified in HDMI 2.0
  • Supports 7.1-channel surround sound
  • Reversible USB-C plug connects in either direction
  • Plug-and-play operation with no software or drivers required

QAR 119

Out of stock

Order now & Get it delivered Today!!

UPC Code037332203366
TechnologyHDMI; USB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1)

VIDEO

Max Supported Video ResolutionHDMI: 4096 X 2160 (4K X 2K) @ 60HZ

AUDIO

Audio Specification7.1 Channel Surround Sound

INPUT

Bus PoweredYes
Product Length (in.)6
Product Length (cm.)15.24
Product Length (ft.)0.5
Product Length (m.)0.15

BATTERY

Battery Charging (5V/1.5A Port)No

PHYSICAL

ColorBlack
Cable Jacket RatingVW-1
Material of ConstructionABS
Shipping Dimensions (hwd / cm)2.69 x 14.50 x 7.62
Shipping Weight (kg)0.05
Unit Packaging TypeBox
Unit Weight (kg)0.02

ENVIRONMENTAL

Operating Temperature Range-4 to 158 F (-20 to 70 C)
Storage Temperature Range-4 to 185 F (-20 to 85 C)
Relative Humidity20% to 80% RH, Non-Condensing
BTUs2.3 BTU/Hr
Power Consumption (Watts)0.68

CONNECTIONS

Ports1
Side A – Connector 1USB C (MALE)

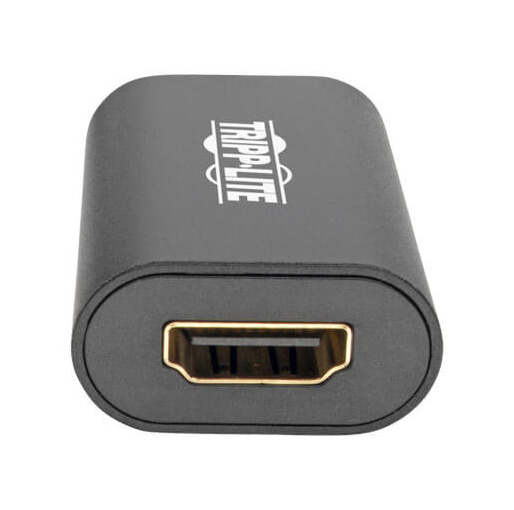

Side B – Connector 1HDMI (FEMALE)
Connector PlatingNickel
Contact PlatingGold

FEATURES & SPECIFICATIONS

HDCP Specification2.2
USB SpecificationUSB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
Driver RequiredNo

STANDARDS & COMPLIANCE

CertificationsTested to CE, FCC, RoHS, REACH

Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode. Ideal for giving video presentations, editing multiple documents or streaming video for digital signage. Meets HDCP 2.2 specifications.

Common Applications

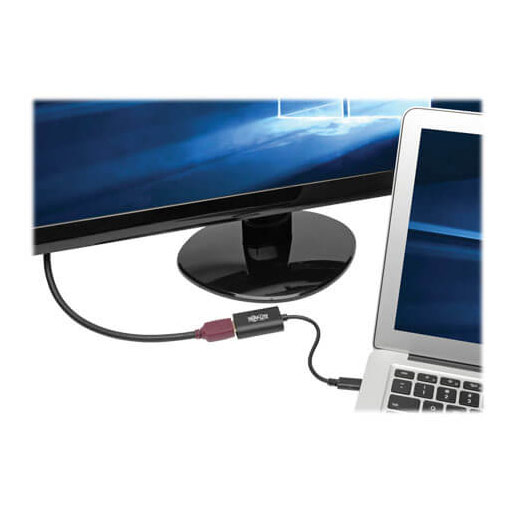

  • Extends video from your primary display to another
  • Duplicates the same video on 2 displays
  • Converts a secondary display to your primary display

Crystal-Clear 4K Video and Digital Audio

  • Supports UHD video resolutions up to 4K x 2K (4096 x 2160) @ 60 Hz, as specified in HDMI 2.0
  • Supports 24-bit Deep Color (8 bits per channel)
  • Supports 7.1-channel surround sound
  • Supports per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)

Built-In Cable with Reversible USB-C Connector

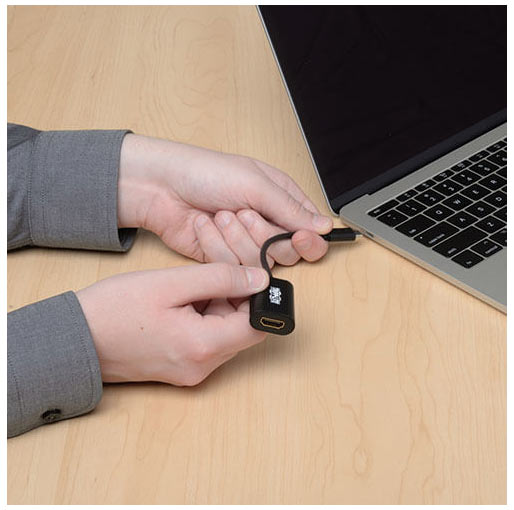

  • Fumble-free reversible USB-C plug connects in either direction for quick connection every time

Ready for Instant Use

  • Plug-and-play operation with no software, drivers or external power required

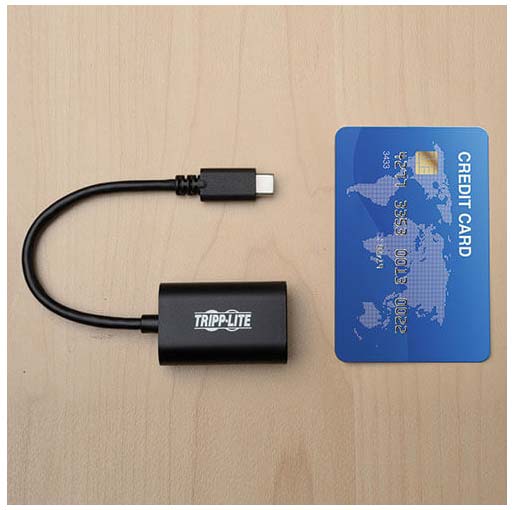

  • Half the footprint of a credit card for easy carrying in a pocket, purse or laptop bag
  • Backward compatible with non-4K displays

System Requirements

  • Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
  • Display device with HDMI input

Package Includes

  • U444-06N-HD4K6B USB 3.1 Gen 1 USB-C to HDMI 4K Adapter (M/F)
  • Owner’s manual
