Tripp Lite USB-C to VGA Active Adapter Cable (M/M), Black, 16 ft. (4.9 m)

QAR 179

Availability:

In stock

SKU: U444-016-V

Categories: ,

  • Supports USB DisplayPort Alternate Mode for transmitting video
  • Supports HD video resolutions up to 1920 x 1200 (1080p) @ 60 Hz
  • Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
  • Reversible USB-C plug connects in either direction
  • Plug-and-play operation with no software or drivers required
  • Note: This cable is uni-directional. Will only work from a USB-C port to VGA port
  • Supports USB DisplayPort Alternate Mode for transmitting video
  • Supports HD video resolutions up to 1920 x 1200 (1080p) @ 60 Hz
  • Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps
  • Reversible USB-C plug connects in either direction
  • Plug-and-play operation with no software or drivers required
  • Note: This cable is uni-directional. Will only work from a USB-C port to VGA port

QAR 179

In stock

Order By Call

Order now & Get it delivered Today!!

UPC Code 037332193889
Product Type Passive
Technology VGA/SVGA

VIDEO

Max Supported Video Resolution VGA: 1920 X 1200 (1080P) @ 60HZ

INPUT

Bus Powered Yes
Product Length (in.) 192
Product Length (cm.) 487.68
Product Length (ft.) 16
Product Length (m.) 4.88

BATTERY

Battery Charging (5V/1.5A Port) No

POWER

Power Consumption (Watts) 0.6

PHYSICAL

Material of Construction PVC, ABS
Color Black
Cable Jacket Color Black
Cable Jacket Rating VW-1
Cable Length (ft.) 16
Shipping Dimensions (hwd / in.) 9.00 x 5.60 x 2.90
Shipping Weight (lbs.) 0.50
Unit Packaging Type Polybag
Unit Weight (lbs.) 0.76

ENVIRONMENTAL

Operating Temperature Range 32 to 113 F (0 to 45 C)
Storage Temperature Range 14 to 158 F (-10 to 70 C)
BTUs 2.1 BTU/Hr
Operating Humidity Range 10% to 85% RH, Non-Condensing
Storage Humidity Range 5% to 90% RH, Non-Condensing

CONNECTIONS

Side A – Connector 1 USB C (MALE)
Side B – Connector 1 HD15 (MALE)
Connector Plating Gold

FEATURES & SPECIFICATIONS

USB Specification USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
Driver Required No
UASP Support No
Auto MDIX Support No
Full Duplex Support No
Suspend Mode Support No
Remote Wakeup Support No
IP68 Rated No

STANDARDS & COMPLIANCE

Product Compliance RoHS; CE (Europe); REACH; FCC (USA)

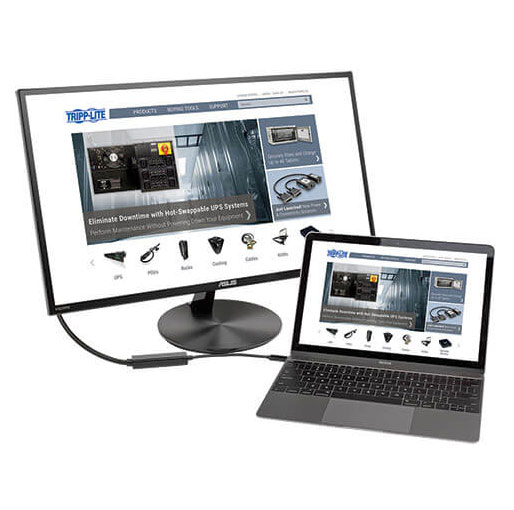

The U444-016-V USB 3.1 Gen 1 USB-C to VGA Adapter Cable (M/M) helps you transmit video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to a VGA-enabled television, monitor or projector. It’s an ideal tool for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen, or streaming video for digital signage in crystal-clear 1080p.

With a source device that also supports USB DisplayPort Alternate Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.

The plug-and-play U444-016-V requires no software, drivers or external power. Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Then, connect the VGA plug to your display.

This 16-ft. (4.88 m) cable supports HD video resolutions up to 1920 x 1200 (including 1080p) at 60 Hz and 36-bit Deep Color (12 bits per channel). It also supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps. Foil and braid shielding protects against EMI/RFI line noise that can distort or destroy data.

Features

Connects a VGA Display to Your USB-C or Thunderbolt 3 Device

  • Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
  • Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
  • Supports USB 3.1 Gen 1 data transfer rates up to 5 Gbps

Common Applications

  • Extends video from your primary display to another
  • Duplicates the same video on 2 displays
  • Converts a secondary display to your primary display

Crystal-Clear 1080p Video

  • Supports HD video resolutions up to 1920 x 1200 (1080p) @ 60 Hz
  • Supports 36-bit Deep Color (12 bits per channel)

Reversible USB-C Connector

  • Fumble-free reversible USB-C plug connects in either direction for quick connection every time

Premium Construction

  • Gold-plated connectors and contacts for maximum conductivity and minimum data loss
  • Foil and braid shielding protects against EMI/RFI line noise that can distort or destroy data
  • Integral strain relief helps cable and connectors move freely without stress or cracking
  • Durable PVC jacket designed to last a long time

Ready for Instant Use

  • Plug-and-play operation with no software, drivers or external power required
  • 16-ft. (4.88 m) length allows adaptable placement of source and display devices
  • Backward compatible with non-1080p displays

System Requirements

  • Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode
  • Display device with VGA input

Package Includes

  • U444-016-V USB 3.1 Gen 1 USB-C to VGA Adapter Cable (M/M), 16-ft. (4.88 m)
