Zebra ZD220t Barcode Label Printer

QAR 999

SKU: PRN-ZD220T
MFR SKU: ZD220T
Categories: ,

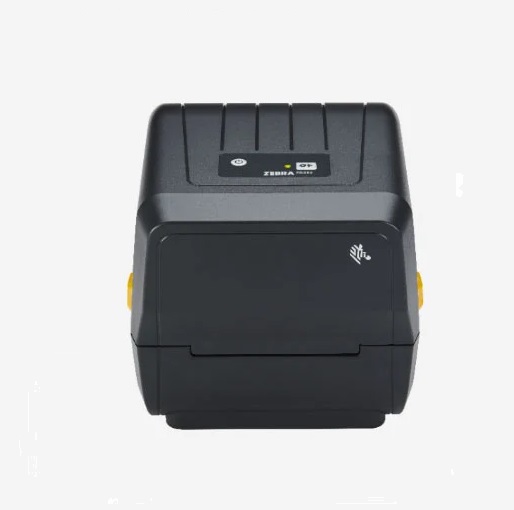

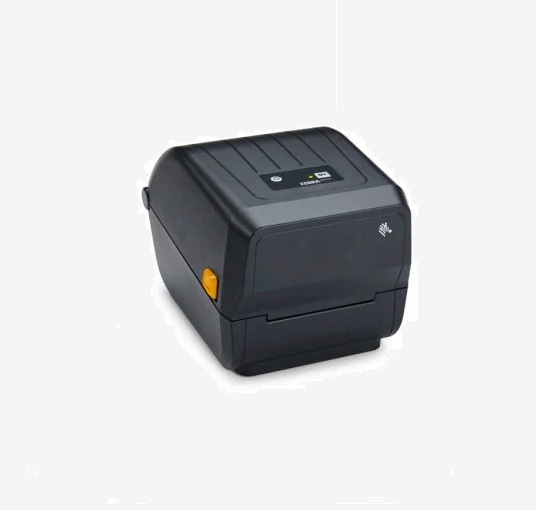

Zebra’s ZD220 Thermal transfer Desktop Printer is designed for customers who will benefit from a lower price point and a modest feature set requiring minimal training-and who nevertheless appreciate the benefits of Zebra quality. The ZD220t printers are 4-inch printers that boast solid construction, are a great out-of-the-box experience, provide easy operation and the basic features today’s customers need to keep workflows moving. The ZD220 Series printers are available in direct thermal or thermal transfer models and will continue to deliver a cost-effective and dependable print experience for years to come. The-ZD220t, a direct replacement for the GC420, is available with USB connectivity only and an optional peeler. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status

Zebra’s ZD220 Thermal transfer Desktop Printer is designed for customers who will benefit from a lower price point and a modest feature set requiring minimal training-and who nevertheless appreciate the benefits of Zebra quality. The ZD220t printers are 4-inch printers that boast solid construction, are a great out-of-the-box experience, provide easy operation and the basic features today’s customers need to keep workflows moving. The ZD220 Series printers are available in direct thermal or thermal transfer models and will continue to deliver a cost-effective and dependable print experience for years to come. The-ZD220t, a direct replacement for the GC420, is available with USB connectivity only and an optional peeler. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status

QAR 999

Order By Call

Order now & Get it delivered Today!!

SPECIFICATIONS





Standard Features



• Thermal Transfer or Direct Thermal print method
• ZPL and EPL programming languages
• Single LED status indicator
• Single button for feed/pause
• USB connectivity
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR qualified
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner
• Two-year standard warranty



Physical Characteristics



Dimension Thermal Transfer:
10.5 in. L x 7.75 in. W x 7.5 in. H
267 mm L x 197 mm W x 191 mm H
Direct Thermal:
8.6 in. L x 6.9 in. W x 5.9 in. H
220 mm L x 176 mm W x 151 mm H
Weight 2.5 lbs./1.1 kg



Printer Specifications



Resolution 203 dpi/8 dots per mm
Memory 128 MB Flash; 128 MB SDRAM
Maximum Print Width 4.09 in./104 mm
Print Speed 4 in./102 mm per second
Media Sensors
  • Movable black mark sensor, limited range from center to left side
  • Fixed off-center gap sensor
Firmware ZPL II; EPL 2; XML



Media and Ribbon Characteristics



Maximum Label Length 39.0 in./991 mm
Media Width 1.00 in./25.4 mm to 4.4 in./112 mm
Media Roll Size 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm)
Thickness 0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)
Media Types Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
Ribbon Outside Diameter 1.34 in./34 mm (74 m)
Maximum Ribbon Length 244 ft. (74 m)
Ribbon Ratio 1:1 media to ribbon (74 m)
Ribbon Width 1.33 in./33.8 mm ~ 4.3 in./109.2 mm
Ribbon Core I.D. 74 Meter ribbon 0.5 in./12.7 mm



























Operating Characteristics



Operating Temp. 40° to 105° F/4.4° to 41° C
Storage Temp. -40° to 140° F/-40° to 60° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Electrical Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified



Operations and Accessories



Media Handling Factory installed peeler
Real Time Clock None



Fonts/Graphics/Symbologies



Bar Code Ratios 2:1 and 3:1
1D Bar Codes Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
2D Bar Codes Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
Fonts and Graphics 16 resident expandable ZPL II bitmap fonts
Two resident scalable ZPL fonts
Five resident expandable EPL2 fonts
Native open-type font support
Unicode compliant for multi-language, on demand thermal printing
50 MB user available non-volatile memory,  8 MB user available SDRAM



Printers Supplies



Keep your Zebra printer up and running with genuine Zebra printer supplies, available directly from Zebra.



Regulatory



  • IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus
  • CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM

ZD220 4-inch Value Desktop Printer

Reliable Operation, Quality Construction, Unsurpassed Value

Not all printers are created equally, especially basic models. To reduce costs, value printers are often constructed using less expensive components. Many fail to perform under more demanding duty cycles, create delays and downtime for repairs, and require replacement after only a few years of use. Instead of conserving budget, customers are left with greater expense and hassle.



Zebra does it differently.  The ZD220 desktop printer gives you reliable operation and basic features at an affordable price—both  at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction for added durability. And, it is ENERGY STAR® qualified to reduce your operational expenses. Built to last for years, the ZD220 provides an outstanding return on your investment.



Get Printing Quickly

The ZD220 is simple to install and begin printing – right out of the box. USB connectivity allows for universal interoperability. Easily replace legacy printers using ZPL, EPL or non-Zebra command languages. And, media changes are expedited with Zebra’s OpenACCESS™ clamshell design.  It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.



Basic Features for Simple Operation

This 4-inch printer produces labels quickly, up to 4” per second, to keep your workflows moving. Increased memory allows you to store more fonts and graphics.  A single LED indicator and single button for feed/pause make it easy to operate and identify printer status.

Choose from direct thermal or thermal transfer models, and add an optional factory-installed peeler. The ZD220 features a core set

of Print DNA software applications, powered by Link-OS® Basic, to deliver a cost-effective and dependable print experience.

Backed by Zebra’s Worldwide Service and Support

Access support quickly anywhere around the globe through Zebra’s trusted network of more than 10,000 partners. Avoid costly repairs and downtime with an affordable service plan that’s tailored to the coverage you need for your desktop printer. Zebra’s OneCare SV provides the right level of service at the right price. It gives you two years of coverage for normal wear and tear, double the standard warranty coverage, priority turnaround times at the depot and more—all for a tiny fraction of the cost of a single repair.



Consistently Exceptional Zebra Certified Supplies

Printing supplies can impact everything from printhead lifespan to operational efficiency. That’s why we design, produce and

rigorously pretest our own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer—and peace of mind for you. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies.

The ZD220 gives you the quality and reliability you expect from Zebra. And, it helps you conserve costs now, and for years to come. Gain your competitive edge with Zebra.
