Network, Networking Devices, PDU

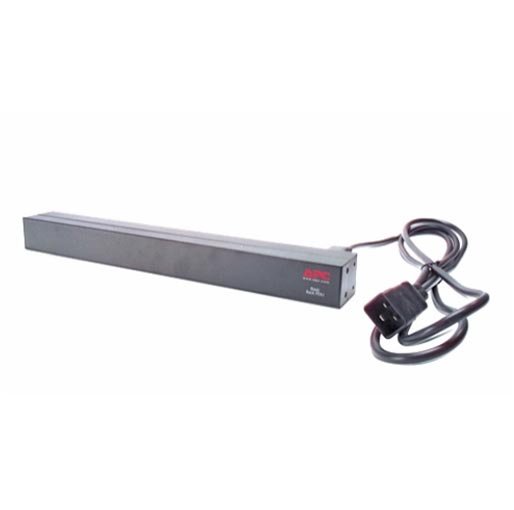

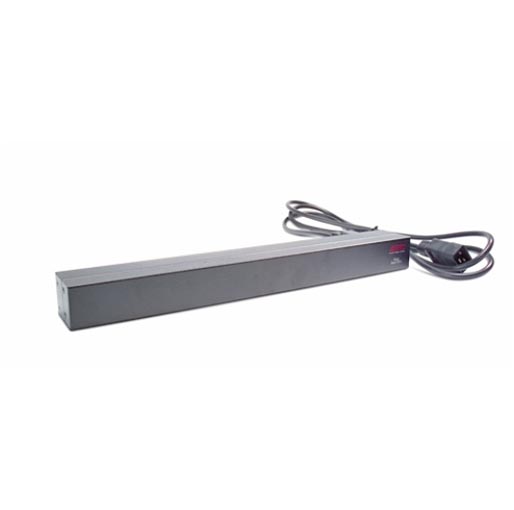

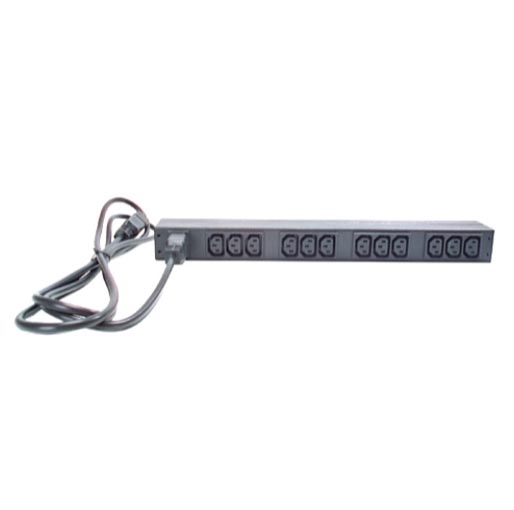

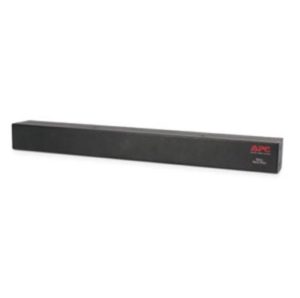

APC By Schneider Electric AP9565 Rack PDU, Basic, 1U, 16A, 208/230V, (12)C13
Availability:
In stock
- Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets.
- Having a variety of inputs and outputs allow users to adapt to varying power requirements.
- APC offers units that bring up to 14.4kW using a single branch whip.
- Cord Length 8.2ft (2.5meters)
QAR 799
In stock
Order now & Get it delivered Today!!
| Brand | APC |
| Rack Height | 1U |
| Output Connections | (12) IEC 320 C13 (12) IEC 60320 C13 |
| Nominal Output Voltage | 208V, 230V |
| Nominal Input Voltage | 200V, 208V, 230V |
| Input Connections | IEC 60320 C20 |
| Cord Length | 8.2ft (2.5meters) |
| Output | |
| Maximum Total Current Draw | 16 |
| Input | |
| Input frequency | 50/60 Hz |
| Number of Power Cords | 1 |
| Load Capacity | 3680VA |
| Maximum Input Current | 16A |
| Physical | |
| Maximum Height | 1.7inches (44MM, 4.4CM) |
| Maximum Width | 17.6inches (447MM, 44.7CM) |
| Maximum Depth | 2.2inches (57MM, 5.7CM) |
| Net Weight | 4.52lbs. (2.05KG) |
| Shipping weight | 8.02lbs. (3.64KG) |
| Shipping Height) | 2.8inches (70MM, 7.0CM) |
| Shipping Width | 18.3inches (464MM, 46.4CM) |
| Shipping Depth | Â 9.0inches (229MM, 22.9CM) |
| Color | Â Black |
| Environmental | |
| Operating Temperature | 32 – 113 °F (0 – 45 °C) |
| Operating Relative Humidity | 0 – 95 % |
| Operating Elevation | 0 – 10000ft (0 – 3048meters) |
| Storage Temperature | -25 – 65 °C |
| Storage Elevation | 0 – 50000ft (0 – 15240meters) |
| Conformance | |
| Approvals | CE, CUL listed, Queensland Australia, UL 60950, UL listed, VDE |
| Sustainable Offer Status | |
| RoHS | Compliant |
| PEP | Available in Documentation tab |
| EOLI | Available in Documentation tab |
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most – in the racks near the equipment.
