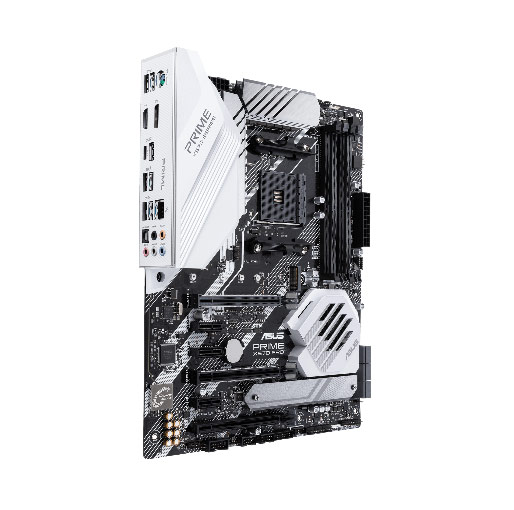

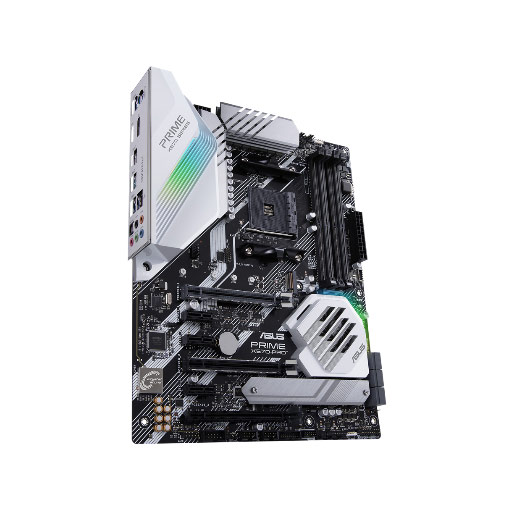

ASUS PRIME X570-PRO AMD AM4 ATX Motherboard with PCIe 4.0, 14 DrMOS Power Stages, DDR4 4400MHz, Dual M.2, HDMI, SATA 6Gb/s, USB 3.2 Gen 2 Front-Panel Connector And Aura Sync RGB Lighting

QAR 1,499

Availability:

Out of stock

SKU : MB-ASUS-PRIME-X570-PRO • MFR SKU : 90MB11B0-M0EAY0

  • AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors
  • Enhanced power solution: 12+2 DrMOS power stages, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
  • 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
  • Industry-leading cooling options: Comprehensive controls for fans and dual pump headers, via Fan Xpert 4 or the acclaimed UEFI
  • M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds and enhanced reliability
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB 3.2 Gen 2 ports and front-panel header
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips
  • AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors
  • Enhanced power solution: 12+2 DrMOS power stages, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
  • 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
  • Industry-leading cooling options: Comprehensive controls for fans and dual pump headers, via Fan Xpert 4 or the acclaimed UEFI
  • M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds and enhanced reliability
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB 3.2 Gen 2 ports and front-panel header
  • Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips

QAR 1,499

Out of stock

CPU AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors

* Refer to www.asus.com for CPU support list

* Due to CPU limitation, CPU cores supported varies by processors.

Chipset AMD X570
Memory 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* The maximum memory capacity supported vary depending on the CPU you installed.

Graphic Integrated Graphics in AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 G-Series Desktop Processors

Multi-VGA output support : HDMI/DisplayPort   ports

– Supports HDMI 2.0b with maximum resolution of 4096  x 2160  @ 60  Hz

– Supports DisplayPort 1.2 with max. resolution 4096  x 2160  @ 60  Hz

Multi-GPU Support AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors>

Supports NVIDIA 2-Way SLI® Technology

Supports AMD 3-Way CrossFireX™ Technology

AMD Ryzen™ 3000 G-Series/ 2000 G-Series Desktop Processors

Supports AMD 2-Way CrossFireX™ Technology

Expansion Slots 3 x PCIe 4.0 x1

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

2 x PCIe 4.0 x16 (x16 or dual x8)

AMD RyzenTM 4000 G-Series / 2000 Series Processors

2 x PCIe 3.0 x16 (x16 or dual x8)

AMD RyzenTM 3000 G-Series / 2000 G-Series Processors

1 x PCIe 3.0 x16 (x8 mode)

AMD X570 chipset

1 x PCIe 4.0 x16 (max at x4 mode)

Storage AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

AMD X570 chipset :

1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

LAN Intel® I211-AT

ASUS LAN Guard

Audio Realtek S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3

– Impedance sense for front and rear headphone outputs

– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

– Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

– Front panel audio connector (AAFP)

– Supports up to 32-Bit/192kHz playback *1

Audio Feature :

– Optical S/PDIF out port(s) at back panel

– Audio Shielding

– Dedicated audio PCB layers

– Premium Japanese-made audio capacitors

– EMI protection cover to prevent electrical noise to affect the amplifier quality

USB Ports AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :

4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, Type-A)

AMD X570 chipset :

1 x USB 3.2 Gen 2 front panel connector port(s)

AMD X570 chipset :

4 x USB 3.2 Gen 2 port(s) (4 at back panel, teal blue, 3 x Type-A+1 x Type-C)

AMD X570 chipset :

2 x USB 3.2 Gen 1 port(s) (2 at mid-board)

AMD X570 chipset :

4 x USB 2.0 port(s) (4 at mid-board)

Special Features 5-Way Optimization by Dual Intelligent Processors 5

– 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App

DIGI+ VRM: Digital power design with Dr. MOS

EPU Guidance

TPU Insight

Fan Xpert4

– Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control

Turbo App: system performance tuning, network priority, and audio scene configuration for selected applications.

ASUS 5X Protection III :

– ASUS SafeSlot Core: Fortified PCIe Slot prevents damage

– ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

– ASUS Overvoltage Protection: World-class circuit-protecting power design

– ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

– ASUS DIGI+ VRM – Digital power design with Dr. MOS

– ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention

– ASUS ESD Guards – Enhanced ESD protection

ASUS SafeSlot – Protect your graphics card Investment

ASUS OptiMem:

– Improved DDR4 Stability

AURA :

– Aura Lighting Control

– Aura RGB Strip Headers

– Addressable Gen 2 Header

ASUS Exclusive Features :

– AI Suite 3

– Ai Charger

– Turbo LAN

– Armoury Crate

– Pre-mounted I/O Shield

ASUS Quiet Thermal Solution :

– Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink

– ASUS Fan Xpert 4

ASUS EZ DIY :

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

ASUS Q-Design :

– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

– ASUS Q-Slot

– ASUS Q-DIMM

– ASUS Q-Connector

Back I/O Ports 1 x PS/

2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

1 x Optical S/PDIF out

5 x Audio jack(s)

4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A

3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)

1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)

Internal I/O Ports 2 x Aura RGB Strip Headers

1 x Addressable Gen 2 header(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)

1 x SPI TPM header

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x CPU OPT Fan connector(s) (1 x 4 -pin)

3 x Chassis Fan connector(s) (3 x 4 -pin)

1 x PCH_FAN (1 x 4 -pin)

1 x AIO_PUMP connector (1 x 4 -pin)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Power-on button(s)

1 x Clear CMOS jumper(s)

1 x Node Connector(s)

1 x Water Pump header (4-pin)

1 x T_Sensor Connector

1 x USB 3.2 Gen 2 (up to 10Gbps) connector

1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Accessories User´s manual

2 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

1 x Q-connector(s) (1 in 1)

1 x Extension cable for Addressable LED

BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Operating System Windows® 10 64-bit
Form Factor ATX Form Factor

12.0  inch x 9.6  inch ( 30.5  cm x 24.4  cm )

Dressed in a professional attire, the Prime X570 series cater to users with serious pursuits in mind, who prefer to put their Ryzen™ processors to more productive use. Prime X570, known for its all-around specs and ASUS signature features, includes a wide range of tuning options for accessible performance.

Hosting the latest Ryzen processor with increased number of cores and bandwidth, the Prime X570 series is ready for action with stable power, intuitive cooling and flexible transfer options. It provides all the fundamentals to increase your everyday productivity.

Power delivery enhancements
The 3rd Gen AMD Ryzen™ processors boast more cores and bandwidth, demanding more power than typical desktop CPUs. Prime X570-Pro is geared up for the demands of these high-core-count processors, offering a stable power to ensure optimal performance.

5-Way Optimization

One-click overclock and cooling, done!
One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.
