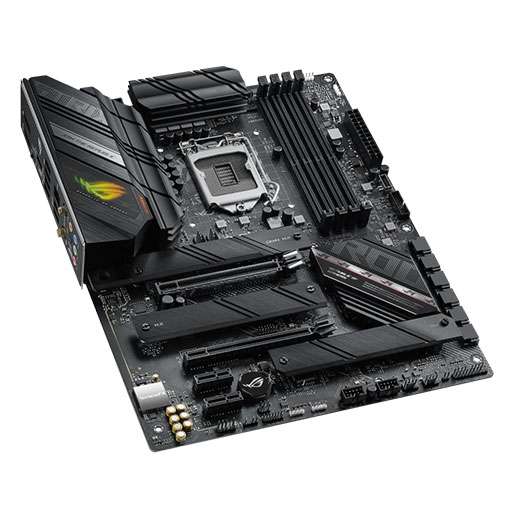

ASUS ROG STRIX B560-F GAMING WIFI (INTEL B560) LGA 1200 ATX Motherboard

QAR 989

Availability:

Out of stock


  • Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™, 10th Gen Intel Core, Pentium® Gold and Celeron® processors
  • Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Smooth Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, three M.2 slots and USB 3.2 Gen 2×2 USB Type-C®
  • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ and Q-LED
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
  • Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS® Sound Unbound and Sonic Studio III
  • Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™, 10th Gen Intel Core, Pentium® Gold and Celeron® processors
  • Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Smooth Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, three M.2 slots and USB 3.2 Gen 2×2 USB Type-C®
  • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ and Q-LED
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
  • Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS® Sound Unbound and Sonic Studio III

QAR 989

Out of stock

CPU Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset B560
Memory Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
Graphics 1 x DP1.4
Expansion Slots Intel® 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot(s)
– Intel® 11th processors support PCIe 4.0 x16 mode
– Intel®10th processors support PCIe 3.0 x16 mode

Intel® B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)*
2 x PCIe 3.0 x1 slots

Storage Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
– Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.

Intel® B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)**
6 x SATA 6Gb/s ports

Wireless & Bluetooth Intel® Wi-Fi 6
USB Rear USB:Total 9 ports

1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
2 x USB 3.2 Gen 2 port (2 x Type-A)
2 x USB 3.2 Gen 1 port (2 x Type-A)
4 x USB 2.0 port(s) (3 x Type-A, 1 x audio USB Type-C®)
1 x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear audio USB Type-C® port
– Premium Japanese audio capacitors
– Audio cover
Back Panel I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
2 x USB 3.2 Gen 1 port(s) (2 x Type-A)
4 x USB 2.0 port(s) (3 x Type-A, 1 x audio USB Type-C®)
1 x HDMI™ port
1 x DisplayPort
1 x ASUS Wi-Fi Module
1 x Intel® I225-V 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack™ button
Special Features Extreme Engine Digi+
– 5K Black Metallic CapacitorsASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-SlotASUS Thermal Solution
– M.2 heatsinkASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– ProCool
– Pre-mounted I/O shield
– SafeSlotAURA Sync
– AURA RGB header(s)
– Addressable Gen 2 RGB header(s)
Software Features ROG Exclusive Software
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
– Overwolf
– Anti-virus softwareASUS Exclusive SoftwareArmoury Crate
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA Sync
– Two-Way AI Noise CancelationAI Suite 3
– Performance And Power Saving UtilityTurboV EVO
EPU
DIGI+ VRMFan Xpert 4
– EZ update

MyAsus
WinRAR
DAEMON Tools
UEFI BIOS

ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
4 x SATA 6Gb/s cables
1 x ROG audio USB Type-C® cable
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
2 x M.2 Rubber Packages
1 x ROG key chain
1 x ROG STRIX stickers
1 x ROG STRIX thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System Windows 10 64bit
Form Factor ATX
30.5cm x 24.4cm

ROG STRIX B560-F GAMING WIFI
Intel® B560 LGA 1200 ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Intel® 2.5 Gb Ethernet, three M.2 slots with heatsinks, USB 3.2 Gen 2×2 USB Type-C®, SATA and Aura Sync RGB lighting

  • Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™, 10th Gen Intel Core, Pentium® Gold and Celeron® processors
  • Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
  • Smooth Networking: On-board Intel® WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, three M.2 slots and USB 3.2 Gen 2×2 USB Type-C®
  • DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ and Q-LED
  • Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
  • Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS® Sound Unbound and Sonic Studio III
  • Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard

ROG Strix B560-F Gaming WiFi delivers everything you need to create a well-balanced gaming PC utilizing 11th Generation Intel® Core™ processors. It’s primed for the latest graphics cards, high-speed storage setups, and networking standards, and then further boosted with AI-infused utilities that have trickled down from top-tier ROG motherboards to take performance well beyond mainstream. As a finishing touch, futuristic aesthetics accented by customizable RGB lighting allow you to make the build uniquely yours.

POTENTIAL, REALIZED
Robust power delivery and comprehensive cooling features ensure exceptional performance, while AI-powered enhancements optimize network settings and improve in-game communication — all to help you maximize the full potential of your rig.

TEAMED POWER STAGES
8+2 power stages combine high-side and low-side MOSFETS and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand.

ALLOY CHOKES AND CAPACITORS
Superior chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

PROCOOL POWER CONNECTOR
The ASUS ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

DIGI+ POWER CONTROL
The built-in Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU.

SIX-LAYER PCB
The PCB design quickly dissipates heat around the VRM to improve overall system stability and provide the CPU with more overclocking headroom.

TWO-WAY AI NOISE CANCELATION
This utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio, while preserving vocals at the same time. Distracting keyboard clatter, mouse clicks and other ambient noises are intelligently neutralized so you can hear and be heard with crystal clarity while gaming or in calls.

ADVANCED GAMING IMMERSION
The latest connectivity features and audio enhancements propel ROG Strix B560-F Gaming WiFi performance to the next level.

PLAY YOUR OWN STYLE
Pair ROG Strix B560-F Gaming WiFi with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.

UNDENIABLY ROG STRIX
With its cyberpunk inspired aesthetic, ROG Strix B560-F Gaming WiFi boldly embodies the ROG spirit. The motherboard proudly displays the next-generation Aura RGB-illuminated glitch-effect ROG logo and a Strix nameplate etched in a series of straight lines and dots.

ROG GIVES YOU MORE
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. To further aid system setup and performance tuning, the highly acclaimed AIDA64 utility has also been added to the mix.

UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

SONIC STUDIO III
ROG Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
