|Graphic Engine||NVIDIA® GeForce RTX™ 3070 Ti|
|Bus Standard||PCI Express 4.0|
|Video Memory||8GB GDDR6X|
|Engine Clock||OC mode : 1800 MHz (Boost Clock) Gaming mode : 1770 MHz (Boost Clock)|
|Memory Speed||19 Gbps|
|Resolution||Digital Max Resolution 7680 x 4320|
|Interface||Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
|Maximum Display Support||4|
|NVlink/ Crossfire Support||No|
|Accessories||1 x ROG Velcro Hook & Loop 1 x ROG ruler 1 x Collection card 1 x Speedsetup Manual|
|Software||ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.|
|Dimensions||318.5 x 140.1 x 57.78 mm 12.53 x 5.51 x 2.27 inch|
|Power Connectors||3 x 8-pin|

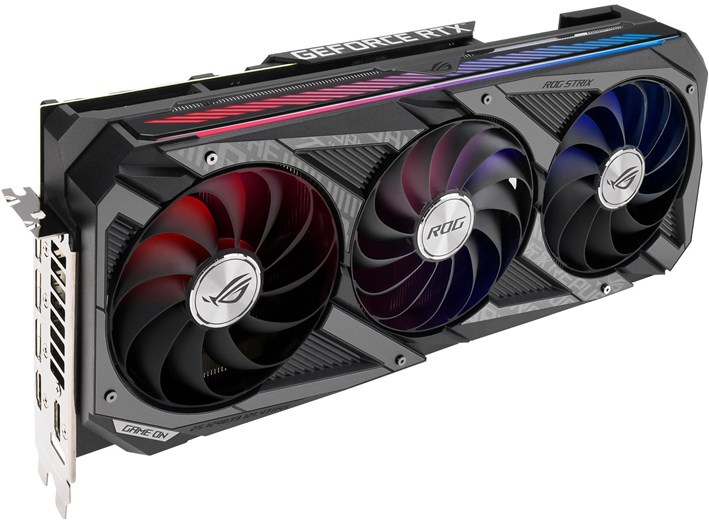

From top to bottom, the ROG Strix GeForce RTX™ 3070 Ti has been radically improved to accommodate the impressive new NVIDIA Ampere architecture and to deliver the next wave of gaming performance innovation to the market. A fresh design and more metal surrounds a grouping of Axial-tech fans. Last gen’s uniform fan layout has been usurped by a new rotation scheme and specialized roles for central and auxiliary fans. Below the blades, a larger, more impressive heatsink is ready for the most demanding thermal loads. The PCB has some new tricks up its sleeves, and even the backplate has received some performance-boosting changes. You’ve been waiting for the latest and greatest in graphics card design – and this is it.
Our Axial-tech fan design has been optimized for a new, larger heatsink that features more fins and surface area than last gen. The blade count has been increased on all three fans, with 13 on the center fan and 11 on the auxiliary fans. The barrier ring on the side fans has been slimmed down to allow for more lateral intake and to provide better airflow through the cooling array. The center fan’s extra blades and full-height ring provide boosted static pressure to blast air directly onto the heat spreader.
To get heat into the heatsink array efficiently, so that it can be whisked away by the powerful Axial-tech fans, we use a manufacturing process that improves the surface smoothness of the heatspreader at the microscopic level. The extra flatness allows for better contact with the die, helping to enhance thermal transfer.
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills a large 2.9-slot footprint. Increasing the heatsink size compared to the last generation provides more thermal headroom to account for the new high-performance chipset.

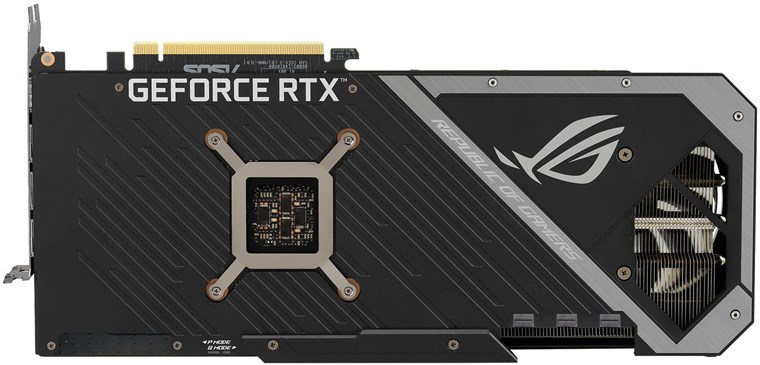

In addition to under-the-hood design changes, the ROG Strix features a new face with metal accents that mirror the design aesthetic of ROG and ROG Strix motherboards. Textured accents in a greyscale colorway blend seamlessly into subtle builds or make a striking impact while the card is vertically mounted and lit by chassis LEDs
GPU TWEAK II
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
PAIR WITH A PSU
Check out our PSU landing page to learn more about how we’re pushing the industry forward and use our wattage calculator to estimate how much power you’ll need to fuel your next rig.
