|Oscillator type:||PLL Synthesized Control Oscillator|
|Carrier Frequency Range:|| 556.71 MHz-575.98 MHz (Transmitter: A )
576.39 MHz-595.66MHz (Transmitter: B )
|Frequency response:||40 Hz to 18 kHz (+/-3dB)|
|Operation range:||100m (300′)(without obstacle)|
|Antenna:||1/4λ wire antenna|
|Audio input connector:||3.5mm mini jack|
|Signal to noise ratio||70dB or more|
|Distortion:||0.5% or less|
|Headphone output level:||30mW(16Ω)|
|Audio output level:||-60dBV|
|Power supply||Two AA size batteries|
|Operation time:||About 4 hours|
|Dimensions:||208(H) × 67(W) × 29(L)mm|
|Weight:||90g without batteries|
The BOYA BY-WM8 Pro is upgraded addition of UHF Dual-Channel Wirless Microphone system and can be used to capture audio for live sound, ENG, broadcast and film, talk shows, conferences and more.

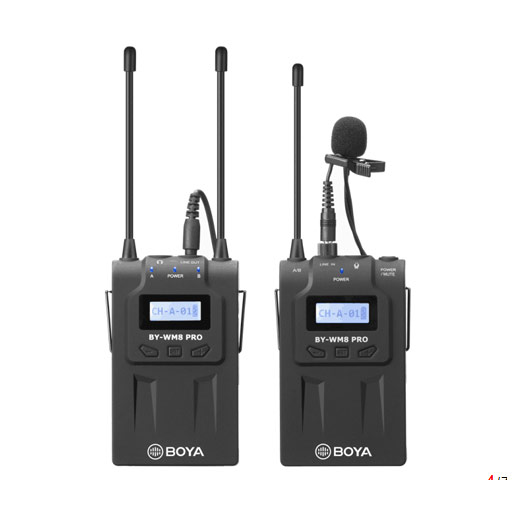

The BY-WM8 Pro-K1 system consists of a bodypack transmitter, a camera-mount receiver, and two omnidirectional lavalier microphones. Also included with this system is a shoe-mount adapter, a single 1/8″ to XLR output cable, a single 1/8 to 1/8″ output cable, carrying case.

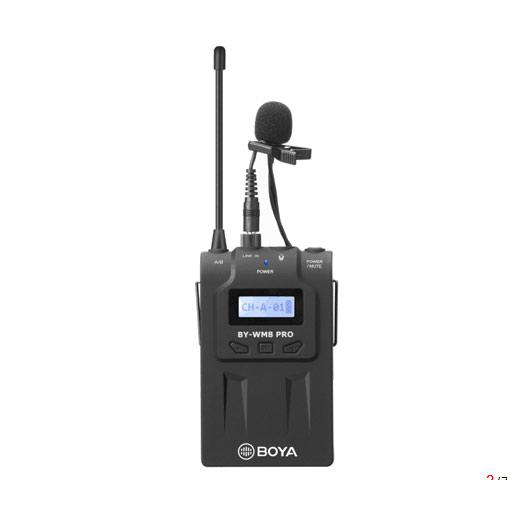

The camera-mountable receiver features a wide-switching RF bandwidth, an easy-to-read LCD display and a 3.5mm headphone jack for real-time monitoring. And the bodypack transmitter is equipped with a crystal-controlled PLL synthesizer, a muting function, a 1/8″ mic input and a 1/8″ line-in jack.
-Digital Companding Circuitry
-User-friendly menu operation with more control options
-Auto-Lock function avoids accidental changing of settings
-One Mic input and one Line Input for transmitter
-Monitoring of receiver via headphones directly
-Wide range of accessories adapts the system to most of requirements
