Cooler Master Box MB511 RGB Steel/Plastic/Tempered Glass ATX Mid Tower Computer Case

Availability:

Out of stock


  • Mesh Front Panel
  • Aggressive Intakes
  • Edge-To-Edge Transparent Side Panel
  • Support for a Total of 6 Fans and Water Cooling
  • Graphics Card Support Up to 400mm
  • Multiple Trim Colors Available
  • Mesh Front Panel
  • Aggressive Intakes
  • Edge-To-Edge Transparent Side Panel
  • Support for a Total of 6 Fans and Water Cooling
  • Graphics Card Support Up to 400mm
  • Multiple Trim Colors Available

Out of stock

Order now & Get it delivered Today!!

Model Number MCB-B511D-KANN-S00 (Red), MCB-B511D-KANN-S01 (Black), MCB-B511D-KANN-S02 (White), MCB-B511D-KANN-S03 (Blue)
Color(s) Black, *partial region on front panel: red/black/white/blue
Materials Steel, Plastic
Dimensions (L x W x H) 496 x 217 x 468 mm
Motherboard Support ATX, Micro ATX, Mini ITX
Expansion Slots 7
5.25″ Drive Bays N/A
2.5″ / 3.5″ Drive Bays (combo) 2
2.5″ Drive Bays 5 (Max.6)
I/O Panel 2x USB 3.0, Audio In & Out (Supports HD Audio)
Pre-installed Fans – Rear 1x 120mm
Fan Support – Top 2x 120mm, 2x 140mm
Fan Support – Front 3x 120mm, 2x 140mm
Fan Support – Rear 1x 120mm
Liquid Cooling Support – Front 120mm, 140mm, 240mm, 280mm, 360mm
Liquid Cooling Support – Top 120mm, 240mm
Liquid Cooling Support – Rear 120mm
Clearance – CPU Cooler 165mm/6.49″
Clearance – PSU 180mm/7.08″
Clearance – GFX 410mm/16.1″
Cable Routing – Behind Motherboard Tray 19mm / 0.74″
Dust Filters Front, Top, Bottom
Power Supply Support Bottom Mount, ATX
Series MasterBox Series
Size Mid Tower

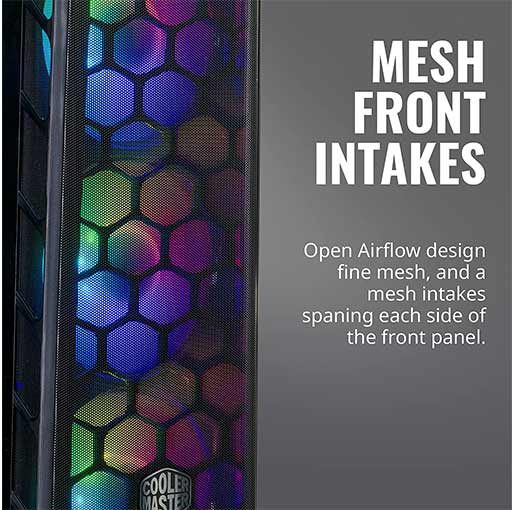

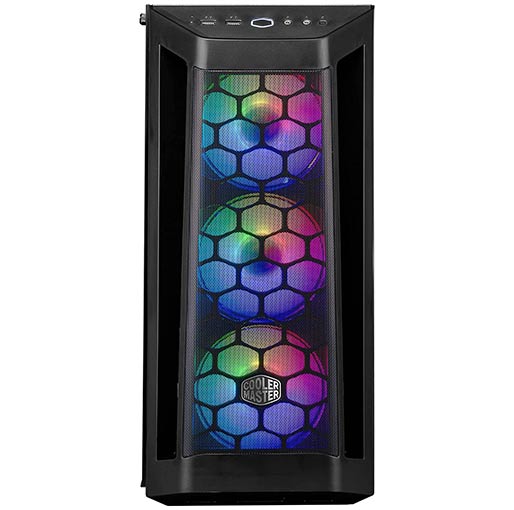

MESH FRONT PANEL
The fine mesh front panel filters dust while offering efficient airflow for demanding systems.

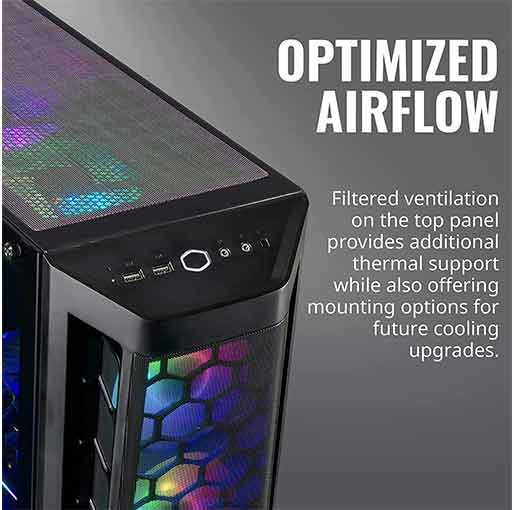

Excellent Thermal Performance
Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.

Fan And Radiator Support
Front: Three 120mm or two 140mm* fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.

Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.

Rear: One 120mm fan or radiator. All to ensure you don’t have to compromise on performance.

* 2 x 140mm fans in front can only be mounted behind the front plate

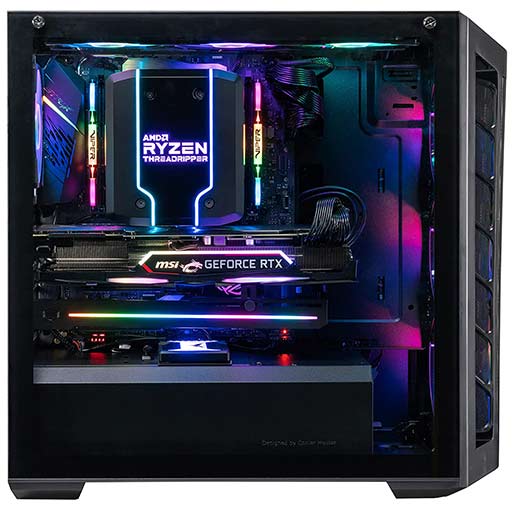

Edge-to-edge Transparent Side Panel
Showcase your build through the transparent side panel.

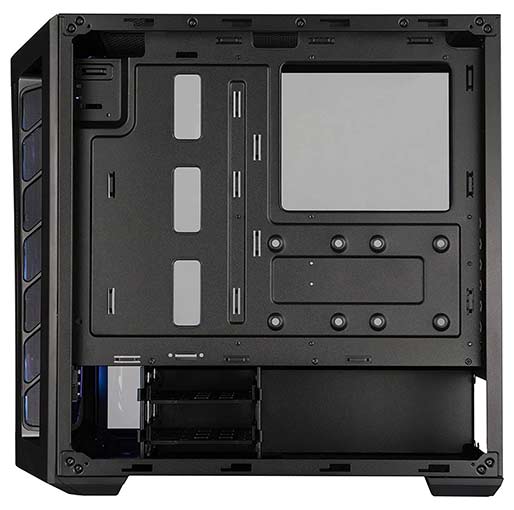

Main Components Clearance
The MB511 case supports CPU Coolers up to a height of 165mm, Graphic cards up to a length of 410mm and Power Supplies up to a length of 180mm.
