Cooler Master MasterBox MB520 ARGB Mid Tower Case

Availability:

Out of stock


  • DarkMirror Front Panel
  • Mesh Intakes
  • ARGB Lighting System
  • Tempered Glass Side Panel
  • DarkMirror Front Panel
  • Mesh Intakes
  • ARGB Lighting System
  • Tempered Glass Side Panel

Out of stock

Order now & Get it delivered Today!!

Series MasterBox Series
Size Mid Tower
Color(s) Black
Materials Steel, Plastic, Tempered Glass
Dimensions (L x W x H) 496 x 217 x 469 mm
Weight 6.59 kg
Motherboard Support Mini ITX, Micro ATX, ATX, SSI CEB*, E-ATX*, (*up to 12” x 10.7” motherboards, may impact cable management feature)
Expansion Slots 7
5.25″ Drive Bays N/A
2.5″ / 3.5″ Drive Bays (combo) 2 (Max.2)
2.5″ Drive Bays 4 (Max.6)
I/O Panel 2 x USB 3.2 Gen 1 (USB 3.0), 1 x 3.5mm Audio Jack,1 x 3.5mm Mic Jack, 1x ARGB/PWM Hub (may depend on region and model)
Pre-installed Fans – Front 3x 120mm 650~1800RPM SickleFlow PWM ARGB
Pre-installed Fans – Rear 1x 120mm 1000-1400RPM MasterFan Lite
Fan Support – Top 3x 120mm, 2x 140mm
Fan Support – Front 3x 120mm, 2x 140mm
Fan Support – Rear 1x 120mm
Radiator Support – Top 120mm, 240mm, 360mm, (44mm max motherboard component height)
Radiator Support – Front 120mm, 140mm, 240mm, 280mm, 360mm, (75mm clearance)
Radiator Support – Rear 120mm
Clearance – CPU Cooler 165mm/6.49″
Clearance – PSU 180mm/7.08″
Clearance – GFX 410mm/16.1″
Cable Routing 19~27mm
Dust Filters Top, Front, Bottom
Power Supply Support Bottom Mount, ATX
Warranty 2 years
Model Number MCB-B520-KGNN-RGA

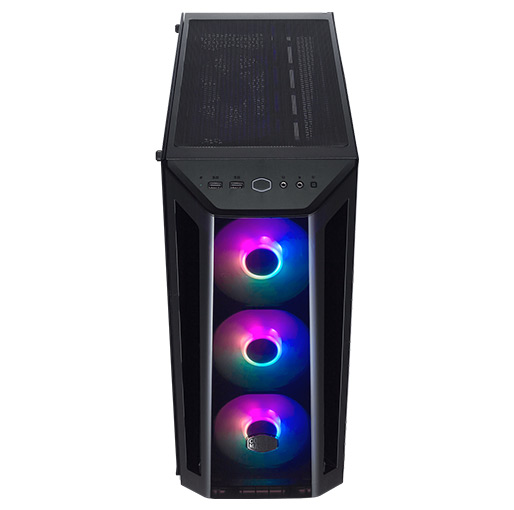

A LOOK THROUGH THE DARKMIRROR
Showing off your rig through a smoked front panel is something you didn’t know you needed. The DarkMirror front panel enriches the contrast from hardware lighting, creating a picturesque display of the internal components. To cool gaming systems built inside, mesh ventilation is found on the entire length of the front panel’s sides, ensuring that the three included ARGB fans are fed with a considerable amount of air.

If you’re thinking about thermal upgrades, the MasterBox MB520 ARGB supports up to seven fans and front and rear liquid cooling for high-demand builds. Paired with a tempered glass side panel and additional top ventilation, your build can look, and play, exactly as you dreamed it would.

DarkMirror Front Panel
Shade light through the DarkMirror front panel for a sharper contrast of the ARGB fans.

Mesh Intakes
Large, mesh intakes on each side of the front panel provide considerable airflow to system.

ARGB Lighting System
Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

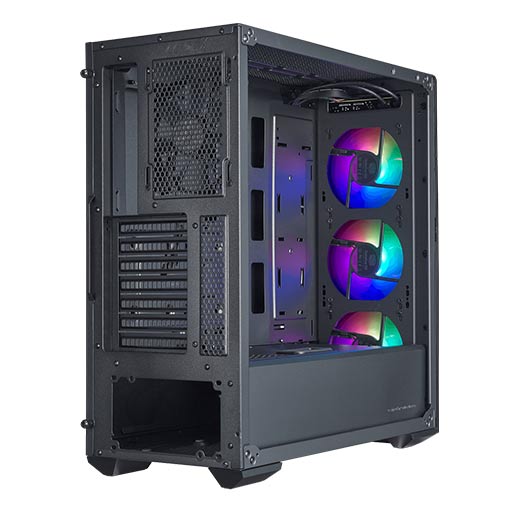

Tempered Glass Side Panel
Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.

Versatile Cooling Options
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.

SickleFlow PWM Fans Included
Newly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.
