Cooler Master V650 Gold V2 650W 80 PLUS Gold Modular Power Supply

QAR 629

Availability:

In stock

SKU : SMPS-CM-650-V2-G

  • 650W Single +12V Rail
  • 135mm Cooling Fan
  • Modular Cables
  • ATX 12V v2.52
  • 90% Energy Efficiency Rating
  • 4 x PCIe Connectors
  • 8 x SATA Connectors
  • 4 x 4-Pin Peripheral Connectors
  • Semi-Fanless Mode
  • Comprehensive Protection
  • 650W Single +12V Rail
  • 135mm Cooling Fan
  • Modular Cables
  • ATX 12V v2.52
  • 90% Energy Efficiency Rating
  • 4 x PCIe Connectors
  • 8 x SATA Connectors
  • 4 x 4-Pin Peripheral Connectors
  • Semi-Fanless Mode
  • Comprehensive Protection

QAR 629

In stock

Order By Call
Connectivity
Total Connectors 1 x 24-Pin ATX Motherboard
1 x 4+4-Pin EPS CPU
1 x 8-Pin EPS CPU
8 x 15-Pin SATA
4 x 4-Pin Peripheral / Molex
4 x 6+2-Pin PCIe
Cable Design Modular
PCIe Connector Distances 21.7″ / 550 mm
4.7″ / 120 mm
SATA Connector Distances 19.7″ / 500 mm
4.7″ / 120 mm
4.7″ / 120 mm
4.7″ / 120 mm
Peripheral Connector Distances 19.7″ / 500 mm
4.7″ / 120 mm
4.7″ / 120 mm
4.7″ / 120 mm
ATX Connector Distance 25.6″ / 650 mm
EPS Connector Distances 25.6″ / 650 mm
Electrical
Total Wattage 650 W
Number of +12 V Rails 1
Combined Power for +12 V 648 W
Max Load for +12 V 54 A
Combined Power for +3.3/+5 V 130 W
Max Load for +3.3 V 20 A
Max Load for +5 V 20 A
Max Power for +5 Vsb 15 W
Max Load for +5 Vsb 3 A
Max Power for -12 V 3.6 W
Max Load for -12 V 0.3 A
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 4.5 to 9 A
General
Efficiency Rating 80 PLUS Gold
Efficiency 90%
Hold up Time 17 ms
Power-Good Signal 100 to 500 ms
Cooling
Fan Size 135 mm
Fan Speed 1500 rpm
Bearing Type Fluid Dynamic Bearings (FDB)
Noise Level 0 to 32.1 dBA
Environmental
Operating Temperature 32 to 122°F / 0 to 50°C
Physical
Form Factor ATX
Compliance ATX 12 V v2.52
Protection Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Mean Time Between Failures (MTBF) 100,000 Hours
Dimensions 5.9 x 3.4 x 6.3″ / 150 x 86 x 160 mm
Packaging Info
Package Weight 5.995 lb
Box Dimensions (LxWxH) 12 x 8 x 5.1″

Help ensure a steady and reliable flow of power to your computer by using the V650 Gold V2 650W 80 PLUS Gold Modular Power Supply from Cooler Master. Designed for computer builders and tech enthusiasts, the black-colored unit delivers up to 650W of power across a single +12V rail with an 80 PLUS Gold energy efficiency rating of up to 90% under typical loads. It includes a 24-pin main power connector, a 4+4-pin EPS connector, and an 8-pin EPS connector alongside eight 15-pin SATA, four 6+2-pin PCI-e, and four 4-pin peripheral connectors to power your devices. Its modular cables allow you to only use what you need, which cuts down cable clutter while improving the airflow inside your system. The {Model} Gold V2 features a 135mm fan with a max speed of 1500 rpm, which can be manually configured to shut off when loads are below 40%, allowing for silent operation as it powers your computer system.

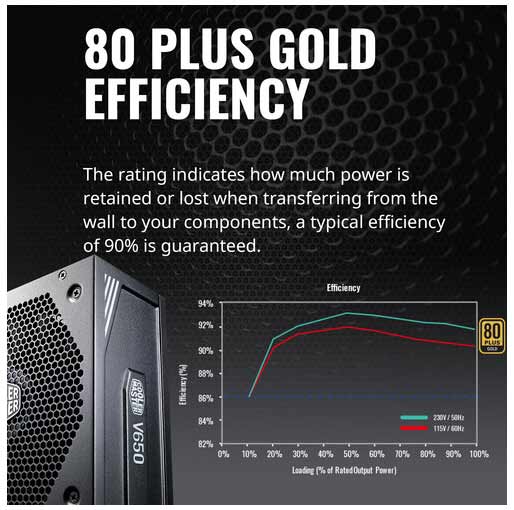

80 PLUS Gold
The V650 Gold V2 features an 80 PLUS Gold certification, which ensures up to a 90% energy efficiency rating under typical loads.

Semi-Fanless Mode
The 135mm fluid-dynamic bearing fan can be manually configured to automatically shut off when loads are under 40% using the hardware-based hybrid switch for silent operation.

Modular Cables
Designed for maximum flexibility, the V650 Gold V2 allows you to use only the cables you need, which potentially decreases clutter and increases airflow efficiency.

16 AWG PCI-e Cables
The thick 16 AWG PCI-e cables are designed to carry high currents to improve power efficiency.

Protection

  • OVP (Over Voltage Protection)
  • OCP (Over Current Protection)
  • OPP (Over Power Protection)
  • SCP (Short Circuit Protection)
  • UVP (under Voltage protection)
  • OTP (Over Temperature Protection)
