Dimensions (W × D × H) | Unpacked with stand 50.39 x 17.04 x 38.30 cm (19.84 x 6.71 x 15.08 in) Packed 57.0 x 10.69 x 38.51 cm (22.44 x 4.21 x 15.16 in) Unpacked without stand 50.39 x 4.90 x 31.04 cm (19.84 x 1.93 x 12.22 in) |
Weight | Unpacked with stand 2.60 kg (5.73 lb) Packed 3.64 kg (8.02 lb) Head only 2.46 kg (5.42 lb) |
Panel | |
Type | 21.5-inch, TN |
Viewable image area (diagonal) | 54.61 cm (21.5 in) widescreen |
Panel active area (W x H) | 47.65 x 26.80 cm (18.76 x 10.55 in) |
Resolution | 1920 x 1080 at 60 Hz |
Aspect ratio | 16:9 |
Viewing angle (typical) | Up to 90° horizontal Up to 65° vertical |
Brightness | 200 cd/m2 |
Contrast ratio | 450:1 static (minimum) 600:1 static (typical) |
Dynamic contrast ratio | 10,000,000:1 dynamic (DCR) |
Response times | 5 ms |
Pixel pitch | 0.248 x 0.248 mm |
Pixels Per Inch (PPI) | 102 |
Default color temperature | 6500 K |
Backlight lamp life | 30,000 hours minimum (to half brightness) |
Panel bit depth | 8-bit (6-bit + Hi FRC) |
Color gamut (typical) | 72% (NTSC) |
Anti-glare panel | Yes |
User controls | |
Buttons or switches | Menu, Minus (“-“), Plus (“+”) /Input Control, and Power |
User Programmable Modes | Yes, 3 (6 options) |
Languages | 10 (English, Spanish, German, French, Italian, Dutch, Portuguese, Japanese, Simplified Chinese, and Traditional Chinese) |
On-screen Display (OSD) user controls | Brightness, Contrast, Color Control, Input Control, Image Control, Power Control, Menu Control, Management, Language, Information, and Exit |
Signal interface/performance | |
Native resolution | 1920 x 1080 at 60 Hz |
Preset graphic modes (non-interlaced) | 640 x 480 at 60 Hz 720 x 400 at 70 Hz 800 x 600 at 60 Hz 1024 x 768 at 60 Hz 1280 x 720 at 60 Hz 1280 x 800 at 60 Hz 1280 x 1024 at 60 Hz 1440 x 900 at 60 Hz 1600 x 900 at 60 Hz 1680 x 1050 at 60 Hz 1920 x 1080 at 60 Hz |
Pixel clock | 170 MHz |
Vertical frequency | 50 – 60 Hz |
Horizontal frequency | 30 – 80 kHz |
Video/other inputs | |
Plug and play | Yes |
Input connectors | (1) VGA (1) DVI (HDCP support) |
Video cables included | (1) VGA cable 1.5 m (4.9 ft) |
Ergonomics | |
Color | Black |
Detachable stand | Yes, ships detached |
Tilt range | -5° to + 15° vertical |
VESA mounting | Yes, 75 mm |
Security lock-ready | Yes |
Power | |
Power supply | Internal |
Input power | 100 – 240 VAC 50/60 Hz |
Maximum power | 20 W |
Typical power | 18 W |
Sleep power | 0.5 W |
Power cable length | 1.9 m (6.23 ft) |
What’s in the box? | |

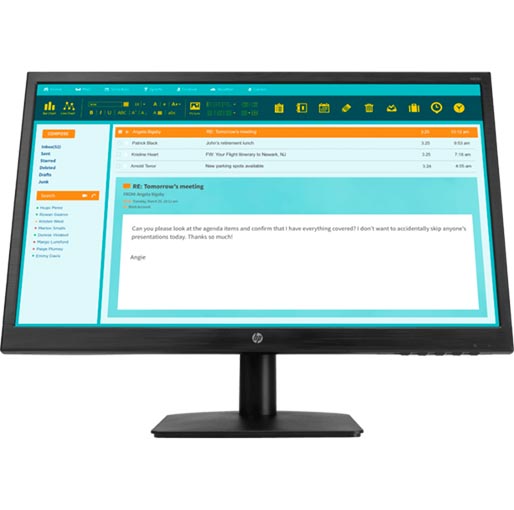

Monitor and accessories | HP N223v 21.5-inch Monitor AC power cord, 1.9 m (6.23 ft) VGA cable, 1.5 m (4.92 ft) |
Documentation | CD (includes user guide, warranty, and drivers) |
Physical specifications | |
Dimensions (W × D × H) | Unpacked with stand 50.39 x 17.04 x 38.30 cm (19.84 x 6.71 x 15.08 in) Packaged 57.0 x 10.69 x 38.51 cm (22.44 x 4.21 x 15.16 in) Unpacked without stand (head only) 50.39 x 4.90 x 31.04 cm (19.84 x 1.93 x 12.22 in) |
Weight | Unpacked with stand 2.60 kg (5.73 lb) Packaged 3.64 kg (8.02 lb) Head only 2.46 kg (5.42 lb) |
Environmental | |
Temperature | Operating 5° to 35° C (41° to 95° F) Non-operating -20° to 60° C (-4° to 140° F) |
Humidity | Operating 20% to 80% non-condensing Non-operating 5% to 95% |
Altitude | Operating 0 to 5,000 m (0 to 16,400 ft) Non-operating 0 to 12,192 m (0 to 40,000 ft) |
Arsenic-free display glass | Yes |
White LED backlights | Yes |
Mercury-free display backlighting | Yes |
Eco-label certifications & declarations | CB TUV low blue light CCC CEL CECP SEPA WEEE |
