|SSD form factor||M.2|
|SSD capacity||512 GB|
|Interface||PCI Express 3.0|
|Memory type||BiCS FLASH TLC|
|Read speed||2200 MB/s|
|Write speed||1400 MB/s|
|Random read (4KB)||330000 IOPS|
|Random write (4KB)||190000 IOPS|
|PCI Express interface data lanes||x4|
|Mean time between failures (MTBF)||1500000 h|
|Operating voltage||3.3 V|
|Power consumption (average)||3.5 W|
|Operating temperature (T-T)||0 – 85 °C|
|Storage temperature (T-T)||-40 – 85 °C|
|Weight & dimensions|

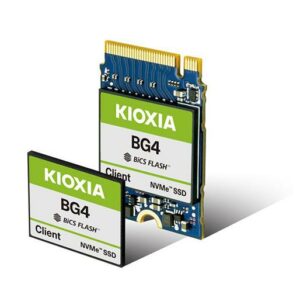

Kioxia BG4 M.2 512 GB PCI Express 3.0 BiCS FLASH TLC NVMe SSD
Out of stock
Out of stock
Order now & Get it delivered Today!!
The BG4 series is a line-up of compact single package NVMe™ SSDs with capacities up to 1,024GB, and leverages a PCIe® Gen3 x4 interface and KIOXIA’s 96-layer TLC BiCS FLASH™. With higher bandwidth and improved flash management and Host Memory Buffer (HMB) technology, BG4 SSDs deliver best-in-class read performance in single package SSDs, of up to 2,300MB/s (sequential read) and up to 390K IOPS (random read), with active power consumption of up to 3.7W (Typ.).
The BG4 series is available in four capacities of 128GB, 256GB, 512GB and 1,024GB in surface-mount M.2 1620 single package or removable M.2 2230 module form factor options, making them suitable for thin and light system designs for ultra-thin PCs, as well as embedded devices and server boot in data centers. The BG4 series is with the option of a Self-Encrypting Drive (SED) model supporting TCG Opal Version 2.01.
