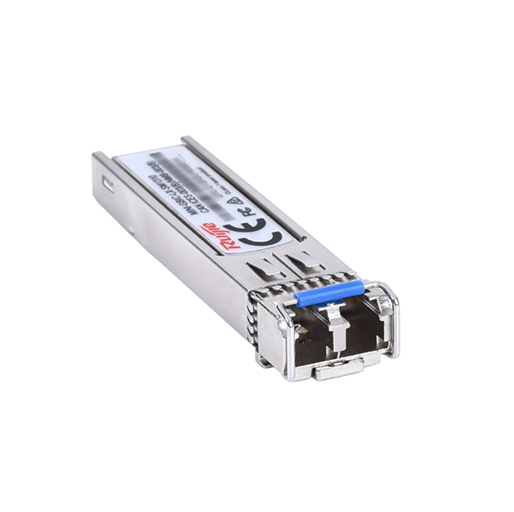

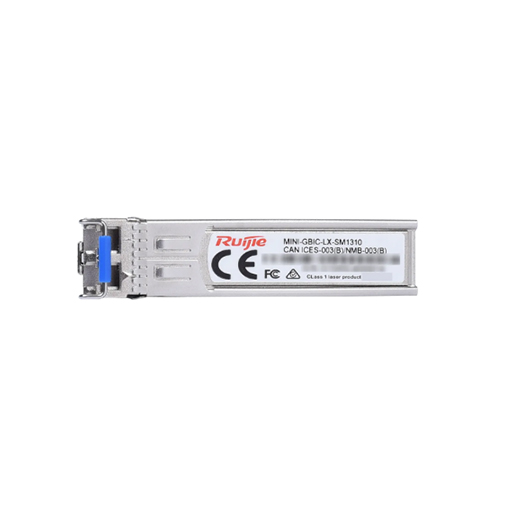

MINI-GBIC-LX-SM1310 1000BASE-SX SFP 1310-nm 10-km DDM Duplex LC SMF Optical Transceiver Module


  • Max. power consumption 1.5 W
  • Hot pluggable SFP MSA compliant
  • Digital optical monitoring capability for strong diagnostic capabilities
  • Compliant with IEEE 802.3z Gigabit Ethernet
  • Class 1 Laser safety and RoHS compliant

QAR 1,291

Order By Whatsapp Order By Call

Order now & Get it delivered Today!!

ModelMINI-GBIC-SX-MM850MINI-GBIC-LX-SM1310MINI-GBIC-LH40-SM1310MINI-GBIC-ZX80-SM1550MINI-GBIC-GT
Data rate1.25 Gbps1000base-X to 1000base-T
Form factorSFP
Connector typeDuplex LCDuplex LCDuplex LCDuplex LCRJ45
Cable typeMMFSMFSMFSMFCat 5e/6/6a
Fiber end face finish typeUltra Physical Contact (UPC)N/A
Transmitter typeVCSELDFBDFBDFBN/A
Receiver typePINN/A
Reach550 m (1,804.46 ft.)10 km (32,808.40 ft.)40 km (131,233.60 ft.)80 km (262,467.19 ft.)100 m (328.08 ft.)
Bit error ratio (BER)1.00E-12N/A
Data diagnosis-capable (DDM/DOM)YesNo
Power consumption≤ 1.5 W
Transmitter Optical Parameters
Wavelength (nm)850131013101550N/A
Max. transmit power (AVG)0 dBm–3 dBm0 dBm5 dBmN/A
Min. transmit power (AVG)–9.5 dBm–11 dBm–5 dBm0 dBmN/A
Min. extinction ratio≥ 9 dBN/A
Receiver Optical Parameters
Receive sensitivity (OMA)< –17 dBm< –19 dBm< –23 dBm< –27 dBmN/A
Overload optical power (AVG)0 dBm–3 dBm–3 dBm–3 dBmN/A
Environment and Reliability
Operating temperature0°C to 70°C (32°F to 158°F)
Operating humidity10% RH to 90% RH
Storage temperature–40°C to +85°C (–40°F to +185°F)
Storage humidity10% RH to 90% RH
Dimensions and Weight
Dimensions (W x D x H)56.5 mm x 13.5 mm x 8.5mm (2.22 in. x 0.53 in. x 0.33 in.)68 mm x 14 mm x 8.5 mm (2.68 in. x 0.55 in. x 0.33 in.)56.5 mm x 13.5 mm x 8.5 mm (2.22 in. x 0.53 in. x 0.33 in.)
Weight35 g (0.08 lbs.)



As an industry-leading ICT infrastructure and industry solution provider, Ruijie offers customers a wide variety of high-density and low-power 1G optical modules. They are applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs).

The MINI-GBIC-LX-SM1310 is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with an LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards.
