Image Sensor | 1/3” Progressive Scan CMOS Starlight Sensor |
Lens | Focal Length: 3.2 mm Aperture: F1.6 Field of View: 112° (Diagonal), 95°(Horizontal), 53°(Vertical) |
Motion Range | Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 60° (130° Tilt Coverage) |
Night Vision | 850 nm IR LED (98 ft / 29.9 m) Full-Color Night Vision |
Lighting | 2× Built-in Spotlights |
Interface & Button | 1× Ethernet Port 1× RESET Button 1× MicroSD Card Slot (Up to 512GB) |
Maximum Resolution | 2K QHD 4MP (2560 × 1440 px) |
Frame Rate | 15/20/25/30 fps (Default 15 fps) |
Digital Zoom | 12x |
Video Compression | H.264 |
Live View | Yes |
Image Enhancement | 3DNR WDR |
Audio Input & Output | Built-in Microphone and Speaker |
Audio Communication | Two-Way Audio with Noise Cancellation |
Siren Volume | 93 dB (Level measured at 4-inch/10-cm distance) |

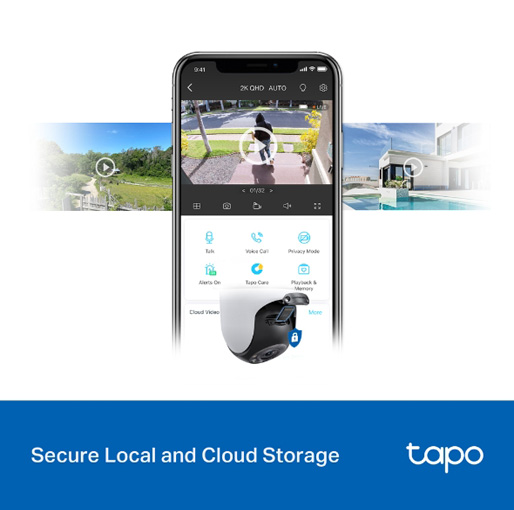

Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
AI Detection | Motion Detection Person Detection Pet Detection Vehicle Detection Line-Crossing Detection Tamper Detection |
Activity Zones | Yes |
Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
Network Connectivity | Connect via Wi-Fi or Ethernet |
Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
Ethernet Port | 1× 10/100 Mbps RJ45 Port on Camera |
RTSP | Yes |
ONVIF | Yes |
Security | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
Power Source | 9V DC Power Adapter |
Input Voltage | 100-240 V, 50/60 Hz |
Output Voltage | 9 V, 0.85 A (DC Power) |
Smart Integration | Google Assistant, Amazon Alexa |

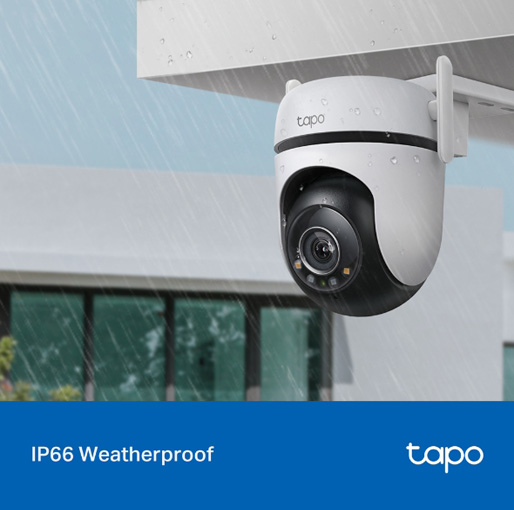

Weather Resistance | IP66 |
System Requirements | Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
Mounting Options | Ceiling-Mounted Wall-Mounted Pole-Mounted (Pole-Mounting loops required but not included) |
Operating Temperature | -30℃~60℃ |
Storage Temperature | -40℃~60℃ |
Operating Humidity | 10%~90% RH, Non-condensing |
Storage Humidity | 0~90% RH, Non-condensing |
Dimensions | 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm) |
Package Contents | Tapo C520WS Camera Power Adapter Mounting Anchors Mounting Screws Bracket Screws Mounting Template Mounting Bracket Waterproof Seal Waterproof Cable Attachments Quick Start Guide |
Certifications | CE, FCC, RoHS, RCM |
