|CPU||ARM 4-core Cortex-A55 2.0GHz processor|
|CPU Architecture||64-bit ARM|
|Floating Point Unit|
|System Memory||4 GB on board (non-expandable)
Note: Reserves some RAM for use as shared graphics memory.
|Maximum Memory||4 GB on board (non-expandable)|
|Flash Memory||4 GB (Dual boot OS protection)|
|Drive Bay||4x 3.5-inch SATA 6Gb/s, 3Gb/s|
|Drive Compatibility||3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
|Gigabit Ethernet Port (RJ45)||1|
|2.5 Gigabit Ethernet Port (2.5G/1G/100M)||1 (2.5G/1G/100M)|
|Wake on LAN (WOL)|
|USB 2.0 port||2|
|USB 3.2 Gen 1 port||1|
|LED Indicators||System Status, LAN, USB, HDD1~4|
|Buttons||Power, Reset, USB Copy|
|Dimensions (HxWxD)||169 × 160 × 219 mm|
|Weight (Net)||2.07 kg|
|Weight (Gross)||3.5 kg|
|Operating Temperature||0 – 40 °C (32°F – 104°F)|
|Storage Temperature||-20 – 70°C (-4°F – 158°F)|
|Relative Humidity||5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)|
|Power Supply Unit||90W adapter (12VDC), 100-240VAC|
|Power Consumption: HDD Sleep Mode||8.45 W|
|Power Consumption: Operating Mode, Typical||22.54 W
Tested with drives fully populated.
|Fan||1 x 120mm, 12VDC|
|Kensington Security Slot|
|Max. Number of Concurrent Connections (CIFS) – with Max. Memory||200|

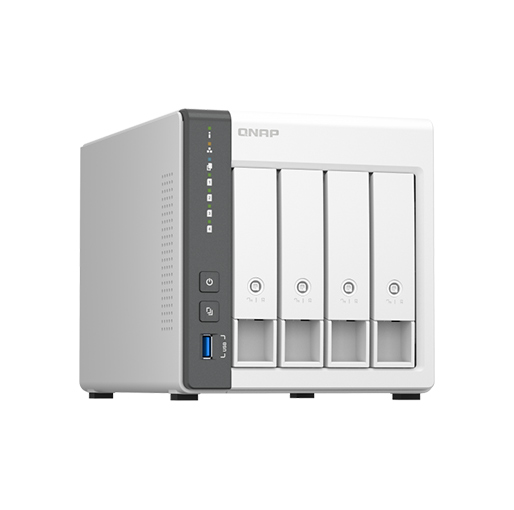

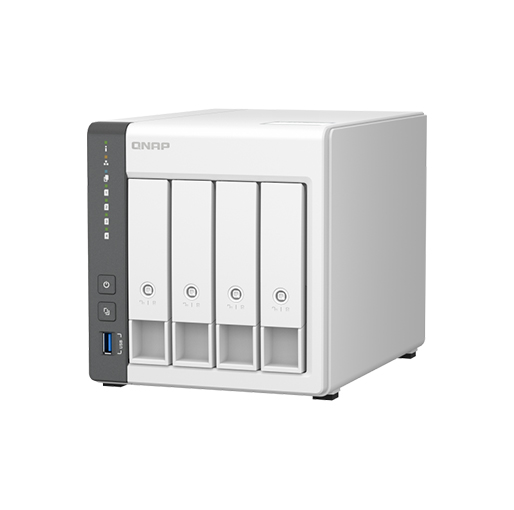

QNAP TS-433-4G NAS Server Empty Enclosure
Available on backorder
Order now & Get it delivered Today!!
The compact and slim TS-433 prioritizes a clean and essential design, and perfectly blends into your home or office. The design extends to the hard drives, which can be installed without needing a screwdriver.
64-bit Cortex-A55 quad-core 2.0 GHz CPU NAS for everyday use and collaboration
Powered by a ARM® Cortex-A55 quad-core 2 GHz processor, built-in 4 GB RAM, one Gigabit LAN port, one 2.5 Gigabit LAN port, and supports four SATA 6Gb/s hard drives, the TS-433 provides dependable read/write performance for running various home and business NAS applications. The TS-433 features AES-NI 256 hardware-accelerated encryption for both full NAS volumes and shared folders, boosting system performance while securing sensitive data.
Build a High-Speed 2.5GbE Network Environment
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
An easy-to-use, all-in-one backup solution
The TS-433 can do many things, but at its heart is a complete backup solution to protect your files and data. By regularly backing up your files and device content, you can make data loss a thing of the past.
Protect your data from ransomware threats with Snapshots
Snapshots are an advanced backup method and are normally reserved for high-end business NAS. QNAP provides snapshots as standard for all NAS – including the TS-433. Snapshots work by recording the current state of the system, allowing it to be restored back this state at any time – greatly helping in mitigating the threat of ransomware.
Enhanced multimedia experience
The TS-433 supports ARM NEON technology to accelerate video processing for a greater entertainment experience. Stream media files from the TS-433 to DLNA® devices and TVs using common media streaming devices including Roku®, Apple TV® (via Qmedia), Google Chromecast™, and Amazon Fire TV®.
Tips for a more productive workday
With a wide range of awesome apps, you can easily access files from various devices, instantly synchronize files with friends’ or colleague’s devices, quickly find specific files, and automatically organize your documents and media files. You can also map the TS-433’s shared folders as network drives on your computers, making accessing NAS files easy and intuitive. The TS-433 helps you save time while being more efficient and productive.
Access your NAS from anywhere
The myQNAPcloud service enables quick and easy remote access to your TS-433, allowing you to be always connected without needing to configure complex network settings. With myQNAPcloud Link you are provided with a unique domain name for your TS-433, and will automatically connect using the best method based on your network environment.
