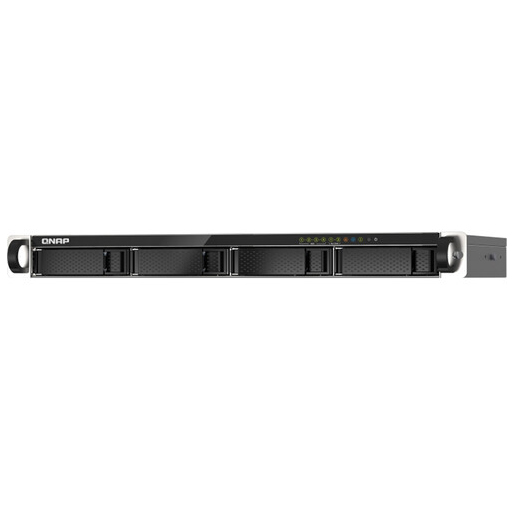

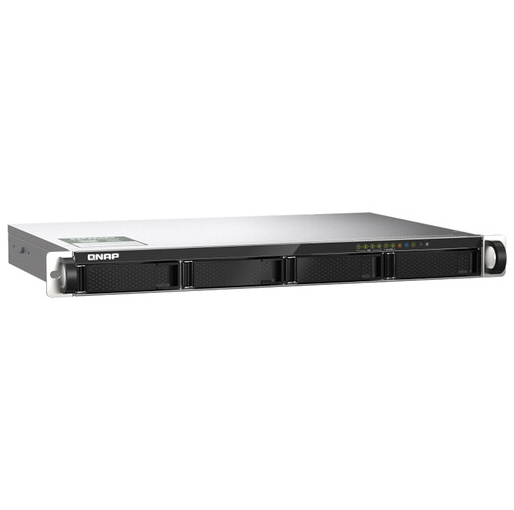

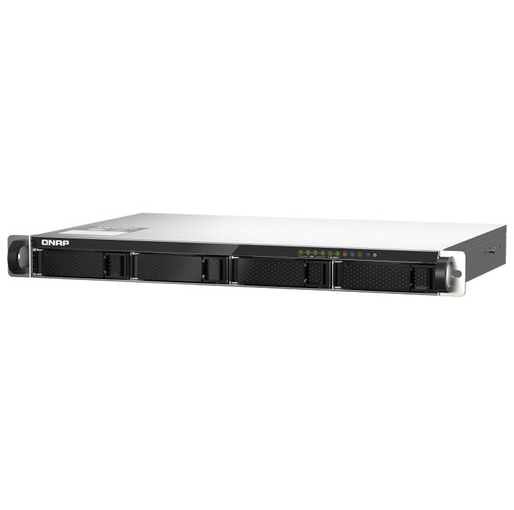

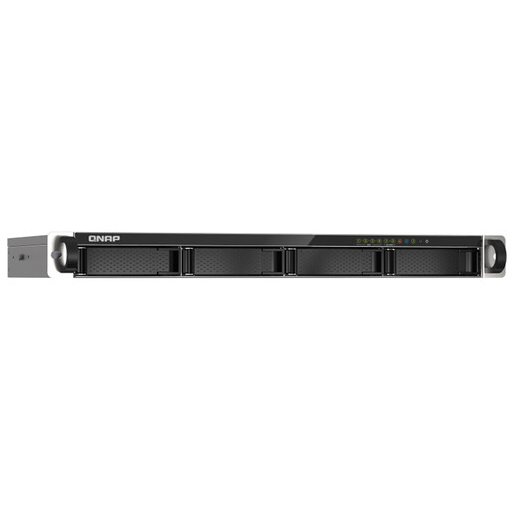

QNAP TS-435XeU 4-Bay NAS Enclosure


Available on backorder

  • 4 x 3.5″/2.5″ Bays | 2 x M.2 2280 Slots
  • 2.2 GHz Marvell OCTEON TX2 Quad-Core
  • 4GB DDR4 RAM
  • 2 x 10GbE SFP+ | 2 x 2.5GbE RJ45
  • USB 3.2 Gen 1 Type-A | USB 2.0 Type-A
  • RAID 0, 1, 5, 6, 10, JBOD, and Single
  • Up to 2224 MB/s File Transfer Speeds
  • AES 256-Bit Encryption
  • Three 40mm Cooling Fans
  • QTS 5.0.0 Operating System

QAR 3,905

Available on backorder

Order By Whatsapp Order By Call

Order now & Get it delivered Tomorrow!!

CPU2.2 GHz Cortex A72 Quad-Core
ProcessorMarvell OCTEON TX2
Total Installed Memory4 GB DDR4
User-Replaceable Memory1 x 4 GB
Total Memory Slots1 x SO-DIMM
Maximum Memory Capacity32 GB
Flash Memory4 GB
Number of Bays4 x 2.5″/3.5″
2 x M.2 (2280)
I/O2 x SFP+ (10GbE)
2 x RJ45 (2.5GbE)
2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
2 x USB Type-A (USB 2.0 (480 Mb/s))
Compatible Drive InterfaceSATA II, SATA III
Media Card SlotsNone
Form FactorRackmount (1 RU)
RAIDRAID 0, 1, 10, 5, 6, JBOD, Single
Hot-Swap SupportYes
Wake on LANYes
Link Aggregation and Failover SupportYes
Supported ProtocolsAFP
iSCSI Target256
Max Concurrent Connections1500
Max Folders512
Max Groups512
Max User Accounts4096
Max Volume Number128
Installed Operating SystemQTS 5.0.0
Supported File SystemsInternal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS CompatibilitymacOS 10.10 or Later
Windows 11
Windows 10
Windows 7
Windows 8
Windows Server 2019
Windows Server 2016
Windows Server 2012 R2
Windows Server 2012
Windows Server 2008 R2
Ubuntu 14.4 or Later
CentOS 7 or Later
*As of May, 2022: check with manufacturer for the most up-to-date compatibility
Supported BrowsersChrome, Edge, Firefox, Safari
Supported LanguagesBrazilian Portuguese
Simplified Chinese
Traditional Chinese
Encryption256-Bit AES
VPN Client Connections100
AC Input Power100 to 240 VAC, 50 / 60 Hz
Power SourceInternal Power Supply
Power Consumption30.878 W (Typical)
17.367 W (Standby)
PSU Wattage1 x 100 W
Operating Temperature32 to 104°F / 0 to 40°C
Operating Humidity5 to 95% (Non-Condensing)
Storage Temperature-4 to 158°F / -20 to 70°C
Status MonitoringLED Indicator
Audible AlarmYes
Cooling3 x 40 mm Fans
Built-In SpeakersNone
Dimensions16.93 x 11.5 x 1.7″ / 43 x 29.2 x 4.3 cm
Weight9.1 lb / 4.1 kg

The TS-435XeU 4-Bay NAS Enclosure from QNAP provides users with a professional-grade NAS in a short depth, 1 RU form factor. Native 10GbE SFP+ and 2.5GbE RJ45 ports work alongside M.2 NVMe SSD slots that enable cache acceleration so users can efficiently tackle tasks that include file backup/restore. Its short depth design makes the TS-435XeU easy to install in small media cabinets or places with lots of cabling. As it supports abundant business applications, including file sharing and sync, snapshot protection, containerization, cloud storage gateways, and video streaming, as well as expandable storage capacity, and install-on-demand apps, the TS-435XeU is an ideal cost-effective entry-level rackmount NAS.

The TS-435XeU is powered by a 2.2 GHz Marvell OCTEON TX2 Quad-Core processor and 4GB of DDR4 RAM, which can be upgraded to 32GB. This NAS also supports JBOD and a variety of RAID modes, including RAID 0, 1, 5, 6, and 10, each of which offer data redundancy, speed, or a combination of both.

This 4-bay enclosure has the ability to natively house both 3.5″ and 2.5″ SATA III and SATA II hard drives or SSDs, which can reach a throughput of up to 2224 MB/s. Using the external 5 Gb/s USB 3.2 Gen 1 Type-A and 480 Mb/s USB 2.0 Type-A ports, this QNAP NAS can be connected to other QNAP devices, as well as other external drives and displays.

The TS-435XeU 4-Bay NAS Enclosure operates on 100-240 VAC at 50-60 Hz using a 100W power supply and stays cool using three 40mm fans. It includes an Ethernet cable, a power cord, sixteen screws for 3.5″ drives, and twelve screws for 2.5″ drives. Protection is provided by a limited 3-year warranty.

Robust 2.2 GHz Quad-Core Processor
The TS-435XeU is powered by a 2.2 GHz OCTEON TX2 infrastructure Marvell ARMv8 Cortex-A72 Quad-Core processor that features integrated workload-optimized hardware accelerators to meet performance, power, and total cost of ownership requirements. The TS-435XeU comes with 4 GB DDR4 memory that can be upgraded to 32GB for enhanced multi-tasking capabilities, and SATA III 6 Gb/s support ensures maximum performance from storage drives.

Excellent Performance
Get sequential read speeds of up to 2224 MB/s and write speeds 794 MB/s when using both 10GbE ports, or get read speeds of up to 570 MB/s and write speeds of up to 588 MB/s when using both 2.5GbE ports.

Streamlined Workflows with High-Speed 10GbE and 2.5GbE
The TS-435XeU has two 10GbE SFP+ ports and two 2.5GbE RJ45 ports for high-speed networking to satisfy bandwidth-demanding applications, including massive file transfer, high-speed backup/restoration, containers, and multimedia transmission with the support of port trunking and load balancing. QNAP’s managed and unmanaged 2.5GbE/10GbE switches are a perfect match for organizations to build budget-friendly high-speed networks for productive team collaboration.

Future-Proof Your Infrastructure for High-Speed Networks
QNAP provides comprehensive, budget-friendly storage and networking solutions, allowing you to easily and flexibly upgrade network environments for bandwidth-hungry applications.

2.5GbE/10GbE NAS
A fast NAS with one or more 2.5GbE/10GbE LAN ports.

Upgrade Computers and Servers
Computers and servers with available PCIe slots can install QNAP network expansion cards that support 10G/5G/2.5G/1G/100M Multi-Gig.

Add Ethernet Ports to Laptops
Laptops and computers can use a QNAP USB 3.2 Gen 1 to 5GbE adapter that supports N-BASET/Multi-Gig.

A Switch that Supports 2.5GbE+
QNAP switches allow connecting multiple workstations and devices for high-speed collaboration.

Get Performance Benefits from SSD Caching and Qtier Technology
To attain optimal I/O and reduce latency, you can configure SSD caching by using either 2.5″ SSDs or the two built-in M.2 2280 PCIe 3.0 x1 SSD slots that support NVMe SSDs. Coupled with QNAP’s SSD-aware features, the TS-435XeU maximizes performance with high cost-effectiveness.

SSD Over-Provisioning
Add additional SSD over-provisioning to avoid write amplification and improve SSD random write speeds and endurance. You can potentially attain enterprise-grade SSD performance levels from affordable consumer-grade SSDs.

SSD Cache Acceleration
Enables SSD caching for increasing IOPS performance and reducing latency for storage volumes, which is good for IOPS-demanding applications.

Qtier for Auto Tiering
Qtier Technology drives auto-tiered storage with continuous data optimization across high-performance SSDs and high-capacity HDDs based on access frequency. I/O-Aware Qtier can reserve a cache-like space in the SSD tiered to handle burst I/O in real time.

Host Container Applications
Container Station integrates Docker, LXD, and Kata Containers lightweight virtualization technologies. You can download apps from the built-in Docker Hub to easily import/export container apps and manage access controls, enjoying the benefit of easy installation, transferability and high-efficiency.

A Multimedia Server for Video Streaming
The short depth TS-435XeU can be easily placed in a media cabinet. By installing streaming apps such as Plex Media Server from the QTS App Center, you can stream media files stored on the TS-435XeU to mobiles and media streaming devices, including DLNA, Roku, Amazon Fire TV, and Google Chromecast.

Comprehensive Backup and Disaster Recovery Solution
The TS-435XeU supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.

PC/Laptop Backup
For Windows, install NetBak Replicator to back up your PC to your QNAP NAS. In macOS, just set up the built-in Time Machine to secure your data.

Remote Backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-435XeU to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.

Cloud Backup for NAS
Hybrid Backup Sync supports mainstream cloud storage for NAS data backup. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.

Multi-Version Snapshots Mitigate Ransomware Threats
The TS-435XeU supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.

Volume and LUN Snapshots
Take snapshots in seconds and revert the entire volume/LUN back to a specific point in time to prevent loss of important data.

Instantly Restore Snapshots
Snapshot content can be quickly restored to a local NAS, or restored on a folder/file basis to a local/remote NAS or cloud storage. You can also conveniently view and restore snapshots from the client side.

Back Up Snapshots
Multiply data protection by backing up snapshot files. Replicate volume/LUN snapshots in the TS-435XeU to a remote NAS (Snapshot Replica) by copying only the changes made. This helps save time & bandwidth, and can be run manually or on a scheduled basis.

Comprehensive Security and Privilege Settings
The TS-435XeU is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, and Hand TTPS connectivity, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.

myQNAPcloud secures remote access
myQNAPcloud allows convenient connection to the TS-435XeU through the internet without any complex DDNS settings. To ensure your remote access service is secure, myQNAPcloud strengthens keys on SSL Certificates to 2048-bits.

Simplified Privilege Settings
The TS-435XeU supports comprehensive access right settings for shared folders, Azure Active Directory Domain Services (Azure AD DS), LDAP, and Windows ACL to help IT staff efficiently manage user accounts and access rights for multiple NAS systems.

QuFirewall Protection
Supports IPv6, firewall access lists, and GeoIP filtering to restrict access based on geographical locations for higher NAS network security.

Superior Security with QVPN
A virtual private network (VPN) allows secure access to network resources and services across public networks. QVPN supports creating a VPN client, using the TS-435XeU as a VPN server, and WireGuard VPN service with an easy-to-use interface for setting up a secure connection.

Security Counselor
A security portal for the TS-435XeU to check for weaknesses and offer recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Malware Remover
Regularly scan your TS-435XeU using the latest malware definitions. If infected files are detected, they will be immediately removed to ensure NAS data security.

File and Storage Collaboration Center
The TS-435XeU integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows, Mac, and Linux/UNIX, and provides a smart NAS solution for professionally managing your files.

File Station
Manage, access, and share all the files in the TS-435XeU and view snapshots files, all from your web browser. You can also easily mount remote NAS folders and cloud storage.

Make any file uploaded to a TS-435XeU available to linked devices, such as computers, laptops, and mobile devices. You can sync shared folders and team folders for group file sharing to enhance the flexibility of team projects and collaboration.

QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

Automate your file organization ─ all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.

Smart Surveillance Solution for 24/7 Security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-435XeU and enjoy simplified camera management, storage space allocation, camera live viewing, and playback.

Flexible and Economical Storage Expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-435XeU storage as needed to accommodate data and business growth.

Attach QNAP Expansion Enclosures
Connect expansion enclosures to the TS-435XeU and manage NAS storage expansion with the user-friendly Storage & Snapshots Manager app.

Mount Cloud Storage or Remote File Servers
Mount cloud storage or remote file servers to expand the capacity of the TS-435XeU while also centrally managing files on the NAS, cloud storage, and remote devices.

Migrate to a New NAS
Install your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.

Upgrade RAID Capacity
Hot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.

More Productivity-Boosting Apps
The TS-435XeU provides an App Center that includes feature-rich apps to expand your NAS potential.

An AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS Live Photo display, and powerful search tools for the ultimate photo management and sharing solution.

Notification Center
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.

An Integration Platform as a Service (iPaaS) solution that enables you to connect apps and devices with QNAP NAS for automating daily tasks for greater productivity.

Proxy Server
By using a high-capacity TS-435XeU as a proxy server, online resources can be efficiently accessed with greater cost-savings and productivity, while network security is also enhanced at the same time.

Centralize multiple email accounts and protect your data by using secondary backup, making managing and backing up emails absolutely easy.

The TS-435XeU can perform as an FTP server featuring SSL/TLS encryption, QoS bandwidth controls, and permission settings for efficiently and securely transferring large amounts of data. FTP Client is also supported.

A Health Check for Your Hard Drives
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.

S.M.A.R.T. and Back Block Scanning
If any of the S.M.A.R.T. values are reported as abnormal, or bad blocks are detected, you can take early action and replace drives before potential data loss occurs.

DA Drive Analyzer
The DA Drive Analyzer leverages ULINK cloud-based AI to predict the expected lifespan of drives, assisting you in planning future drive replacements to protect against NAS downtime and data loss.

Seagate IronWolf Health Management
When using supported IronWolf or IronWolf Pro hard drives, overall system reliability is improved by providing you with actionable prevention, intervention, and recovery options.
