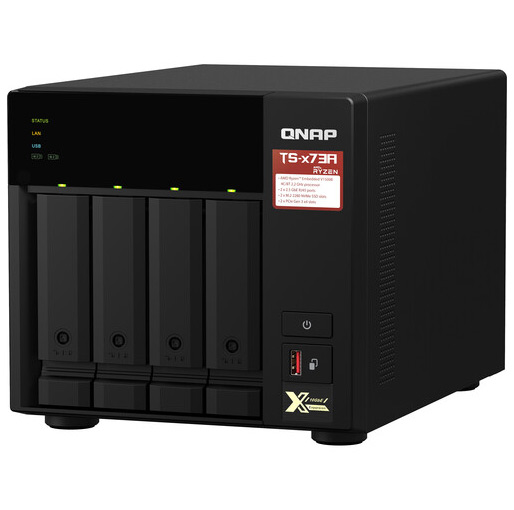

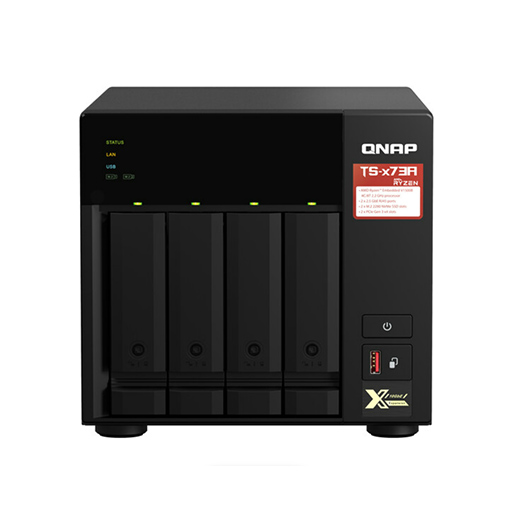

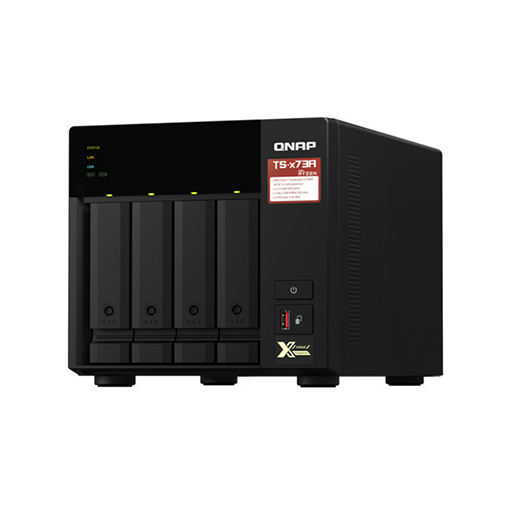

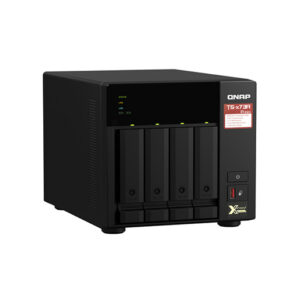

QNAP TS-473A-8G-US 4-Bay NAS Enclosure

QAR 5,109

Availability:

Available on backorder

Delivery within 3 - 4 weeks.( Delivery time may change depending on the stock)
  • 4 x 3.5″ / 2.5″ SATA III Drive Bays
  • 2 x M.2 2280 PCIe Cache Drive Slots
  • 2.2 GHz AMD V1500B Quad-Core CPU
  • 8GB DDR4 RAM
  • 2 x 2.5G Ethernet Ports
  • USB 3.2 Gen 2 & Gen 1 Ports
  • RAID 0, 1, 5, 6, 10, JBOD, Single
  • 2 x PCIe 3.0 x4 Slots
  • QTS 4.5.2 Operating System
  • 4 x 3.5″ / 2.5″ SATA III Drive Bays
  • 2 x M.2 2280 PCIe Cache Drive Slots
  • 2.2 GHz AMD V1500B Quad-Core CPU
  • 8GB DDR4 RAM
  • 2 x 2.5G Ethernet Ports
  • USB 3.2 Gen 2 & Gen 1 Ports
  • RAID 0, 1, 5, 6, 10, JBOD, Single
  • 2 x PCIe 3.0 x4 Slots
  • QTS 4.5.2 Operating System

QAR 5,109

Available on backorder

Order By Call

Order now & Get it delivered Today!!

CPU 2.2 GHz Quad-Core
Processor AMD Ryzen V1500B
Total Installed Memory 8 GB DDR4
User-Replaceable Memory 1 x 8 GB
Total Memory Slots 2 x SO-DIMM
Maximum Memory Capacity 64 GB
General
Number of Bays 4 x 2.5″/3.5″
2 x M.2 (2280)
I/O 2 x RJ45 (2.5GbE)
3 x USB Type-A (USB 3.1 / USB 3.2 Gen 2 (10 Gb/s))
1 x USB Type-C (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
Compatible Drive Interface SATA II, SATA III
Form Factor Desktop
RAID RAID 0, 1, 10, 5, 6, JBOD, Single
Hot-Swap Support Yes
PCI Expansion 2 x PCIe 3.0 (x4 Electrical)
Wake on LAN Yes
Link Aggregation and Failover Support Yes
Networking
Supported Protocols AFP
CIFS/SMB
FTP
FTPS
HTTP
HTTPS
IPv4
IPv6
L2TP/IPSec
SFTP
SMTP
SNMP v2
SNMP v3
SSH
SSL
TFTP
Telnet
WebDAV
iSCSI
Max Groups 4096
Max Volume Number 128
Max Cameras Supported 8
Software
Installed Operating System QTS 4.5.2
Supported File Systems EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
Security
Encryption 256-Bit AES (-Based)
Security Features Password Protection
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 3.5 A
Power Consumption 29.792 W (Typical)
19.576 W (Standby)
PSU Wattage 1 x 250 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 5 to 95%
Operating Altitude -65.6 to 229′ / -20 to 70 m
Physical
Status Monitoring LED Indicator
Audible Alarm Yes
Cooling 1 x Fan
Noise Level 21.4 dBA
Weight 11.1 lb / 5.0 kg

Expand your network storage capacity to support high-speed file sharing and backups with the TS-473A-8G-US 4-Bay NAS Enclosure from QNAP. This desktop NAS enclosure features four 3.5″ SATA III drive bays, and installed drives can be configured in RAID 0, 1, 5, 6, or 10 mode to balance between performance and security, with support for JBOD and Single configurations. Performance can be further enhanced by installing up to two M.2 PCIe solid-state cache drives into the available slots. There are also two PCIe 3.0 x4 slots available for compatible expansions such as low-profile graphics cards to boost video editing performance, high-bandwidth wired or wireless network adapters, M.2 SSD storage cards, and more. The NAS is powered by a 2.2 GHz AMD V1500B quad-core processor with 8GB of memory, which can be expanded to 64GB. With its two 2.5G Ethernet ports, this NAS enclosure is designed to deliver the bandwidth to support intensive file access, large backup and restoration tasks, and media transfers. The TS-473A-8G-US 4-Bay NAS Enclosure runs on the QTS 4.5.2 operating system.

PCIe Expansion

Two PCIe 3.0 x4 slots are available for compatible expansions such as high-speed network interface cards, USB adapters, and graphics cards.

USB 3.2 Gen 2 Support
Connect compatible peripherals to the three USB 3.2 Gen 2 Type-A ports to transfer up to 10 Gb/s directly to the NAS. A 5 Gb/s USB 3.2 Gen 1 Type-C port is also available.

QTS Operating System
The app-based QTS operating system supports a variety of useful applications to support your workflow, including the powerful Qsirch file search tool. Boxafe can be used to back up your files, emails, calendars, and contacts. The AI-driven QuMaggie photo management app can automatically organize your photos for easy searching and sharing.
