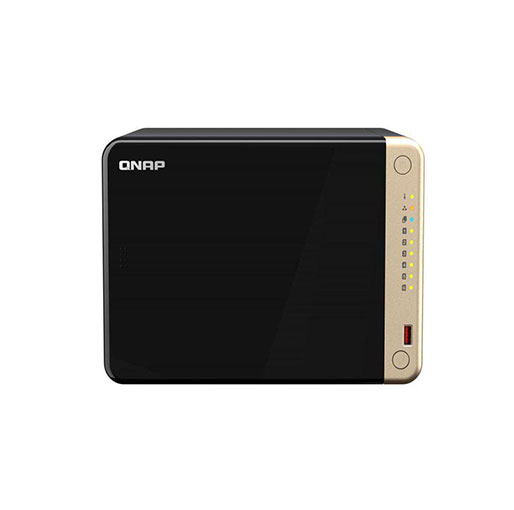

QNAP TS-664-4G dual 2.5gbe NAS

QAR 4,480

Availability:

Available on backorder

Delivery within 3 - 4 weeks.( Delivery time may change depending on the stock)
  • Intel ® Celeron ® N5105/n5095 quad core processor
  • 4GB SO-DIMM DDR4 (1x4GB)upto 16GB(2x8GB)
  • built in 2 x m.2 2280 PCIe Gen 3 x1
  • provide two 2.5gbe network ports
  • 10/5gbe can be installed with PCIe slot Qm2 expansion card or wireless network card
  • provide 1xhdmi 2.0 4K video playback and instant shift
  • Intel ® Celeron ® N5105/n5095 quad core processor
  • 4GB SO-DIMM DDR4 (1x4GB)upto 16GB(2x8GB)
  • built in 2 x m.2 2280 PCIe Gen 3 x1
  • provide two 2.5gbe network ports
  • 10/5gbe can be installed with PCIe slot Qm2 expansion card or wireless network card
  • provide 1xhdmi 2.0 4K video playback and instant shift

QAR 4,480

Available on backorder

Order By Call

Order now & Get it delivered Today!!

CPU Intel® Celeron® N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture 64-bit x86
Graphics Processors Intel® UHD Graphics
Floating Point Unit
Encryption Engine (AES-NI)
Hardware-accelerated Transcoding
System Memory 4 GB SO-DIMM DDR4 (1 x 4 GB)
Maximum Memory 16GB (2 x 8GB)
Memory Slot 2 x SO-DIMM DDR4

For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 6 x 3.5-inch SATA 6Gb/s

The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
M.2 Slot 2 x M.2 2280 PCIe Gen 3 x1
SSD Cache Acceleration Support
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 1
Slot 1: PCIe Gen 3 x2
USB 2.0 port 2
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A
IR Sensor (Optional QNAP RM-IR004 remote control)
HDMI Output 1, HDMI 2.0
Form Factor Tower
LED Indicators Power/Status, LAN, USB, HDD1-6
Buttons Power, USB copy, Reset
Dimensions (HxWxD) 168 × 235 × 226 mm.
Weight (Net) 2.9 kg
Weight (Gross) 4.56 kg
Operating Temperature 0 ~ 40˚C (32˚F ~ 104˚F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 120W adapter, 100-240V
Power Consumption: HDD Sleep Mode 18.634 W
Power Consumption: Operating Mode, Typical 35.437W

Tested with drives fully populated.
Fan 2 x 90mm, 12VDC
System Warning Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 1,500

Intel ® Celeron ® N5105/n5095 quad core processor 4GB SO-DIMM DDR4 (1x4GB) upto 16GB (2x8GB) built in 2 x m. 2 2280 PCIe Gen 3 x1 provide two 2.5 gbe network ports 10/5gbe can be installed with PCIe slot Qm2 expansion card or wireless network card provide 1xhdmi 2.0 4K video playback and instant shift it can connect up to 2 sets of QNAP tr-004 or 8-bay tl-d800c usb 3.2 gen2 JBOD, or 16-bay tl-d1600s sata6gb/s JBOD CPU Intel ® Celeron ® N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz CPU architecture 64 bit x86 Graphics processor Intel ® UHD Graphics Floating point operation yes Encryption engine Yes (aes-ni) Hardware acceleration shift yes System memory 4 GB SO-DIMM DDR4 (1 x 4 GB) Maximum memory 16 GB (2 x 8GB) Memory socket 2 SO-DIMM DDR4 Flash memory 4GB (dual boot OS Protection) Number of hard disk slots 6 x 3.5 -inch SATA 6gb/s Support hard disk type 3.5 -inch SATA hard disk 2.5 inch SATA hard disk 2.5 inch SATA solid state hard disk Hot plug support yes M.

2 Slot 2 x M. 2 2280 PCIe Gen 3 x1 SSD cache acceleration support yes 2.5 Gigabit Ethernet port ( 2.5G /1G/100M) 2 (also support 10M) Wake on network (WOL) yes Macroframe packet yes PCIe expansion slot 1
Slot1: PCIe Gen 3 x2 USB 2.0 port 2 USB 3.2 Gen 2 (10Gbps) connection port-level 2 x Type-A Infrared (IR) receiver Yes (optional QNAP rm-ir004 remote control) HDMI output 1, HDMI 2.0 Outline specification table type LED power / status, network, USB, HDD 1-6 Button power, USB copy, system reset Dimension (H x W x D) 168 × two hundred and thirty-five × 226 mm Weight (net weight) 2.9 kg Weight (gross weight) 4.56 kg Operating temperature 0 ~ 40 C (32 F ~ 104 F) Storage temperature -20 – 70 ° C (-4 ° F – 158 ° f) Relative humidity 5-95% RH (non condensing), wet
bulb: 27 C ( 80.6 F) Power supply 120W transformer, 100-240V
Powerconsumption: hard disk sleep mode 18.634 w
Powerconsumption: operation mode, typical value 35.437 w 2 fans (90mm), 12VDC System warning buzzer
