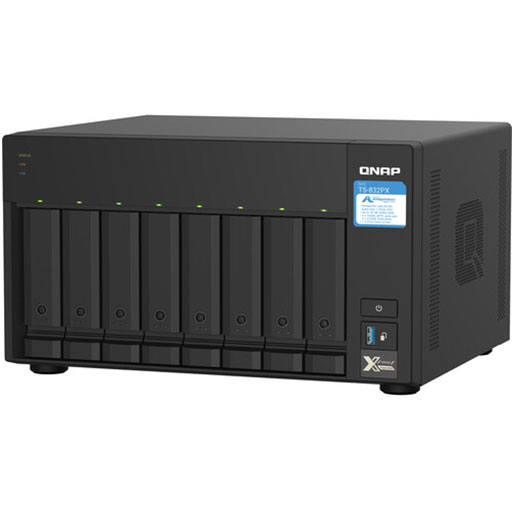

QNAP TS-832PX-4G 8-Bay NAS Enclosure

QAR 5,602

Availability:

Available on backorder

Delivery within 3 - 4 weeks.( Delivery time may change depending on the stock)
  • 8 x 2.5/3.5″ SATA III Drive Bays
  • 1.7 GHz ARM Cortex-A57 Quad-Core CPU
  • 4GB DDR4 RAM
  • 2 x 2.5GbE Ports, 2 x 10GbE SFP+ Ports
  • 3 x USB 3.2 Gen 1 Ports
  • RAID 0, 1, 10, 5, 50, 6, 60, JBOD & More
  • Supports Read Speeds up to 2349 MB/s
  • Supports Write Speeds up to 814 MB/s
  • AES 256-Bit Volume Encryption
  • QTS 4.4.2 Operating System
  • 8 x 2.5/3.5″ SATA III Drive Bays
  • 1.7 GHz ARM Cortex-A57 Quad-Core CPU
  • 4GB DDR4 RAM
  • 2 x 2.5GbE Ports, 2 x 10GbE SFP+ Ports
  • 3 x USB 3.2 Gen 1 Ports
  • RAID 0, 1, 10, 5, 50, 6, 60, JBOD & More
  • Supports Read Speeds up to 2349 MB/s
  • Supports Write Speeds up to 814 MB/s
  • AES 256-Bit Volume Encryption
  • QTS 4.4.2 Operating System

QAR 5,602

Available on backorder

Order By Call

Order now & Get it delivered Today!!

CPU 1.7 GHz Cortex A57 Quad-Core
Processor Annapurna Labs Alpine AL-324
Total Installed Memory 4 GB DDR4
User-Replaceable Memory 1 x 4 GB
Total Memory Slots 1 x SO-DIMM
Maximum Memory Capacity 16 GB
Flash Memory 512 MB
General
Number of Bays 8 x 2.5″/3.5″
I/O 2 x SFP+ (10GbE)
2 x RJ45 (2.5GbE)
3 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
Compatible Drive Interface SATA II, SATA III
Media Card Slots None
Form Factor Desktop
RAID RAID 0, 1, 10, 5, 50, 6, 60, JBOD, Single
Hot-Swap Support Yes
PCI Expansion 1 x PCIe 2.0 (x2 Electrical)
Wake on LAN Yes
Link Aggregation and Failover Support Yes
Networking
Supported Protocols AFP
CIFS/SMB
FTP
HTTP
SSH
Telnet
WebDAV
iSCSI LUN 256
iSCSI Target 256
Max Concurrent Connections 700
Software
Installed Operating System QTS 4.4.2
Supported File Systems Internal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility macOS 10.10 or Later
Ubuntu 14.4 or Later
CentOS 7 or Later
UNIX
Windows 7 or Later
Windows Server 2008 R2 or Later
*As of October, 2021: check with manufacturer for the most up-to-date compatibility
Supported Languages Brazilian Portuguese
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hungarian
Italian
Japanese
Korean
Norwegian
Polish
Romanian
Russian
Simplified Chinese
Spanish
Swedish
Thai
Traditional Chinese
Turkish
Security
Encryption 256-Bit AES
Security Features Kensington Security Slot
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 3.5 A
Power Source Internal Power Supply
Power Consumption 27.949 W (Standby)
50.858 W (Typical)
PSU Wattage 1 x 250 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 5 to 95%
Storage Temperature -4 to 158°F / -20 to 70°C
Physical
Status Monitoring LED Indicator
Audible Alarm Yes
Cooling 2 x 120 mm Fans
1 x 60 mm Fan
Noise Level 19.6 dBA
Built-In Speakers Yes
Dimensions 13 x 11.1 x 7.4″ / 329.3 x 280.8 x 188.2 mm
Weight 14.1 lb / 6.4 kg without Drives

Supersize and speed up networked storage with the TS-832PX-4G 8-Bay NAS Enclosure from QNAP. Featuring eight drive bays, this NAS enclosure accepts 2.5 or 3.5″ SATA III drives. The Annapurna Labs Alpine AL324 SOC incorporates a 1.7 GHz ARM Cortex-A57 quad-core CPU and utilizes 4GB of DDR4 RAM for efficient processing. Network ports include two 2.5 Gigabit Ethernet RJ45 ports and two 10 Gigabit Ethernet SFP+ ports. Supporting RAID 0, 1, 10, 5, 50, 6, 60, JBOD, and Single modes, the QNAP TS-832PX-4G is capable of read and write speeds up to 2349 and 814 MB/s, respectively. Connect wired accessories via three USB 3.2 Gen 1 Type-A ports. Use the available PCIe 2.0 x2 slot to install various adapter cards, including wireless networking, USB 3.2 Gen 2, or M.2 adapter cards, each available separately.

Optimize performance with support for SSD caching, port trunking, snapshots, multi-point file backup and syncing, smart photo management, file- or block-based cloud storage, and more. Keep data secure with 256-bit AES encryption, a Kensington Lock slot, and audible alarms. Plus, LED indicators allow you to monitor system status and LAN, USB, and drive activity at a glance. Utilizing a desktop form factor, this NAS array features two 120mm system fans a 60mm CPU fan to keep components cool. A rated noise level of 19.6 dBA translates to quiet operation. The QNAP TS-832PX-4G 8-Bay NAS Enclosure runs on the QTS 4.4.2 operating system and is compatible with machines running on Windows 7 or later, Windows Server 2008 R2 or later, and macOS 10.10 or later. It is also compatible with machines running on IBM AIX 7 and Solaris 10 or later UNIX system, and Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12, or later Linux systems.

Qtier Auto-Tiering
Qtier auto-tiering technology and SSD caching enable constant storage optimization.

Energy-Efficient Quad-Core Processor
Powered by a 64-bit quad-core 1.7 GHz ARM Cortex-A57 processor and 4GB of DDR4 RAM (expandable to 16 GB), the TS-832PX remains energy efficient without impacting system or application performance. Using a single 2.5GbE port, this NAS array is capable of read and write speeds up to 254 and 295 MB/s, respectively. Or, use two 2.5GbE ports to achieve read and write speeds up to 490 and 589 MB/s or two 10GbE ports to achieve reads and writes up to 2349 and 814 MB/s.

High-Speed Connectivity
The TS-832PX sports two 10GbE SFP+ and two 2.5GbE LAN RJ45 ports, providing out-of-the-box support for high-speed networking and supporting port trunking and failover to reinforce your network infrastructure. QNAP also provides other high-speed networking solutions, including 10GbE/2.5GbE managed/unmanaged switches and network adapters, allowing you to build a budget-friendly high-speed network environment.

Extend NAS Functionality with a PCIe Card
With a PCIe Gen 2.0 slot, the TS-832PX provides flexibility in extending NAS functionality and potential applications. Optimize system performance by installing a QNAP QM2 card for M.2 SATA or NVMe SSD caching or 10GbE connectivity. Employ Qtier SSD caching for optimal system performance. You can also use a QNAP Wi-Fi 6 (802.11AX) network card to create a wireless environment. Additional options include QXG 5GbE/2.5GbE network adapter cards and USB 3.2 Gen 2 cards, ensuring that the TS-832PX can be upgraded to fit future requirements.

Protect Important Data with Snapshots
Snapshots fully record the NAS system state and metadata and can be used to quickly restore files to previously recorded states if they are accidentally deleted/modified or if the system is compromised by ransomware. QNAP snapshots are block-based and only record modified data. Not only does this save storage space, but it also reduces the time required to back up and restore data. The TS-832PX supports up to 256 snapshots per NAS and up to 64 snapshots per volume or LUN.

Multi-Point File Backup, Access, and Sync
The TS-832PX supports common file sharing protocols including SMB/CIFS, AFP, and NFS for Windows, Mac, and Linux or UNIX devices. Coupled with Qsync, a utility that transforms a QNAP NAS into a secure, high-capacity data center for file synchronization, any file uploaded to the TS-832PX becomes available for all linked devices such as computers, laptops, and mobile devices. Hybrid Backup Sync helps you easily backup or synchronize data on the TS-832PX to another QNAP NAS, remote server, or cloud storage platform including Microsoft One Drive, Google Drive, and Dropbox for disaster recovery.

Smart AI Photo Management
QuMagie integrates QuMagie Core AI image recognition technology for facial recognition, subject identification, and geotagging photos. Similar photos are categorized into People, Places, and Things albums. QuMagie also features a built-in timeline scroll, customizable folder covers, iOS Live Photo display, and a powerful search tool, all to provide you with a comprehensive photo management and image sharing solution.

Low-Latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-832PX, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.

HybridMount
Flexibly expand your storage capacity by connecting to cloud storage via HybridMount, a file-based cloud gateway. Leverage QTS apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

VJBOD Cloud
VJBOD Cloud backs up NAS data to block-based cloud storage. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes are transmitted, making this method ideal for backing up LUN, databases, and confidential files.

Easily Find and Automatically Organize Files
The TS-832PX provides greater convenience for managing files. Quickly find images, music, videos, documents, emails, and other files by using keywords, colors, and different filters via Qsirch. Meanwhile, Qfiling automates file organization or recycling based on self-configured rules for improved work efficiency.

Secure Remote Access to Your QNAP NAS
Use myQNAPcloud Link to access, share, download, and manage files stored on an HQ-based NAS via the internet. This QNAP NAS also supports VPN services for remote workers to access storage and resources on a private network from the Internet. You can also use QVPN Device Client powered by QNAP’s proprietary QBelt protocol to easily connect to your TS-832PX and use measurement tools to know the speed of your VPN connections and connection history.

Flexible and Economical Storage Expansion
QNAP provides several ways to expand the storage capacity of the TS-832PX to accommodate data growth. Hot-swap lower-capacity drives with larger-capacity drives to expand the TS-832PX. Connect two expansion enclosures such as the 4-bay TR-004 or 2-bay TR-002, or one expansion enclosure such as the 8-bay TL-D800C, 4-bay TL-D400S, or 8-bay TL-D800S JBOD and use the Storage & Snapshots Manager to handle NAS capacity expansion. Finally, if you need to migrate to a new NAS array, install your hard drives into a larger QNAP NAS and retain all your existing data and configurations.

QVR Pro
Build a secure surveillance environment without any extra software needed. QVR Pro provides free embedded channels and you can also purchase QVR Pro licenses to deploy a large-scale surveillance network.

Notification Center
Consolidate all QTS system events, alerts, and notifications for easy NAS management, keeping yourself informed of your NAS status at all times.

Security Counselor
This security portal checks for weaknesses and provides recommendations for enhancing NAS security. It also integrates antivirus and anti-malware scanning software.
