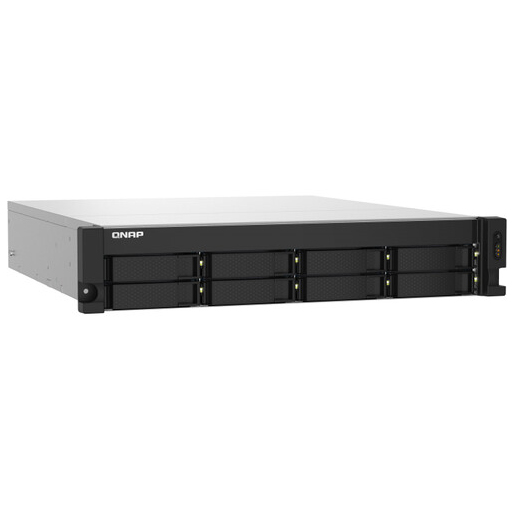

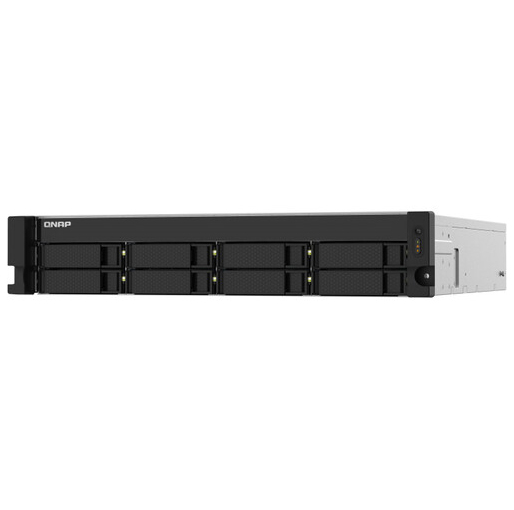

QNAP TS-832PXU-4G 8-Bay NAS Enclosure

QAR 5,748


Available on backorder

Delivery within 3 - 4 weeks.( Delivery time may change depending on the stock)
  • 8 x 2.5″/3.5″ SATA III Drive Bays
  • 1.7 GHz ARM Cortex-A57 Quad-Core CPU
  • 4GB DDR4 RAM
  • 2 x 2.5GbE RJ45 | 2 x 10GbE SFP+
  • USB 3.2 Gen 1 Type-A
  • RAID 0, 1, 5, 6, 10, 50, 60, JBOD
  • Up to 2104 MB/s Read Speeds
  • Up to 649 MB/s Write Speeds
  • QTS 4.4.3 Operating System
  • 8 x 2.5″/3.5″ SATA III Drive Bays
  • 1.7 GHz ARM Cortex-A57 Quad-Core CPU
  • 4GB DDR4 RAM
  • 2 x 2.5GbE RJ45 | 2 x 10GbE SFP+
  • USB 3.2 Gen 1 Type-A
  • RAID 0, 1, 5, 6, 10, 50, 60, JBOD
  • Up to 2104 MB/s Read Speeds
  • Up to 649 MB/s Write Speeds
  • QTS 4.4.3 Operating System

QAR 5,748

Available on backorder

Order By Call

Order now & Get it delivered Tomorrow!!


Total Installed Memory 4 GB DDR4
User-Replaceable Memory 1 x 4 GB
Total Memory Slots 1 x DIMM
Maximum Memory Capacity 16 GB
Flash Memory 512 MB


Number of Bays 8 x 2.5″/3.5″
I/O 2 x RJ45 (2.5GbE)
2 x SFP+ (10GbE)
4 x USB Type-A (USB 3.1 / USB 3.2 Gen 1 (5 Gb/s))
Compatible Drive Interface SATA II, SATA III
Media Card Slots None
Form Factor Rackmount (2 RU)
RAID RAID 0, 1, 10, 5, 50, 6, 60, JBOD, Single
Hot-Swap Support Yes
PCI Expansion 1 x PCIe 2.0 (x2 Electrical)
Wake on LAN Yes
Link Aggregation and Failover Support Yes


Supported Protocols AFP
iSCSI Target 256
Max Concurrent Connections 700
Max Sync Tasks 500
Max Cameras Supported 5000


Installed Operating System QTS 4.4.3
Supported File Systems Internal: EXT4
External: EXT3, EXT4, FAT32, HFS+, NTFS, exFAT
OS Compatibility macOS 10.10 or Later
Windows 7 or Later
Windows Server 2008 R2 or Later
Ubuntu 14.4 or Later
CentOS 7
*As of July, 2021: check with manufacturer for the most up-to-date compatibility
Supported Browsers Chrome, Firefox, Safari


Encryption 256-Bit AES
VPN Client Connections 100


AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Source AC Adapter
Power Consumption 56.412 W (Typical)
PSU Wattage 1 x 250 W


Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 5 to 95%
Storage Temperature -4 to 158°F / -20 to 70°C


Status Monitoring LED Indicator
Audible Alarm Yes
Cooling 2 x 70 mm Fans
Noise Level 24.9 dBA
Built-In Speakers None
IR Sensor None
Dimensions 21.02 x 18.98 x 3.5″ / 533.91 x 482.09 x 88.9 mm
Weight 20.8 lb / 9.4 kg

Expand your small to medium sized business’s network storage capacity for backups, team collaboration, and more with the TS-832PXU-4G 12-Bay NAS Enclosure from QNAP. Install up to twelve 2.5″ / 3.5″ SATA III drives into this 2 RU rackmount enclosure, which supports RAID 0, 1, 5, 6, 10, 50, 60, JBOD, and Single configurations to balance between security and performance. It can reach read and write speeds of up to 2104 MB/s and 649 MB/s, respectively, over the dual 10 Gigabit SFP+ fiber line ports in RAID 5 mode. The two 2.5G RJ45 Ethernet ports can achieve 488 MB/s and 581 MB/s read and write speeds, respectively. Additionally, Qtier technology continually optimizes your data storage between installed solid-state and hard drives for efficient performance.

Boost performance further by installing a multi-Gig network card, an M.2 SSD cache adapter, or other compatible expansion into the PCIe 2.0 x2 slot. Additional features include link aggregation failover and load balancing support and hardware-based AES 256-bit encryption. Connect compatible peripherals such as external storage drives to the USB 3.2 Gen 1 Type-A ports to transfer data at up to 5 Gb/s. This NAS enclosure uses the QTS 4.4.3 operating system to manage its configuration, data, and supported applications.

Featuring a 1.7 GHz Annapurna Labs Alpine AL324 ARM Cortex-A57 quad-core processor with 4GB of DDR4 memory, this NAS enclosure is ideal for high-speed backups and collaborative workflows.

Multi-Gig Connectivity
Connect the dual 2.5G RJ45 Ethernet and two 10G SFP+ ports to compatible devices for bandwidth-intensive tasks with compatible devices such as large backups, data restoration, and media transfers.

Qtier Technology
With Qtier, the TS-832PXU-4G uses auto tiering to continually optimize storage efficiency by automatically moving data between the installed solid-state drives and 2.5″/3.5″ hard drives based on how frequently the files are accessed. The SSD extra over-provisioning feature allows you to allocate 1 to 60% of the reserved space to help avoid performance degradation and extend the lifespan of your SSD.

Hybrid Backup Sync
Hybrid Backup Sync (HBS) technology backs up and syncs your data to other NAS, servers, and cloud storage services for comprehensive disaster recovery planning.

Google Workspace and Microsoft 365 Backup
The TS-832PXU-4G includes QNAP Boxafe, allowing you to automatically back up files, emails, calendars and contacts from Google Workspace and Microsoft 365.

USB Connectivity
Four 5 Gb/s USB 3.2 Gen 1 Type-A ports are available, allowing you to connect compatible devices such as storage drives and other peripherals.
