Network, Networking Accessories

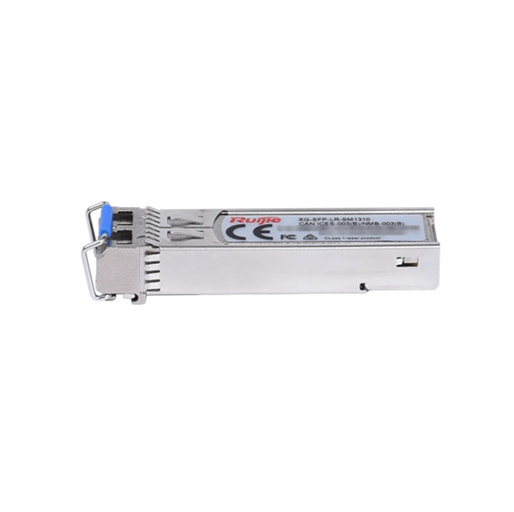

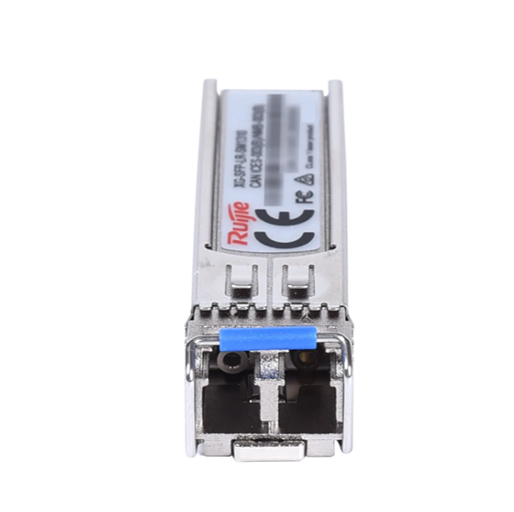

Ruijie XG-SFP-LR-SM1310 10GBASE-LR SFP+ 1310-nm 10-km DOM Duplex LC SMF Optical Transceiver Module
- Max. power consumption 1.5 W
- Hot pluggable SFP+ MSA compliant
- Digital optical monitoring capability for strong diagnostic capabilities
- Compliant with IEEE 802.3z Gigabit Ethernet
- Class 1 Laser safety and RoHS compliant
QAR 359
Order now & Get it delivered Today!!
| Brand | Ruijie |
| Waveleng th (nm) | 1310 |
| DDM | Yes |
| Optical Fiber Type | SMF |
| Intensity of Transmitted Light/dBm | Min -8.2, Max 0.5 |
| Intensity of Received Light/dBm | Min -14.4, Max 0.5 |
| Connect or Type | LC |
| Optical Fiber Type | SMF |
| Modal Bandwidth (MHz.km) | N/A |
| Maximum Cabling Distance | 10KM |
As an industry-leading ICT infrastructure and industry solution provider, Ruijie offers customers a wide variety of high-density and low-power 10G optical modules. They are applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs).The XG-SFP-LR-SM1310 is aligned to IEEE 10GBASE-LR optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with an LC connector. It adopts the SFP+ form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3ae, SFF-8431, SFP+ MSA, and RoHS standards.
