|Integrated 7.1 Surround Sound||yes|
|Tool-free Devices Installation||yes|
|Cable Management System||yes|
|Dimensions (L x W x H)||45.0 x 21.0 x 46.5 cm|
|USB 3.0 (Front)||2|
5.25″ or 3.5″:1
5.25″ to 3.5″ Bay Cover:1
3.5″ or 2.5″:2
|Front Panel||2x 120 mm fan (pre-installed) or radiator (optional)|
|Rear Panel||1x 120 mm LED fan (pre-installed)|
|Top Panel||3x 120 mm or 2x 140 mm fan (optional)|
Mini-ITX, Micro-ATX, ATX
Max. Length Graphics Cards:
Max. Height CPU Cooler:
Max. Length Power Supply:
Max. Height Radiator incl. Fan (Front):
The M25-W has an integrated sound card, which is connected to the ports on the front panel and is perfectly suitable as a second sound source for loudspeakers or headsets. The elementary front panels with their mesh trims make this a suitable case for any gaming setup and a perfect fit in any office. The integrated tunnel keeps things tidy and offers space for power supplies, cabling and data storage drives. There is thus plenty of room for large components as well as for enough fans to provide the best airflow.
Virtual 7.1 Sound. The M25-W scores points with its integrated sound card. This is connected to the ports on the front panel and is thus especially suitable as a second sound source for loudspeakers or headsets. With the downloadable software, various settings can be made and saved in up to four profiles.

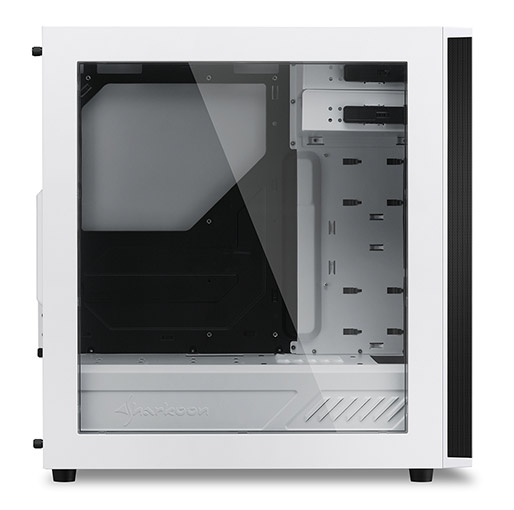

Everything Tidy. The special construction of the M25-W’s interior offers a range of possibilities for discreetly installing various elements of the hardware. The cabling allows itself to be easily integrated in the tunnel, inside of which the power supply and up to three 3.5″ data storage drives will find room. The large acrylic window opens the view to the installed hardware, which is optimally presented in the light of the pre-installed fan.
Optimal Airflow. The M25-W is designed to allow a cool flow of air to be distributed into the inside, while the warmth is conveyed outward through the back of the case. Two 120 mm fans are already pre-installed behind the front panel. An LED fan is pre-installed on the rear panel. As an option, three more fans can be installed under the top panel, or, alternatively, two 140 mm fans. Behind the front panel, a radiator can be installed, if required. Three integrated dust filters protect the installed components from dust and dirt.
Generously Spacious. The optimal design of the inside of the M25-W enables the installation of power supplies with a length of up to 20.5 cm. Graphics cards with a maximum length of 40 cm can also be installed as well as CPU coolers with a height of up to 16.7 cm.
Variable Installation Possibilities. For plenty of data storage, the M25-W has various installation possibilities for different kinds of drive. The case offers two 5.25″ drive bays for optical drives. Alternatively, the supplied 5.25″ front cover with a 3.5″ opening enables one of the bays to be used for the installation of a card reader. In the tunnel at the bottom of the case, up to two 3.5″ drives – or two 2.5″ drives – can be mounted in the HDD/SSD cage. Another 3.5″ HDD can be mounted directly on the bottom panel. There are two locations behind the mainboard tray and another two on top of the tunnel for the installation of 2.5″ HDD/SSDs.
