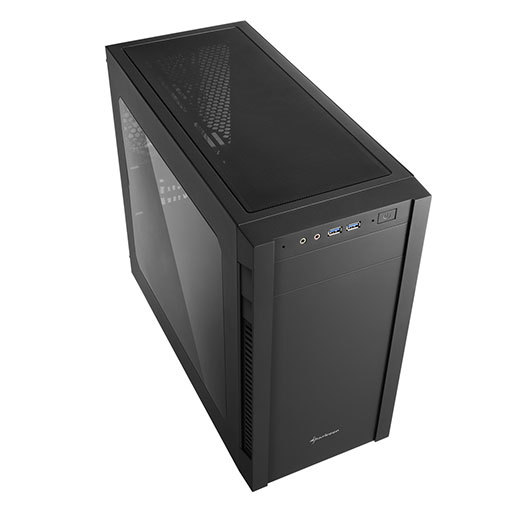

Sharkoon S1000 Window Micro ATX gaming PC Case

The S1000 Window is a compact PC case that scores with a new concept. For the first time, a micro-ATX case has a tunnel incorporated on the bottom panel. The tunnel allows the power supply and hard drives to be installed discreetly and out of sight. Thus, only those components are seen through the acrylic side panel which should be presented in the light of the pre-installed LED fans.

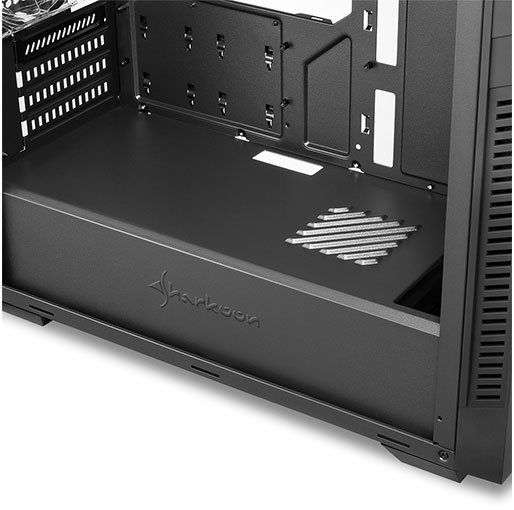

New Interior Concept. The tunnel on the bottom panel of the S1000 Window enables the tidy installation of the power supply together with its cabling. Here, power supplies with a maximum length of 24 cm can be placed next to the HDD/SSD cage, which is also housed in the tunnel. Thanks to the extra-long slots, the cage can be moved into the required position. Several cable pass-throughs ensure that the rest of the cabling can tidily disappear behind the mainboard tray.

Optimal Airflow with LED Highlights. A 120 mm LED fan is pre-installed on the rear panel of the S1000 Window. Another 120 mm fan is pre-installed behind the front panel. If required, a 240 mm radiator can be installed – or even a 280 mm radiator when a drive mount is removed. If additional fans are preferred, these will find locations under the top panel. Here, three 120 mm or two 140 mm fans can be installed. Through the acrylic window on the side panel, the installed components are clearly seen in the atmospheric light of the LED fan.

Various Options for Data Storage Drives. The front panel of the S1000 Window has a removable mount for 5.25″ drives. Here, the supplied 5.25″ front cover with a 3.5″ opening enables the installation of an external 3.5″ device. Two 3.5″ HDDs or two 2.5″ SSDs will find room in the HDD/SSD cage. Two further 2.5″ drives can be accommodated behind the mainboard tray.

Lots of Room Also for Larger Components. Not only data storage drives will find enough room in the S1000 Window. Although the case is very compact, graphics cards can be installed, for example, with a maximum length of 40 cm, or a radiator can be mounted at the front.

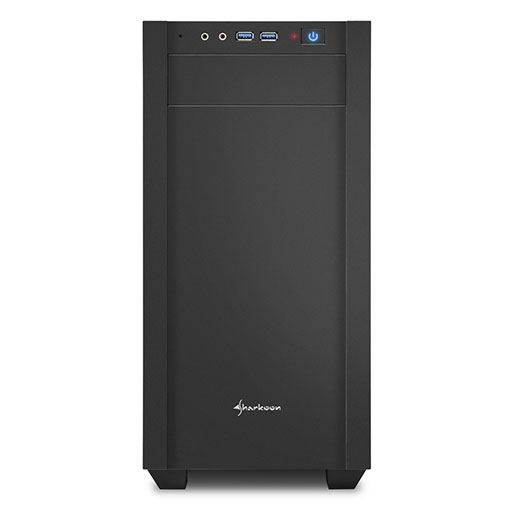

Quick Access on all Sides. The side panels of the S1000 Window are attached with thumbscrews and can be easily removed without the use of tools. The cableless front panel is easy to detach and thus simplifies the installation of drives as well the cleaning of the front dust filter.

Compatibility

Mainboard: Mini-ITX, Micro-ATX

Max. Length Graphics Cards: 40 cm

Max. Height CPU Cooler: 15 cm

Max. Length Power Supply: 24 cm

Max. Height Radiator incl. Fan (Front): 5.9 cm
