|Expansion Slots|| 7
|Tool-free Devices Installation|| ✓
|Cable Management System||✓|
|Side Panel||Tempered glass 4 mm|
|Color Versions||Red, Green, Blue, White|
|Weight & Dimensions|
|Dimensions (L x W x H)||45.2 x 22.0 x 46.5 cm|
|USB 3.0 (Top)||2|
|USB 2.0 (Top)||2|
|3.5″ or 2.5″||2|
|Front Panel||3x 120 mm LED fan (pre-installed) or radiator (optional)|
|Rear Panel||1x 120 mm LED fan (pre-installed)|
|Top Panel||3x 120 mm or 2x 140 mm fan (optional)|
|Mainboard||Mini-ITX, Micro-ATX, ATX|
|Max. Length Graphics Cards||40.0 cm|
|Max. Height CPU Cooler||16.7 cm|
|Max. Length Power Supply||20.5 cm|
|Max. Height Radiator incl Fan (Front)||5.5 cm|

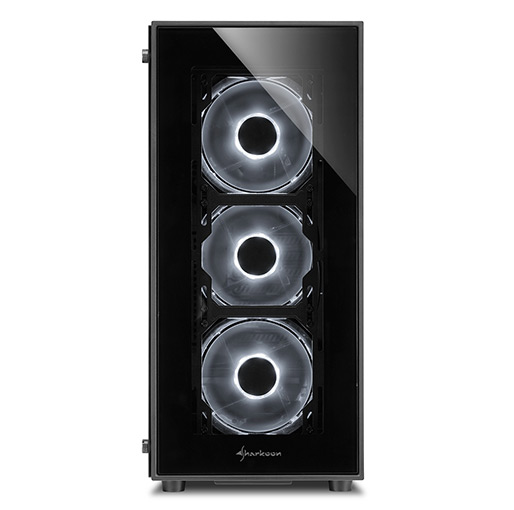

The TG5 ATX midi tower is ideal for all hardware enthusiasts who want to show what they have. The front and side panels made of tempered glass are the optimal showcase for presenting your installed hardware. Three pre-installed 120 mm LED fans in the front and another 120 mm LED fan on the back of the case provide the right lighting. And, so nothing distracts from the essentials, the case interior provides numerous possibilities to make power supply, cables and storage drives disappear from view.
Hardware in the Spotlight. Three LED fans behind the front panel and another on the back panel are already pre-installed, providing an atmospheric illumination and color accents for your PC build. Of course, apart from appearances, the fans cool the hardware with a continual flow of air – which can be supplemented with additional cooling if required.

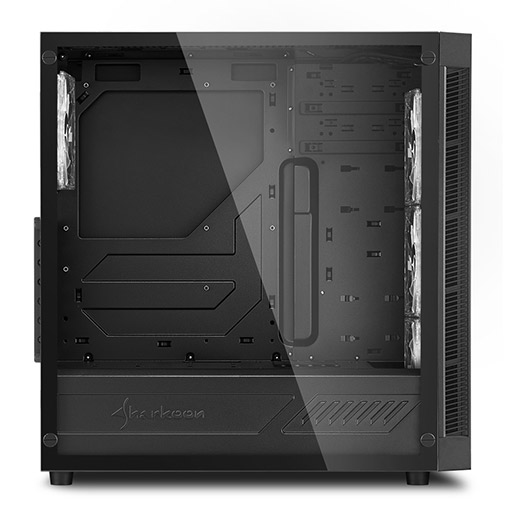

Transparent Design. The distinctively minimalist design and the almost all-round transparency of the case are provided by the front and side panels made of tempered glass – and, in contrast to typical PC cases, the TG5 only represents the framework for the installed hardware inside. In addition, the pre-installed LED fans provide lit highlights for your build and cool components with a good airflow.
Ready for Water Cooling. The TG5 is especially developed for high-performance systems with water cooling. In the front, instead of the pre-installed LED fans, there is space for a 360 mm radiator with a total height (including fans) of 5.5 cm. If air cooling is preferred, there are additional installation options for up to three 120 mm fans or two 140 mm fans on the top panel of the case.
Best of Space for Components. Designed for high-end hardware, the TG5 offers space for long graphics cards up to 40 cm as well as large CPU coolers with a height of up to 16.7 cm and power supplies with a maximum length of 20.5 cm. Of course, HDDs and SSDs are also well catered for: up to three 3.5″ or up to four 2.5″ drives will find space inside.
Clean and Tidy. For the orderly cabling of all components, the TG5 has various cable pass-throughs as well as a power supply tunnel, allowing a clear and tidy presentation of the hardware. In addition, all areas of air-intake are protected with removable dust filters. For easy component installation, fans and drives can be flexibly positioned using the extra-long slots within the case.
