Hardware | |
Module name | Teltonika TM2500 |
Technology | GSM/GPRS/GNSS/Bluetooth (4.0 + LE) |
GNSS | GPS, GLONASS, GALILEO, BEIDOU |
Receiver | 33 channel |
Tracking sensitivity | -165 dBm |
Accuracy | < 3 m |
Hot / Warm / Cold start | < 1 / < 25 / < 35 s |
Cellular technology | GSM |
2G bands | Quad-band GSM 850 / 900 / 1800 / 1900 MHz |
Data transfer | GPRS Multi-Slot Class 12(up to 240 kbps) GPRS Mobile Station Class B |
Data support | SMS (text/data) |
Power | 3.8 V 800 mAh rechargeable Li-ion battery |
Interface | |
GNSS antenna | Internal High Gain |
GSM antenna | Internal High Gain |
Bluetooth antenna | Internal High Gain |
Sensors | Accelerometer |
USB | 4 pin magnetic USB Cable |
Interface | TM2500 module, Internal Micro-SIM Slot, 128 MB internal flash memory (220‘000 records) |
Buttons | 2 configurable buttons |
Indication | RGB LED, Vibration |
Software | |
Configuration and firmware update | FOTA WEB (cloud based solution), Teltonika Configurator (USB, Bluetooth), Configuration through SMS |
Scenarios | Alarm button, Man-down detection, Home zone, Inside tracking, Movement/No Movement Events, 50 Manual Geofence zones, Over Speeding, Action on call feature, Real Time tracking, Smart algorithm of GPRS data sending for GPRS traffic saving, Asset tracking |
Sleep modes | Online Deep Sleep, Deep Sleep, Ultra Deep Sleep, Low power mode |
Protocols | UDP/TCP/SMS |
Data sending | Primary, Duplicate and Backup servers |
Security | Configuration password, SMS login and password, Authorized GSM numbers list, TLS |
Time Synchronization | GNSS, NITZ, NTP |
Supported peripherals | Bluetooth LE Movement sensors, LE Magnet sensors, LE Temperature and Humidity sensors and LE Temperature sensors support, iBeacon and Eddystone beacon support. |
Physical Specifications | |
Dimensions | 44 x 43 x 20 mm (L x W x H) |
Ingress Protection Rating | IP67 |
Certification & Approvals | |
Regulatory | CE/RED, EAC, RoHS, REACH, ANATEL (pending), UKCA (pending) |
GPS Tracking, Network, Networking Devices

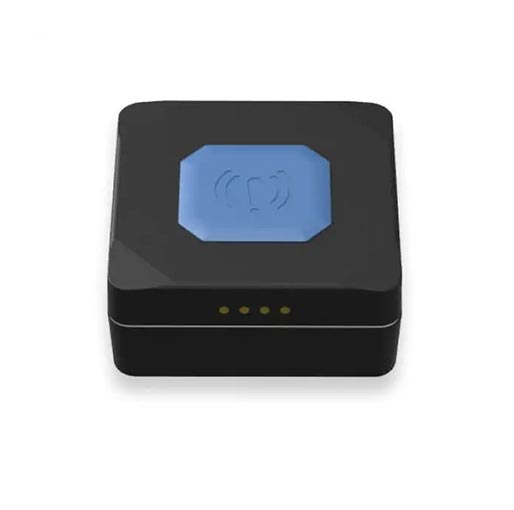

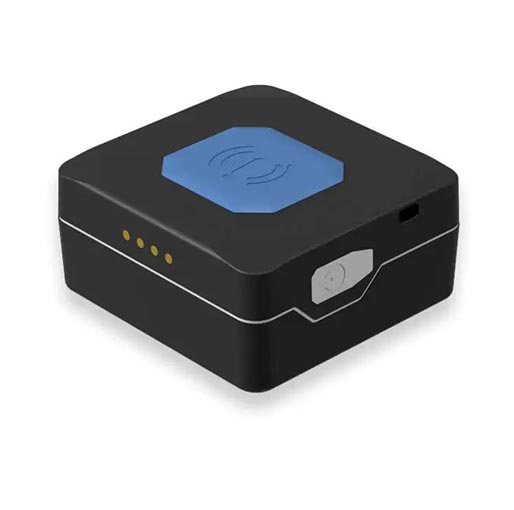

Teltonika TMT250 – Autonomous GPRS GNSS Bluetooth tracker
- Easy to reach alarm button, instant messaging in case of emergency
- Automated emergency alarm for no movement scenarios
- Low power sensors and BLE Beacon support for various use cases
- Dimensions only 44x43x20 mm. It can be easily hidden and work for long hours
- Real time monitoring of employee location
- WEB FOTA – Manage and update your devices in a web-based portal
Order now & Get it delivered Today!!
Teltonika TMT250 is an autonomous personal tracker with GNSS, GSM and Bluetooth connectivity. Our mini tracker is designed for the monitoring of people, pets and cars. It can also be applied for employee control, security staff at the sport events and other use cases to ensure security and control. IP67 waterproof case provides convenient usage, even in harsh conditions. The large battery‘s capacity expands the application range where long battery life is needed. Also, TMT250 supports firmware and configuration update via Fota WEB.
