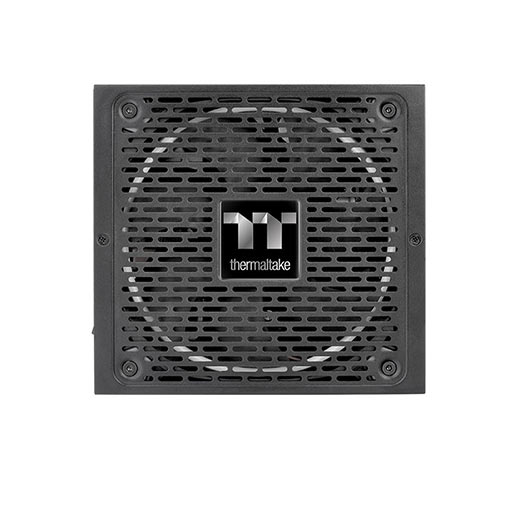

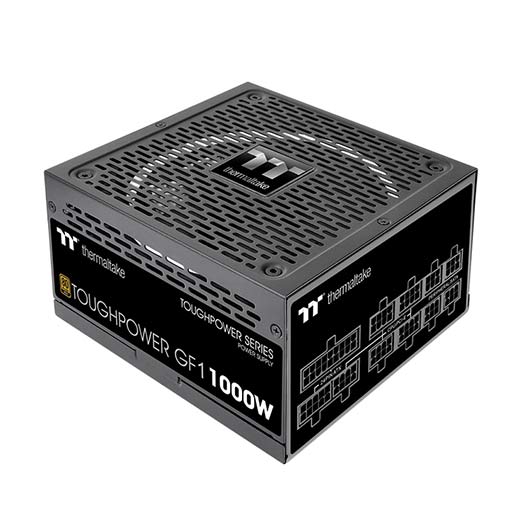

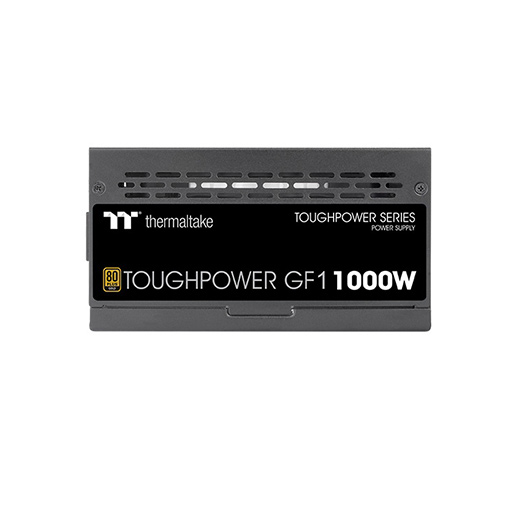

Thermaltake Toughpower GF1 1000W 80+ Gold Analog Controlled SLI Full Modular Power Supply

QAR 899

Availability:

Only 1 left in stock


  • Durable Chassis
  • Anti-Vibration Mounting System
  • DC to DC Design
  • Modular Cable Management
  • Side Ventilation Design
  • Concentrated Compression Fan Blade
  • 100% High Quality Japanese 105°C / 221°F Capacitors
  • Zero Cable Platform
  • Durable Chassis
  • Anti-Vibration Mounting System
  • DC to DC Design
  • Modular Cable Management
  • Side Ventilation Design
  • Concentrated Compression Fan Blade
  • 100% High Quality Japanese 105°C / 221°F Capacitors
  • Zero Cable Platform

QAR 899

Only 1 left in stock

Order By Call

Order now & Get it delivered Today!!

P/N PS-TPD-1000FNFAGx-1
watts 1000W
Form Factor ATX
Model TTP-1000AH3FCG
Max. Output Capacity 1000W
Peak Output Capacity 1200W
Color Black
Dimension ( W / H / D ) 150mm(W) x 86mm(H) x 160mm(D)
Weight 1.8kg
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 16msec at 100% of full load
Input Current 15A max
Input Frequency Range 50Hz /60Hz
Input Voltage 100V – 240V~
Operating Temperature 0°C to + 50°C
Operating Humidity 20% to 90%,non-condensing
Storage Temperature -20°C to + 70°C
Storage Humidity 5% to 95%, non-condensing
COOLING SYSTEM 14cm hydraulic bearing fan
Efficiency Meet 80 PLUS®Gold at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval CE/cTUVus/TÜV/FCC/BSMI/EAC
PCI-E 6+2pin 6
Protection OCP, OVP, OPP, SCP, OTP

Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

Ultra Quiet 140mm Hydraulic Bearing Fan

Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.

30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation ±2%
The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

Premium Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

CYBENETICS – EFFICIENCY LEVEL CERTIFICATION – GOLD
Toughpower GF1 1000W is certified to CYBENETICS GOLD in 115V and 230V input in terms of efficiency level. The overall efficiency rating is defined as ≥87% & <89% of 115V input and ≥89% & <91% of 230V input. There are six ETA certifications, covering an efficiency range from 82%. Besides the overall efficiency of a PSU, ETA also takes into account its overall Power Factor readings along with the efficiency of the 5VSB rail and the power that the unit consumes in standby (also called phantom power).

CYBENETICS – NOISE LEVEL CERTIFICATION – A+
Toughpower GF1 1000W is certified to CYBENETICS A+ in 115V and 230V input in terms of the noise level. There are seven noise level certifications, covering from dead silent PSUs (<15db[A]) to quiet noisy ones(>40 db[A]). We use a solid methodology and states of the art equipment to measure the noise that a PSU outputs throughout its entire operation range, from almost zero noise output to full load
