HARDWARE FEATURES |
|
|
Processor |
1.8 GHz quad-core CPU and three co-processors |
|
Memory |
512 MB |
|
Standards and Protocols |
802.11a/b/g/n/ac, 802.3ab |
|

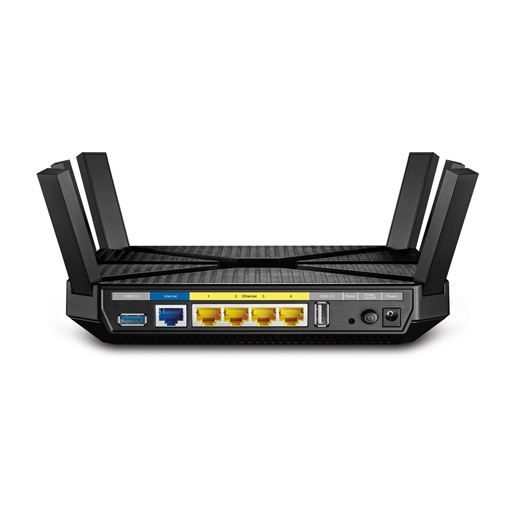

Ports |
1x GE WAN 4x GE LAN 1x USB 2.0 1x USB 3.0 |
|
Button |
1x Power 1x Wi-Fi On/Off 1x WPS 1x Reset 1x LED On/Off |
|
LED Panel |
1x Power 1x 2.4 GHz 1x 5 GHz-1 1x 5 GHz-2 1x Ethernet 1x Internet 1x WPS 1x USB 2.0 1x USB 3.0 |
|
Weight |
1.79 lb 0.81 kg |
|
Dimensions ( W x D x H ) |
7.9 x 7.9 x 1.5 in |
|
Dimensions |
200 x 200 x 39 mm |
|

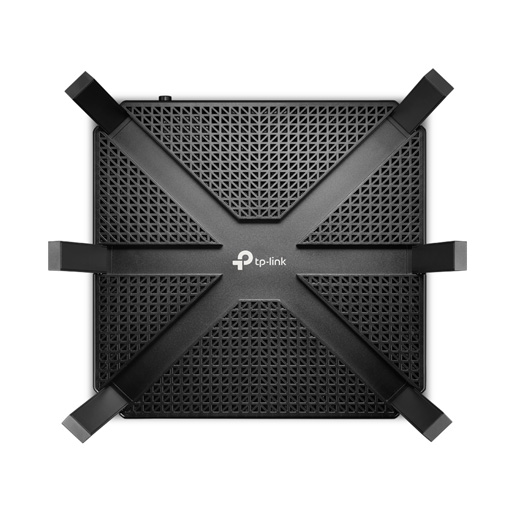

Antenna |
6 external antennas |
|
Wi-Fi Chipset Features |

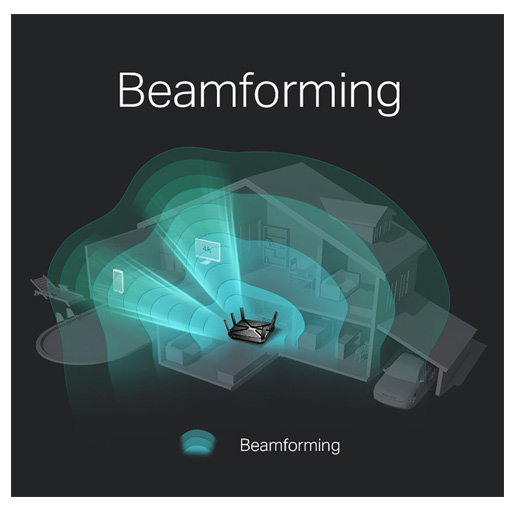

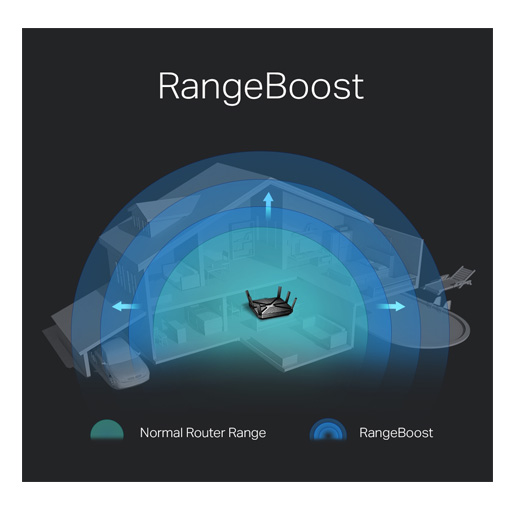

MU-MIMO Beamforming Airtime Fairness RangeBoost NitroQAM |
|
WIRELESS FEATURES |
|
|
Signal Rate |
750Mbps @ 2.4GHz 1625Mbps @ 5GHz 1625Mbps @ 5GHz |
|
SOFTWARE FEATURES |
|
|
System Tools |
Time Settings Diagnostics Fw OTA Upgrade Config backup/resotre Administration Syslog Statistics LED Control |
|
Basic Function |
Network Map (Internet Status / Client List / Speedtest) Internet Settings Wireless Settings USB Sharing Settings (USB Storage Sharing / FTP Server / Print Server / Media Server) HomeCare (Parental Control / Antivirus / QoS) Guest Network Settings TP-Link Cloud Settings Multiple Languages |
|
Protocols |
IPv4, IPv6 |
|
Advanced Functions |
Working Mode (Router Mode or AP Mode) Wireless Schedule Time Machine TP-Link DDNS Parental Controls/Antivirus/QoS IPv6 VPN Server (OpenVPN and PPTP Servers) NAT Forwarding (DMZ / UPnP) Link Aggregation (WAN / LAN) Airtime Fairness Smart Connect |
|
Supported Operating Systems |
OS Independent Up to Windows 10, Mac OS 10.12 and Linux |
|
SECURITY |
|
|
Attack Defense |
Malicious Content Filter Intrusion Prevention System Infected Device Quarantine |
|
Access Control |
Device-based whitelist / blacklist |
|
Wi-Fi Security |
Open WEP WPA-PSK WPA2-PSK |
|
Firewall Features |
Malicious Content Filter Intrusion Prevention System Infected Device Quarantine |
|
OTHERS |
|
|
Smartphone/Tablet Requirements |
Andriod 4.1 or higher iOS 8 or higher |
|
Certifications |
FCC CE CE DFS |
|
Power Supply |
100-240V 50/60Hz |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
