WIRELESS | |
---|---|
Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds | AX11000 5 GHz: 4804 Mbps (802.11ax, HE160) 5 GHz: 4804 Mbps (802.11ax, HE160) 2.4 GHz: 1148 Mbps (802.11ax) |
WiFi Range | 4-6 Bedroom Houses 8× Detachable High-Performance Antennas Beamforming High-Power FEM 4T4R |
WiFi Capacity | Very High Tri-Band 4×4 MU-MIMO OFDMA Airtime Fairness DFS 12 Streams |
Working Modes | Router Mode Access Point Mode |
HARDWARE | |
---|---|
Processor | 1.8 GHz 64 Bit Quad-Core CPU |
Ethernet Ports | 1× 2.5 Gbps WAN Port 8× Gigabit LAN PortsStatic Link Aggregation (LAG) available with 2× LAN ports |
USB Support | 1× USB-C 3.0 Port 1× USB-A 3.0 PortSupported Partition Formats: NTFS, exFAT, HFS+, FAT32Supported Functions: Apple Time Machine FTP Server Media Server Samba Server |
Buttons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
Power | 12 V ⎓ 5 A |
SECURITY | |
---|---|
WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer GatewayHomeCare™ Antivirus Malicious Site Checker |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
VPN Server | OpenVPN PPTP |
SOFTWARE | |
---|---|
Protocols | IPv4 IPv6 |
Game Center | Game Accelerator Detects and optimizes gaming streams to keep latency as low as possibleGame Statistics Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detailGame Protector Keep your accounts and system safe with HomeCare™ antivirus protection |
Service Kits | HomeCare™ Learn More> |
OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
Parental Controls | HomeCare™ Parental Controls Custom Profiles |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | Game Accelerator QoS QoS by DeviceHomeCare™ QoS QoS by Application |
Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link NO-IP DynDNS |
Management | Tether App Webpage Check Web Emulator> |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 11.3 × 11.3 × 7.2 in (288 × 288 × 184 mm) |

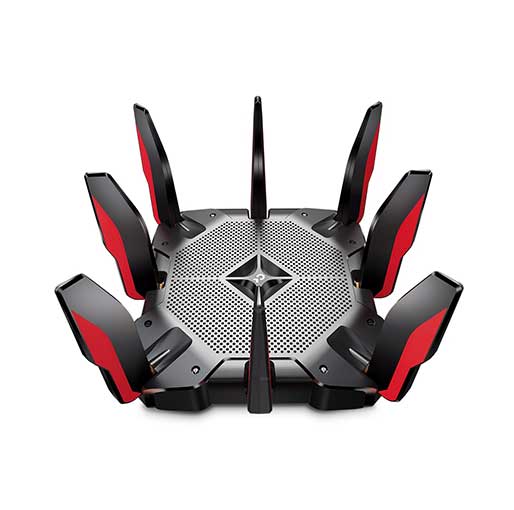

Package Contents | Wi-Fi Router Archer AX11000 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
OTHER | |
---|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | FCC, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
