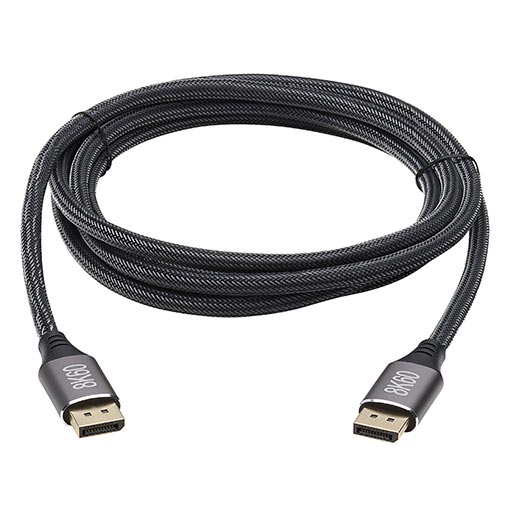

Tripp Lite DisplayPort 1.4 Cable – 8K UHD @ 60 Hz, HDR, HBR3, HDCP 2.2, 4:4:4, BT.2020, M/M, Black, 9 ft. (2.74 m)

QAR 129

Availability:

Out of stock

SKU: P580-009-8K6

Categories: ,

  • Supports UHD resolutions up to 8K @ 60 Hz (4:4:4) for heightened video quality
  • Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
  • Complies with HDCP 2.2 standards to display up-to-date 4K video content
  • Improves maximum bandwidth to enable enhanced HBR3 applications
  • Plug-and-play operation with no software required for easy, immediate installation
  • Supports UHD resolutions up to 8K @ 60 Hz (4:4:4) for heightened video quality
  • Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
  • Complies with HDCP 2.2 standards to display up-to-date 4K video content
  • Improves maximum bandwidth to enable enhanced HBR3 applications
  • Plug-and-play operation with no software required for easy, immediate installation

QAR 129

Out of stock

Order now & Get it delivered Today!!

Brand Tripp Lite
Technology DisplayPort
VIDEO
Max Supported Video Resolution 7680 X 4320 60HZ (8K)
Max Supported Color Depth 24-bit True Color
HDR Support Yes
3D Video Supported Yes
Chroma Sub Sampling 4:4:4
INPUT
Bus Powered Yes
PHYSICAL
Color Black
Cable Outer Diameter (OD) 6.8MM
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Cable Length (m) 2.7
Ferrite Core No
Material of Construction PVC
Shipping Weight (kg) 0.18
ENVIRONMENTAL
Operating Temperature Range 14 to 122 F (-10 to 50 C)
Storage Temperature Range 5 to 140 F (-15 to 60 C)
Operating Humidity Range 0% TO 90% RH, NON-CONDENSING
Storage Humidity Range 0% TO 90% RH, NON-CONDENSING
COMMUNICATIONS
EDID Compatible Yes
Consumer Electronics Control (CEC) Supported Yes
CONNECTIONS

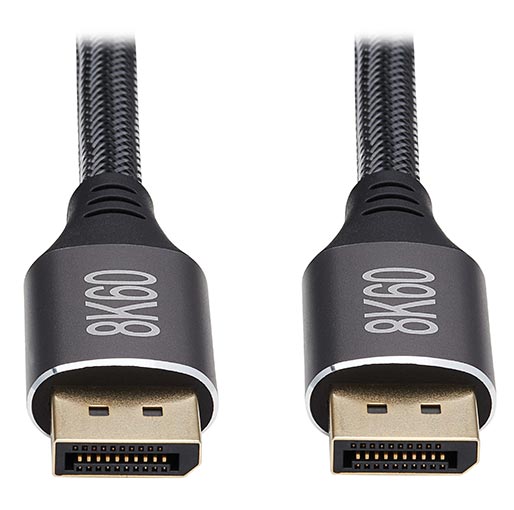

Side A – Connector 1 DISPLAYPORT (MALE)
Side B – Connector 1 DISPLAYPORT (MALE)
Connector Plating Gold
Contact Plating Gold
FEATURES & SPECIFICATIONS
Displayport Specification 1.4
HDCP Specification 2.2
SPECIAL FEATURES
Fully Molded Connector Ends No
Ohms No
EMI/RFI Line Noise Protection No
Integral Strain Relief No
Impedance-Matched Twisted-Pair Construction No
DIN Mountable No
Integrated/Removable Cable No
MST Support No
Scaler Function No
IP67 Rated No
STANDARDS & COMPLIANCE
Certifications RoHS, REACH

8K DisplayPort cable connects your source and display devices to transmit enhanced 8K UHD audio/video with HDR and 4:4:4 chroma.

DisplayPort 1.4 Cable Gets Your Gaming, Home Theater or Digital Signage Setup 8K-Ready
This high-speed DisplayPort (DP) cable (M/M) securely connects source and display devices compatible with DP 1.4 audio/video signals. Backward compatible with all your existing DisplayPort devices, including Blu-ray players, game consoles and 4K televisions, the P580-009-8K6 is ideal for future-proofing your high-definition or UHD A/V application in anticipation of an 8K upgrade. Its HBR3 data rate supports a large bandwidth, allowing for 8K @ 60 Hz resolutions.

Enjoy the Clarity of 4K/8K Video with Multi-Channel Audio and 4:4:4 Color
The P580-009-8K6 supports 8K UHD resolutions up to 7680 x 4320 at 60 Hz with multi-channel sound. It’s compatible with DisplayPort 1.4 standards for carrying HDR, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This BT.2020-compatible cable also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Invest in Quality Construction for Reliable Performance
You’re expecting this 8K cable to last a long time, which is why it has been constructed with high-quality materials, such as a rugged PVC jacket. Contacts and connectors are gold-plated to resist corrosion. Double shielding reduces line noise (EMI/RFI) that can disrupt signals traveling through the DisplayPort cord.

Typical Applications
Watch 8K video from a compatible Blu-ray player, game console, laptop or tablet on a compatible television, monitor or projector
Connect a Windows laptop to a conference table’s A/V box to give a video presentation on a large screen
Play online or PC video games that display optimal graphics
Send 8K video content to digital signs or point-of-sale displays

Package Includes
P580-009-8K6 DisplayPort 1.4 Cable, 8K UHD @ 60 Hz, M/M, Black, 9 ft.

System Requirements
Both source and display devices must be compatible with 8K standards to watch 8K video
