|Max Supported Video Resolution||7680 X 4320 30HZ (8K)|
|Max Supported Color Depth||36-bit Deep Color|
|3D Video Supported||Yes|
|Chroma Sub Sampling||4:2:0|
|Cable Outer Diameter (OD)||7.3MM|
|Cable Jacket Material||PVC|
|Cable Jacket Rating||VW-1|
|Cable Length (m)||3|
|Material of Construction||PVC, ABS|
|Shipping Weight (kg)||0.23|
|Operating Temperature Range||32 TO 113 F (0 TO 45 C)|
|Storage Temperature Range||14 TO 158 F (-10 TO 70 C)|
|Operating Humidity Range||10% TO 85% RH, NON-CONDENSING|
|Storage Humidity Range||5% TO 90% RH, NON-CONDENSING|
|Side A – Connector 1||DISPLAYPORT (MALE)|
|Side B – Connector 1||DISPLAYPORT (MALE)|
|FEATURES & SPECIFICATIONS|
|Fully Molded Connector Ends||No|
|EMI/RFI Line Noise Protection||No|
|Integral Strain Relief||No|
|Impedance-Matched Twisted-Pair Construction||No|
|STANDARDS & COMPLIANCE|
8K DisplayPort cable connects your DisplayPort 1.4-compatible source and display devices to transmit enhanced 8K UHD audio/video with HDR.
DisplayPort 1.4 Cable Gets Your Gaming, Home Theater or Digital Signage Setup 8K-Ready
This high-speed DisplayPort cable (M/M) securely connects source and display devices compatible with DisplayPort 1.4 audio/video signals. Backward compatible with all your existing DisplayPort devices, including Blu-ray players, game consoles and 4K televisions, the P580-010-V4 is ideal for future-proofing your high-definition or UHD A/V application in anticipation of an 8K upgrade. It flawlessly handles data transfer speeds up to 32 Gbps, which is nearly twice as fast as HDMI 2.0.
Enjoy the Clarity of 4K/8K Video with 4:2:0 Color
The P580-010-V4 supports 8K UHD video resolutions up to 7680 x 4320 at 30 Hz. It’s compatible with DisplayPort 1.4 standards for carrying HDR signals, which provide a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance and 4:2:0 chroma subsampling allow you to stream 4K Amazon and Netflix content with no complications.

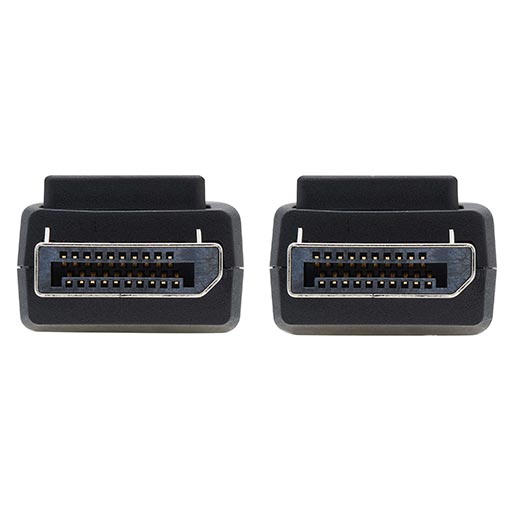

Latching Connectors Help Prevent Accidental Disconnection and Expensive Downtime
Having a cable come loose accidentally can mean costly and time-consuming signal loss. The latching DisplayPort connectors help you avoid such danger, protecting your audio/video transmission by maintaining a secure link without failure. The latching cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the cord always stays connected.
Watch 8K video from a compatible Blu-ray player, game console, laptop or tablet on a compatible television, monitor or projector
Connect a Windows laptop to a conference table’s A/V box to give a video presentation on a large screen
Play online or PC video games that display optimal graphics
Send 8K video content to digital signs or point-of-sale displays

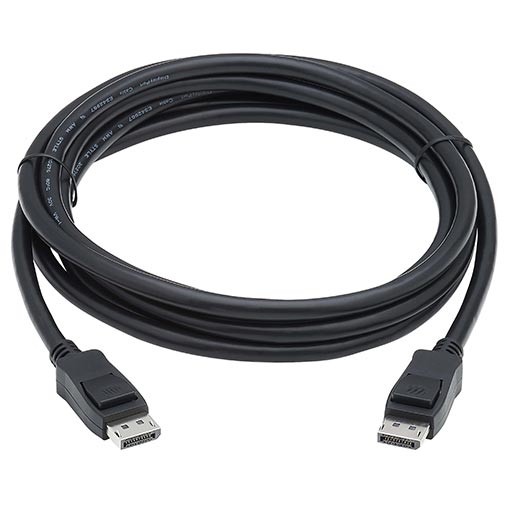

P580-010-V4 DisplayPort 1.4 Cable with Latching Connectors, 8K, M/M, Black, 10 ft.
Both source and display devices must be compatible with 8K standards to watch 8K video
