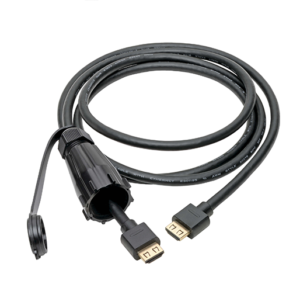

Tripp Lite High-Speed HDMI Cable (M/M) – 4K 60 Hz, HDR, Industrial, IP68, Hooded Connector, Black, 6 ft.

QAR 99

Availability:

In stock

SKU: P569-006-IND

Categories: ,

  • Built to protect HDMI audio/video and Ethernet applications in severe environments
  • IP68-rated cable resists dust and endure immersion in 1.5 m of water up to 60 min.*
  • Supports UHD resolutions up to 4K (4:4:4) for crystal-clear video
  • Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
  • Complies with HDCP 2.2 standards to display up-to-date 4K video content
  • Built to protect HDMI audio/video and Ethernet applications in severe environments
  • IP68-rated cable resists dust and endure immersion in 1.5 m of water up to 60 min.*
  • Supports UHD resolutions up to 4K (4:4:4) for crystal-clear video
  • Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
  • Complies with HDCP 2.2 standards to display up-to-date 4K video content

QAR 99

In stock

Order By Call

Order now & Get it delivered Today!!

VIDEO

Max Supported Video Resolution 3840 x 2160 @ 60Hz
Max Supported Color Depth 48-bit Deep Color
HDR Support Yes
3D Video Supported Yes
Chroma Sub Sampling 4:4:4
EDID Support Yes
Signal Transmission Bidirectional
Bandwidth 10.2 Gbps

AUDIO

Audio Specification ARC

USER INTERFACE, ALERTS & CONTROLS

LED Indicators 0

PHYSICAL

Material of Construction PVC
Color Black
Cable Jacket Color Black
Connector Color Black
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Cable Outer Diameter (OD) 7.3mm
Wire Gauge (AWG) 28
Cable Length (ft.) 6
Cable Length (in.) 72
Ferrite Core No
Minimum Bend Radius 36.5mm
Shipping Dimensions (hwd / in.) 1.00 x 7.00 x 9.50
Shipping Weight (lbs.) 0.35

ENVIRONMENTAL

Operating Temperature Range 14 to 122 F (-10 to 50 C)
Storage Temperature Range 5 to 140 F (-15 to 60 C)
Relative Humidity 0 ~ 90%, Non-Condensing
Operating Humidity Range 0% to 90% RH, Non-Condensing
Storage Humidity Range 0% to 90% RH, Non-Condensing

COMMUNICATIONS

EDID Compatible Yes
Consumer Electronics Control (CEC) Supported Yes

CONNECTIONS

Side A – Connector 1 HDMI (MALE)
Side B – Connector 1 HDMI (MALE)
Connector Plating Gold
Contact Plating Gold
Connector Style Straight
Latching or Gripping Connector Yes

FEATURES & SPECIFICATIONS

HDCP Specification 1.4; 2.2
EMI/RFI Line Noise Protection No
IP68 Rated No
Ingress Protection (IP) Rating IP68
Ethernet Support Yes

STANDARDS & COMPLIANCE

Protection Rating IP68
Product Compliance RoHS; CE (Europe); REACH; FCC (USA)

Industrial-Grade HDMI Cable Recommended for Outdoor or Harsh Indoor Environments
The industrial-grade P569-006-IND (M/M) connects high-speed digital audio/video and Ethernet components in outdoor applications and other areas where protection from harsh elements is essential. The cable and male HDMI connectors are designed to withstand dust, debris and moisture that could threaten your infrastructure. This rugged cable is ideal for industrial areas, such as factories and warehouses, and unforgiving outdoor installations, including malls, bus stops and stadiums. For best performance, use the cable with a Tripp Lite industrial coupler, surface mount box and/or face plate. Check the web manual for a list of products that can be used.

IP68-Rated Cable Resists Dust and Water

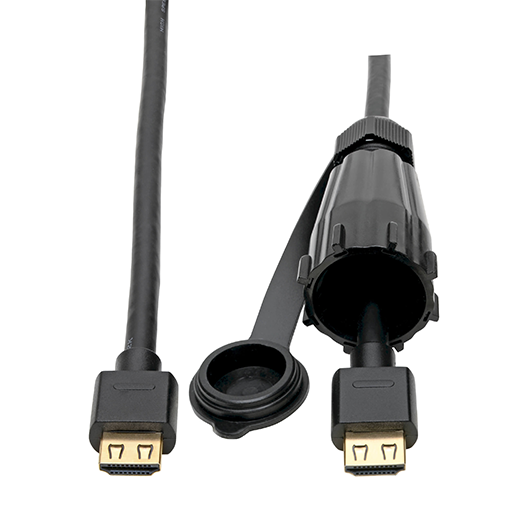

One HDMI connector is protected by a molded IP68-rated watertight hood. The IP68 rating means the connector is not only 100% protected against dust, but also able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance*. This makes the P569-006-IND ideal for basement and other applications that must transmit video from a dry environment to a wet one.

Enjoy the Clarity of 4K HDMI Video with Audio, HDR and 4:4:4 Color
This HDMI cable supports Ultra HD resolutions up to 4K, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This cable also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

*Based on manufacturer’s guarantee. Standard IP68 rating guarantees water resistance at depths up to 1.5 meters for up to 30 minutes.
