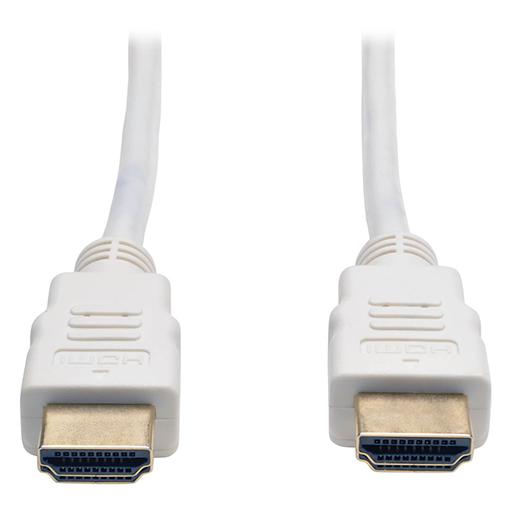

Tripp Lite High-Speed HDMI Cable (M/M) – 4K, Gripping Connectors, White, 3 ft. (0.9 m)

Availability:

Only 1 left in stock

SKU: P568-003-WH

Categories: ,

  • Supports UHD video resolutions up to 4K
  • Backward compatible with previous HDMI generations
  • Premium foil and braid shielding protects against EMI/RFI noise
  • Gold-plated white connectors for optimal signal transfer

QAR 39

Only 1 left in stock

Order By Whatsapp Order By Call

Order now & Get it delivered Tomorrow!!

VIDEO

Max Supported Video Resolution3840 x 2160 @ 30Hz
Max Supported Color Depth24-bit True Color
HDR SupportNo
3D Video SupportedNo
Chroma Sub Sampling4:4:4
EDID SupportYes
Signal TransmissionBidirectional

AUDIO

Audio SpecificationStereo Audio

USER INTERFACE, ALERTS & CONTROLS

LED Indicators0

PHYSICAL

ColorWhite
Cable Jacket ColorWhite
Connector ColorWhite
Cable Jacket MaterialPVC
Cable Jacket RatingVW-1
Cable Outer Diameter (OD)5.5mm
Wire Gauge (AWG)30
Cable Length (ft.)3
Ferrite CoreNo
Minimum Bend Radius55mm
Shipping Dimensions (hwd / in.)9.00 x 7.00 x 0.50
Shipping Weight (lbs.)0.18

ENVIRONMENTAL

Operating Temperature Range32 to 113 F (0 to 45 C)
Storage Temperature Range-40 TO 176 F (-40 TO 80 C)
Operating Humidity Range10 to 85% RH, Non-Condensing
Storage Humidity Range5 to 90% RH, Non-Condensing

COMMUNICATIONS

Consumer Electronics Control (CEC) SupportedYes

CONNECTIONS

Side A – Connector 1HDMI (MALE)
Side B – Connector 1HDMI (MALE)
Connector PlatingGold
Contact PlatingGold
Connector StyleStraight

FEATURES & SPECIFICATIONS

HDCP Specification1.3
EMI/RFI Line Noise ProtectionNo
IP68 RatedNo
Ethernet SupportNo

STANDARDS & COMPLIANCE

Product ComplianceRoHS; REACH

The P568-003-WH High-Speed HDMI 4K Cable (M/M) is recommended for digital signage, video presentations, point-of-sale displays, classrooms and other applications that display Ultra High Resolution (UHD) video and multi-channel audio. It connects 4K-enabled source devices, such as computers and Blu-ray players, to 4K-enabled displays, such as monitors, projectors and televisions.

This cable supports video resolutions up to Ultra HD 4K x 2K (4096 x 2160) at 30 Hz. When used with an Apple digital AV adapter, it supports iPad2 video mirroring for playing games, watching videos or displaying presentations.

The three-foot (0.9-meter) molded 30 AWG cable features premium foil and braid shielding to deliver reliable, error-free signal quality and protection from EMI/RFI line noise that can distort or destroy data. Gold-plated white connectors provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. A flexible PVC jacket makes the HDCP pass-through cable easy to install in tight spaces.

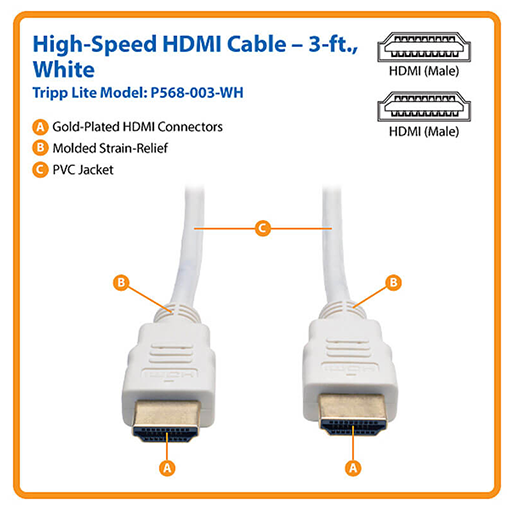

Features

Connects HDMI Source to 4K TV, Projector or Monitor
Ideal for digital signage, video presentations, point-of-sale displays, classrooms and other applications with 4K video and multi-channel audio
High Performance and Wide Compatibility

Supports UHD video resolutions up to 4K
Complies with HDCP pass-through standards
Supports iPad2 video mirroring when used with Apple digital A/V adapter
Backward compatible with previous HDMI generations
Superior Quality Ensures a Flawless Signal

Corrosion-resistant gold-plated white connectors for maximum conductivity and minimum data loss
Fully molded 30 AWG construction with integral strain relief reduces stress and adds flexibility
Premium foil and braid shielding for EMI/RFI noise protection
Flexible PVC jacket easy to install in tight spaces
