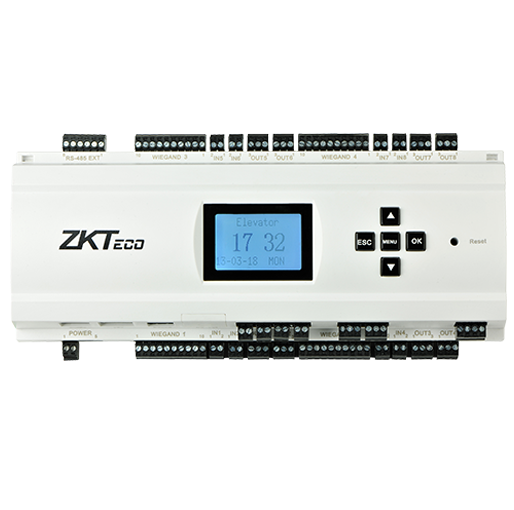

ZKTeco EX16 Elevator Controller
- Floor access can be restricted based on various user credentials, including fingerprint, proximity card, and/or password
- Pre-defined time schedules can be used to control floor access. During normal visits/business hours, unrestricted floor access can also be permitted (aka Passage mode)
- When combined with the EX16 panel, a total of fifty-eight (58) floors can be controlled with a single EC10 bundle
- EC10 panels can be daisy-chained together to control as many floors as desired
- SDK is available for software companies which desire to integrate with the system
Order now & Get it delivered Tomorrow!!
| Fingerprint Capacity | 3000 |
| RFID Card Capacity | 30000 |
| Event Capacity | 100000 |
| Communication to PC | RS485, TCP/IP |
| Communication to EX16 | RS485 |
| Floor Button Control Relay | 16 |
| Number of supported EX16 | 3 |
| RS485 interface | Set by DIP switch |
| Power Supply | 12V DC 1A |
| Dimension (L*D*H) | 160*106mm |
| Net Weight | 0.2kg |

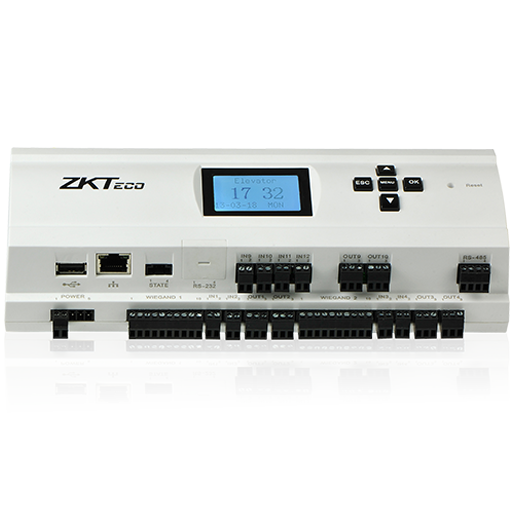

EC10 Elevator Control Panel. Features: restrict access up to 10 floors; each EC10 can support up to three EX16 boards; when combining with EX16 panel, a total fifty-eight (58) floors can be controlled with a single EC10 bundle; EC10 panels can be daisy-chained together to control as many floors as desired; capacity: fingerprint 3000, RFID card 30000, events 100000; communication to PC – TCP/IP, RS485, to EX16 – RS485.
