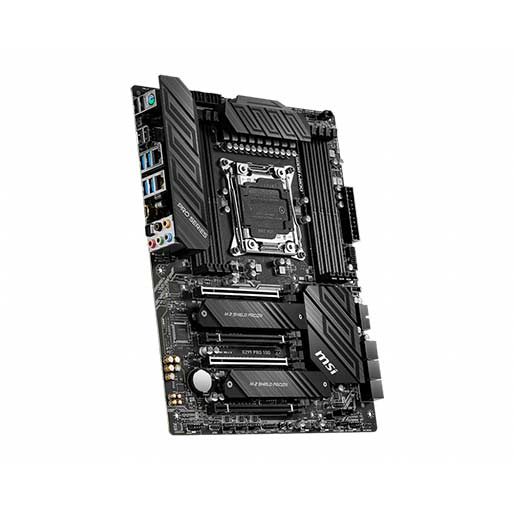

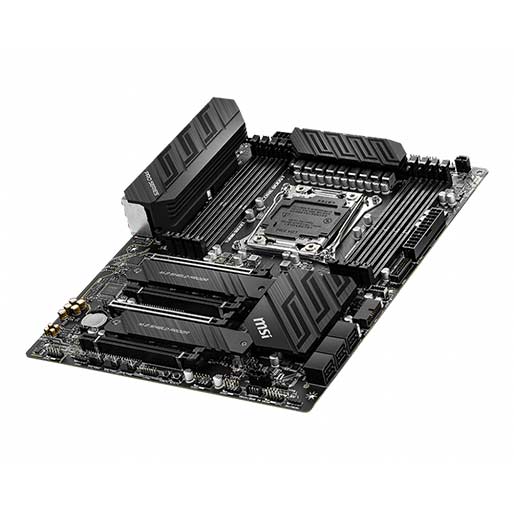

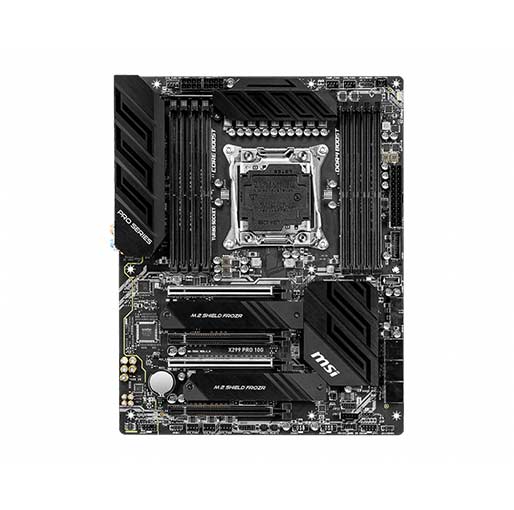

MSI PRO X299 PRO 10G LGA 2066 Intel X299 SATA 6Gb/s ATX Intel Motherboard

Availability:

Out of stock

SKU: MB-MSI-X299-PRO-10G
MFR SKU: X299 PRO 10G
Categories: , , , , ,

  • Supports Intel® Core™ X-series Processors 10000/9000/78xx(above)series for LGA2066 Socket
  • Supports DDR4 Memory, up to 4200+(OC) MHz
  • Lightning USB 20G: Powered by ASMedia ASM3242 USB 3.2 Gen2x2 controller, offers the fastest USB speeds with stability.
  • Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
  • M.2 XPANDER-Z: Offers two extra M.2 slots to increase your storage capacity at maximum speed.
  • Set Core Power Free: Core Boost, 2×8 pin CPU power connector, Core Boost, DDR4 Boost.
  • Extended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
  • Dual LAN onboard: Premium network solution included 1x 2.5G LAN for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • 10G Super LAN card: Next level network speed, secure networking with fastest data throughput to improve efficiency.
  • Audio Boost 4: Reward your ears with studio grade sound quality.
  • Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire™

QAR 1,499

Out of stock

Order now & Get it delivered Today!!

SOCKETLGA2066
CPU (MAX SUPPORT)i9
CHIPSETIntel® X299 Chipset
DDR4 MEMORY4200+(OC)/ 4000(OC)/ 3800 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133 MHz
MEMORY CHANNELQual
MAX MEMORY (GB)256
DIMM SLOTS8
PCI-E X164
PCI-E GENGen3
SATAIII6
M.2 SLOT2
U.21
RAID0/1/5/10
TPM (HEADER)1
LAN1 x Intel® I219-V

1 x Realtek RTL8125-CG 2.5G

USB 3.2 PORTS (FRONT)1(Gen2x2, Type C), 4(Gen1, Type A)
USB 3.2 PORTS (REAR)

1(Gen2, Type C), 4(Gen1, Type A)

USB 2.0 PORTS (FRONT)4
USB 2.0 PORTS (REAR)4
AUDIO PORTS (REAR)Realtek® ALC1220 Codec
DIRECTX12
FORM FACTORATX
SLIY
CROSSFIREY
OPERATING SYSTEMSupport for Windows® 10 64-bit
PROCESSORSupports Intel® Core™ X-series 10000/ 9000/ 78xx (above) processors for socket LGA2066
CHIPSETIntel® X299 Chipset
MEMORY8 x DDR4 memory slots, support up to 256GB

Supports DDR4 4200+(OC)/ 4000(OC)/ 3800 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933/ 2666/ 2400/ 2133 MHz1,2

Quad channel memory architecture

Supports Intel® Extreme Memory Profile (XMP)

Supports non-ECC UDIMM memory

Supports un-buffered memory

SLOTS4x PCIe 3.0 x16 slots

Support x16/x4/x16/x8 mode with the 48-lane CPU1

Support x16/x4/x16/x8 mode with the 44-lane CPU1

Support x16/x4/x8/x4 modes with the 28-lane CPU1

Support x8/x4/x8/x0, x8/x4/x4/x4 modes with the 16lane CPU1

1x PCIe 3.0 x1 slot

MULTI-GPUSupports NVIDIA® SLI™ Technology

Supports AMD® CrossFire™ Technology

STORAGEIntel® X299 Chipset

6x SATA 6Gb/s ports1

2 x M.2 slot (Key M)

Supports up to PCIe 3.0 x4 and SATA 6Gb/s

M2_1 slot supports 2242/ 2260 /2280 storage devices

M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices

Supports Intel® Optane™ Memory Ready for all M.2 slots2

1 x U.2 port 3

Supports PCIe 3.0 x4 NVMe storage

Supports Intel® Smart Response Technology 4

RAIDIntel® X299 Chipset

Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 PCIe storage devices

USBUSB 2.0 Hub GL850G

3x USB 2.0 (High-speed USB) ports available through the internal USB connectors.

ASMedia® ASM3142 Chipset

2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the back panel)

1x USB 3.2 Gen2 Type-C port internal USB connector

Intel® X299 Chipset

8x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

5x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 1 port available

AUDIO1x Realtek® ALC1220 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

LAN1 x Intel I219-V Gigabit LAN controller1

I219 LAN doesn’t support G3 to S5 Wake

INTERNAL CONNECTORS1 x 24-pin ATX main power connector

2x 8-pin ATX 12V power connectors

6x SATA 6Gb/s connectors

2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)

1x USB 3.2 Gen2 Type-C port

1x 4-pin CPU fan connector

1x 4-pin Water Pump connector

4x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x TPM module connector

1x Chassis Intrusion connector

1x Virtual RAID on CPU connector

1x Thunderbolt Add-on Card Connector

1x RGB extension connector

BACK PANEL PORTSKeyboard / Mouse

USB 2.0

USB 3.2 Gen1 Type-A

Gigabit LAN

Audio Connectors

USB 2.0

Clear CMOS Button

USB 3.2 Gen1 Type-A

USB 3.2 Gen2 Type-A+C

Optical S/PDIF out

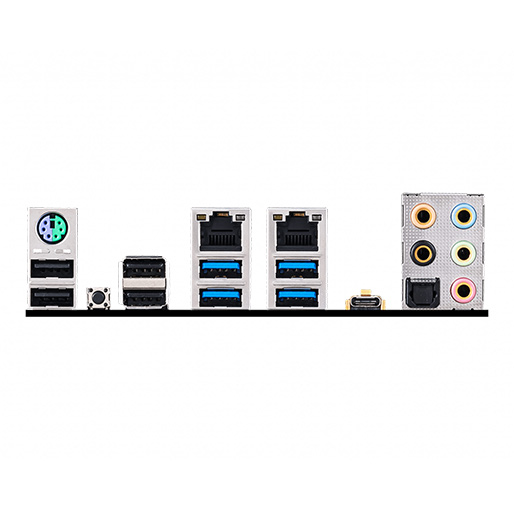

MSI X299 PRO back panel ports

DIMENSIONS12 in. x 9.6 in. (30.5 cm x 24.4 cm)

ATX Form Factor

MOUNTING9 mounting holes

MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.

STAY COOL AND SUSTAIN PERFORMANCE
Cooling is essential for a high performance PC to sustain intense workloads. X299 PRO series features a heavy duty heatsink on the MOSFETs for reliable processor power delivery. Numerous fan headers with full fan speed control lets builders tune their system cooling the way they like it.

USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.

MAXIMUM COMPATIBILITY
Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part – memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want.

LATEST PROCESSORS SUPPORT
MSI X299 motherboards perfectly support latest Intel® Core X-series processors. Combining MSI Core Boost technology, you can release maximum performance no matter what CPU you use.

APPS TO GREATLY IMPROVE EFFICIENCY
With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming. Moreover, we made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance.

ENHANCED PERFORMANCE
MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.

LOOKING COOL WHILE KEEPING COOL
High quality materials and smart fan optimizations contribute to cooling all essential components, which is key to making sure your system runs stable and delivers the best performance at all times.

UNMATCHED MEMORY PERFORMANCE
Optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. you never have to worry about your system crashing during games with MSI DDR4 BOOST.

FAST AND FUTURE-READY STORAGE
MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

MAXIMIZE YOUR USB DEVICE PERFORMANCE
Read and write your files over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB devices, delivering lightning-fast transfer speeds up to 10Gb/s

EXHILARATING AND INSPIRING
Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.

MAKE YOUR PC MORE THAN YOU THINK
PRO Series motherboards combine stable functionality and high quality assembly for clever business solutions. Designed to satisfy any professional workflow, PRO Series motherboards make life easier for businesses and office use.

IN-STUDIO ADVANTAGE
MSI motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.

STABLE, SECURE & FAST NETWORKING
Optimized for content creation, professional and multimedia use, a high quality network solution is equipped to get ready to serve you with 24/7 reliability and stability when transferring big data.

SOUND THAT PULLS YOU INTO THE GAME
Reward your ears with studio grade sound quality. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, studio quality sound to create the most immersive sound experience.

LOYAL COMRADE
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

BUILT ON EVERLASTING QUALITY
Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.

BUILT ON EVERLASTING QUALITY
Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.

FORTIFY YOUR SYSTEM WITH PCI-E STEEL ARMOR
MSI PCI Express Steel Armor slots are armed with more solder points on the motherboard for a stronger hold, preventing any damage due to heavy-weight graphics cards. Steel Armor also protects PCI Express signals against electromagnetic interference for a pure gaming experience and even higher overclocking.

SUPER STABLE GAMING WITH THE HIGHEST QUALITY COMPONENTS
MSI uses the high quality components , which is shielded by the best protection to make sure your system runs smoothly under the most extreme conditions.

SOLID CAP
With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.

TITANIUM CHOKE II
Ti choke II is smaller in size and has improved a 30% power efficiency and power delivering, allowing for better overclocking and stability

ULTIMATE MOTHERBOARD PROTECTION
We’ve made sure you can enjoy your system endlessly. MSI motherboards feature Double ESD protection with double layer grounding around the motherboard mounting holes, preventing Electrostatic discharge (ESD) surges from damaging the motherboard.

WINDOWS 10 CERTIFIED
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 10.With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.
