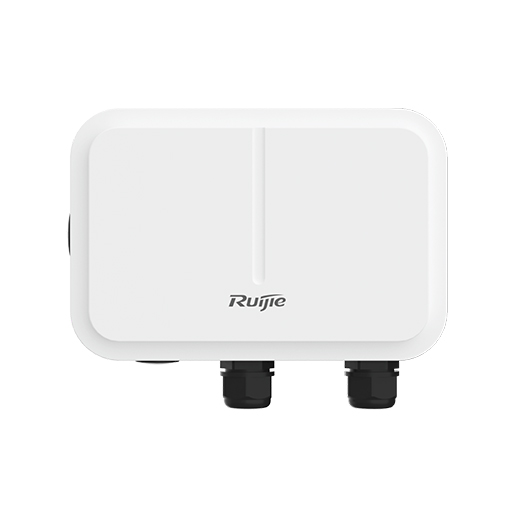

Ruijie RG-AP680(CD) Wi-Fi 6 Dual Radio 2400 Mbps Outdoor High Power Wireless AP, 1 Gbps Optical Port

SKU: RG -AP680(CD)

Categories: ,
Add to Wishlist
  • Industrial-rated design, IP68 rating, 9 kV surge protection, and a wide operating temperature range (–40°C to +65°C)
  • Optical port and electrical port for flexible networking
  • 2400 Mbps ultra-fast speed with Wi-Fi 6
  • Unified WIS cloud management for efficient O&M without site visits

QAR 1,469

Order By Whatsapp Order By Call

Order now & Get it delivered Today!!

Dimensions and Weight RG-AP680(CD)
Unit dimensions (W x D x H) 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.)
Shipping dimensions (W x D x H) 405 mm x 232 mm x 325 mm (15.94 in. x 9.13 in. x 12.80 in.)
Unit weight Main unit: 1.5 kg (3.31 lbs)

Mounting bracket: 0.2 kg (0.44 lbs)
Shipment weight 2.92 kg (6.44 lbs)
Mounting Wall/Pole-mount (a mounting bracket is delivered with the main unit)



Wi-Fi Radio RG-AP680(CD)
Radio design Dual-radio and up to four spatial streams:

●    Radio 1: 2.4 GHz/5 GHz, two spatial streams, 2×2 MU-MIMO

●    Radio 2: 5 GHz, two spatial streams, 2×2 MU-MIMO
Operating frequencies Radio 1: 802.11b/g/n/ax

●    2.400 GHz to 2.483 GHz, channels 1 to 13

Radio 2: 802.11a/n/ac/ax

●    5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48

●    5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64

●    5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140

●    5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165

Note: Country-specific restrictions apply.
Data rates Combined peak date rate for 2.4 GHz and 5 GHz radios: 1.775 Gbps

Combined peak date rate for 5 GHz and 5 GHz radios: 2.4 Gbps

Radio 1:

2.4 GHz: 574 Mbps

●    Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (max.)

●    Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical)

5 GHz: 1.2 Gbps

●    Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (max.)

●    Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (typical)

●    Two spatial stream Multi-User (MU) MIMO for up to 1.2 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (max.)

●    Two spatial stream Multi-User (MU) MIMO for up to 574 Mbps wireless data rate to up to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)

Radio 2: 5 GHz, 1.2 Gbps

●    Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (max.)

●    Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (typical)

●    Two spatial stream Multi-User (MU) MIMO for up to 1.2 Gbps wireless data rate to up to two 1SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (max.)

●    Two spatial stream Multi-User (MU) MIMO for up to 574 Mbps wireless data rate to up to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)
Data rate set The following 802.11-compliant data rates in Mbps are supported:

2.4 GHz radio

●    802.11b: 1, 2, 5.5, 11

●    802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54

●    802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

●    802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT40)

●    802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)

5 GHz radio

●    802.11a: 6, 9, 12, 18, 24, 36, 48, 54

●    802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)

●    802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80)

●    802.11ax: 8.6 to 1,200 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
Packet aggregation 802.11n/ac/ax: A-MPDU and A-MSDU
Antenna type Built-in intelligent antenna
Max. antenna gain 2.4 GHz radio: 9 dBi

5 GHz radio: 9 dBi
Max. transmit power 2.4 GHz radio: 28 dBm (25 dBm per chain)

5 GHz radio: 28 dBm (25 dBm per chain)

Note: The transmit power is limited by local regulatory requirements.
Power increment Configurable in increments of 1 dBm
Radio technologies 802.11b: Direct-Sequence Spread-Spectrum (DSSS)

802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)

802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
Modulation types 802.11b: BPSK, QPSK, CCK

802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM



The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation.

Wi-Fi Radio

Frequency Performance

 RG-AP680(CD)
Frequency Band and Protocol Data Rate Max. Transmit Power per Transmit Chain Max. Receive Sensitivity per Receive Chain
2.4 GHz 802.11b 1 Mbps 25 dBm –92 dBm
2 Mbps 25 dBm –82 dBm
5.5 Mbps 25 dBm –84 dBm
11 Mbps 25 dBm –78 dBm
2.4 GHz 802.11g 6 Mbps 25 dBm –84 dBm
24 Mbps 23 dBm –74 dBm
36 Mbps 23 dBm –72 dBm
54 Mbps 20 dBm –67 dBm
2.4 GHz 802.11n (HT20) MCS0 25 dBm –84 dBm
MCS7 20 dBm –66 dBm
2.4 GHz 802.11n (HT40) MCS0 25 dBm –79 dBm
MCS7 20 dBm –63 dBm
2.4 GHz 802.11ax (HE20) MCS0 25 dBm –84 dBm
MCS11 18 dBm –54 dBm
2.4 GHz 802.11ax (HE40) MCS0 25 dBm –80 dBm
MCS11 18 dBm –51 dBm
5 GHz 802.11a 6 Mbps 25 dBm –84 dBm
24 Mbps 23 dBm –74 dBm
36 Mbps 23 dBm –72 dBm
54 Mbps 20 dBm –67 dBm
5 GHz 802.11n (HT20) MCS0 25 dBm –84 dBm
MCS7 20 dBm –66 dBm
5 GHz 802.11n (HT40) MCS0 25 dBm –81 dBm
MCS7 20 dBm –63 dBm
5 GHz 802.11ac (VHT20) MCS0 25 dBm –84 dBm
MCS9 19 dBm –61 dBm
5 GHz 802.11ac (VHT40) MCS0 25 dBm –81 dBm
MCS9 19 dBm –56 dBm
5 GHz 802.11ac (VHT80) MCS0 25 dBm –78 dBm
MCS9 19 dBm –53 dBm
5 GHz 802.11ax (HE20) MCS0 25 dBm –84 dBm
MCS11 18 dBm –54 dBm
5 GHz 802.11ax (HE40) MCS0 25 dBm –81 dBm
MCS11 18 dBm –51 dBm
5 GHz 802.11ax (HE80) MCS0 25 dBm –78 dBm
MCS11 18 dBm –48 dBm



Bluetooth Radio RG-AP680(CD)
Bluetooth Bluetooth 5.0
Antenna type Integrated omnidirectional antenna
Max. antenna gain 4.5 dBi
Max. transmit power 10 dBm
Receive sensitivity -88 dBm (@BLE)



Ports RG-AP680(CD)

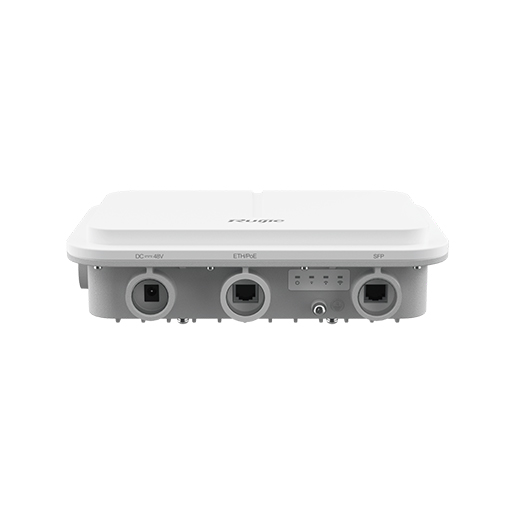

Fixed service port 1 x 10/100/1000Base-T Ethernet port, supporting PoE input

1 x GE SFP port
Fixed management port 1 x RJ45 console port (serial console port)
Status LED 1 x multi-color system status LED

3 x single-color RSSI LEDs
Button 1 x Reset button

●    Press the button for shorter than 2 seconds. Then the device restarts.

●    Press the button for longer than 3 seconds. Then the device restores to factory settings.



Power Supply and Consumption RG-AP680(CD)
Input power supply The AP supports the following two power supply modes:

●    48 V DC/0.35 A power input over DC connector: The DC connector accepts 2.0 mm/6.3 mm center-positive circular plug. A DC power adapter needs to be purchased independently.

●    PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+).

Note:

If both DC power and PoE are available, DC power is preferred.
Power consumption Max power consumption: 12.95 W

●    DC powered: 12.95 W

●    PoE powered (802.3af): 12.95 W

●    PoE+ powered (802.3at): 12.95 W

●    PoE++ powered (802.3bt): 12.95 W

●    Idle mode: 6.0 W



Environment and Reliability RG-AP680(CD)
Temperature Operating temperature: –40°C to +65°C (–40°F to +149°F)

Storage temperature: –40°C to +85°C (–40°F to +185°F)

Note: At an altitude between 3,000 m (9,843 ft.) and 5,000 m (16,404 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F).
Humidity Operating humidity: 0% to 100% RH (non-condensing)

Storage humidity: 0% to 100% RH (non-condensing)
IP rating IP68
Mean Time Between Failure (MTBF) > 250,000 hours



Certifications and Regulatory Compliance RG-AP680(CD)
Regulatory compliance EN 55032

EN 55035

EN 61000-3-3

EN IEC 61000-3-2

EN 301 489-1

EN 301 489-3

EN 301 489-17

EN 300 328

EN 301 893

EN 300 440

FCC Part 15

EN IEC 62311

IEC 62368-1

EN 62368-1

IEC 60950-22



*For more country-specific regulatory information and approvals, contact your local sales agency.

Applicable Software Version RG-AP680(CD)
Applicable software version RGOS11.9(6)W1B1 or later



WLAN RG-AP680(CD)
Max. number of associated STAs 1,024 (up to 512 STAs per radio)
Max. number of BSSIDs 32 (up to 16 BSSIDs per radio)
STA management SSID hiding

Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.

Remote intelligent perception technology (RIPT)

Intelligent client identification technology

Intelligent load balancing based on the STA quantity or traffic
STA limiting SSID-based STA limiting

Radio-based STA limiting
Bandwidth limiting STA/SSID/AP-based rate limiting
Wireless roaming Layer 2 and Layer 3 roaming



Security RG-AP680(CD)
Authentication and encryption Remote Authentication Dial-In User Service (RADIUS)

PSK and web authentication

QR code-based guest authentication (used with the RG-WS series wireless access controller)

SMS authentication (used with the RG-WS series wireless access controller)

MAB authentication (used with the RG-WS series wireless access controller)

Data encryption: WPA (TKIP), WPA-PSK, WPA2 (AES), WEP (64/128-bit)
Data frame filtering Allowlist, static blocklist, and dynamic blocklist
WIDS User isolation

Rogue AP detection and containment
ACL Dynamic ACL assignment
CPP Supported
NFPP Supported



Routing and Switching RG-AP680(CD)
IP service Static IPv4 address

IPv4 DHCP client

NAT FTP ALG and NAT DNS ALG
Multicast Multicast-to-unicast conversion
IPv6 basics IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping

IPv6 DHCP client
IP routing IPv4/IPv6 static routing
VPN PPPoE client

IPsec VPN



Management RG-AP680(CD)
Network management Fault inspection and alarm

Information statistics and logging
Network management platform Web-based management (Eweb)
User access management Telnet, SNMP, SSH, and TFTP-based management
Fat/Fit/Cloud mode switchover When the AP works in Fit mode, it can be switched to Fat mode through an AC.

When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.

When the AP works in Cloud mode, it can be managed through Ruijie Cloud.

Ruijie  Wi-Fi  6  (802.11ax)  outdoor  wireless  access  point,  dual-band  dual-radio,  up  to  575Mbps@2.4G, and 1775Mbps per AP, 4 spatial streams, built-in directional  antenna,  support  802.11a/b/g/n/ac  and  802.11ax,  FAT/FIT  mode,  1  SFP  port  and  1  10/100/1000M  port,  PoE  or  local  power  supply,  bundled  with  Ruijie  Cloud  Service  lifetime  license (Installation Mount-Kit included, but PoE adaptor sold separately)
