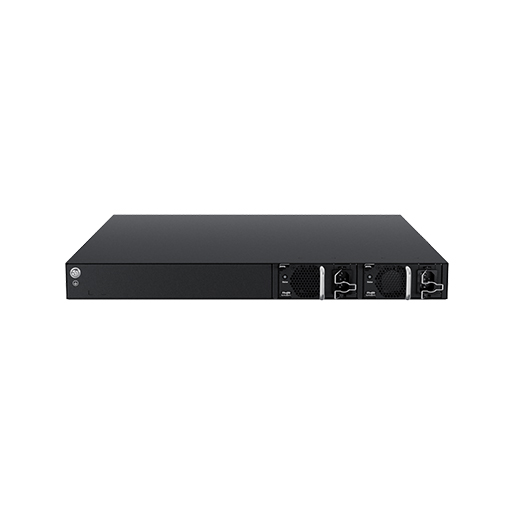

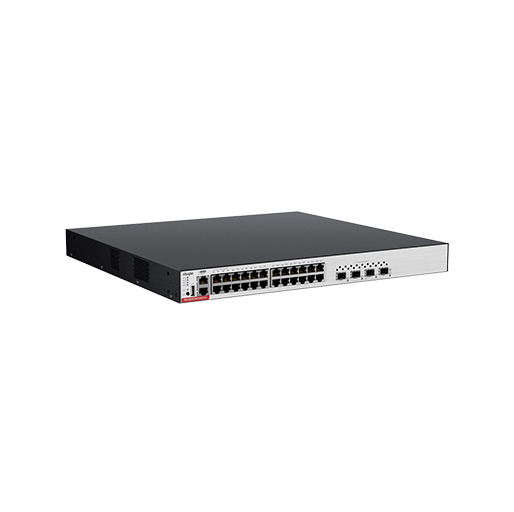

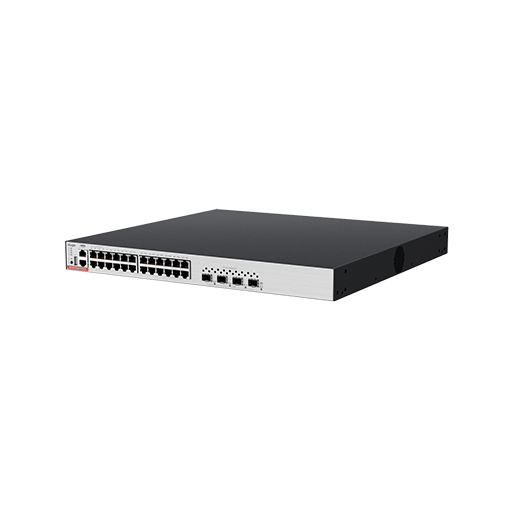

Ruijie RG-S5310-24GT4XS-P-E 24-Port GE Electrical Layer 3 Managed Access Switch with PoE+, Four 10G Uplink Ports
- Rich port types, 24 x 1000 Mbps Ethernet ports, 4 x 10G optical ports for uplink
- IEEE 802.3af and IEEE 802.3at compliant, PoE+ supported
- VSU virtualization, flexible networking and high performance
- Network security policies and real-time monitoring, delivering enhanced network robustness
- Multiple management modes, simplified and easy network maintenance
QAR 3,829
Order now & Get it delivered Today!!
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 96 Mpps |
| Number of MAC addresses | 32,000 |
| ARP table size | 4k/16k (authorized) |
| ND table size | 2k/8k (authorized) |
| Number of IPv4 unicast routes | 8k/12k (authorized) |
| Number of IPv4 multicast routes | 2,500 |
| Number of IPv6 unicast routes | 4,000 |
| Number of IPv6 multicast routes | 1,200 |
| Number of ACEs | Ingress: 3,500 Egress: 1,500 |
| Number of IGMP groups | 2,500 |
| Number of MLD groups | 1,000 |
| CPU | 1.2 GHz dual-core processor |
| BOOTROM | 16 MB |
| Flash | 2 GB |
| SDRAM | 1 GB |
| Primary airflow | Left/Front-to-rear airflow |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating humidity | 10% to 90% RH (non-condensing) |
| Storage humidity | 5% to 95% RH (non-condensing) |
| Operating altitude | 0 m to 5000 m (16404.20 ft.) |
| Feature | Description |
| Ethernet Switching | IEEE 802.1Q (supporting 4K VLANs) |
| Jumbo frame (maximum length: 9,216 bytes) | |
| Maximum number of VLANs that can be created: 4,094 | |
| Voice VLAN | |
| Super VLAN and private VLAN | |
| MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment | |
| GVRP | |
| Basic QinQ and selective QinQ | |
| STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) | |
| Auto errdisable recovery BPDU filter BPDU guard Port fast Root guard | |
| ERPS (G.8032) | |
| LLDP/LLDP-MED, LLDP IPv6, and LLDP-POE | |
| IP Service | Static and dynamic ARP, ARP proxy, and ARP entry timeout |
| DHCP client, DHCP relay, DHCP server, and DHCP snooping | |
| DHCPv6 client, DHCPv6 relay, DHCPv6 server, and DHCPv6 snooping | |
| DNS client, DNS proxy, and DNSv6 client | |
| MAC address filtering Setting the MAC address aging time | |
| Neighbor Discovery (ND), ND proxy, and ND snooping | |
| GRE tunnel | |
| IP Routing | IPv4 and IPv6 static routing |
| RIP and RIPng | |
| OSPFv2, OSPFv3, and GR | |
| IS-ISv4 and IS-ISv6 | |
| BGP4 and BGP4+ | |
| IPv4/IPv6 VRF | |
| IPv4/IPv6 PBR | |
| Multicast | IGMPv1/v2/v3 |
| IGMPv1/v2 snooping | |
| IGMP fast leave | |
| PIM-DM, PIM-SM, PIM-SSM, PIM SMv6, and PIM-SSMv6 | |
| MSDP for inter-domain multicast | |
| MLDv1/v2 and MLD proxy | |
| MLDv1/v2 snooping | |
| PIM-SMv6 | |
| Multicast source IP address check Multicast source port check | |
| Multicast querier | |
| ACL and QoS | Standard IP ACLs (hardware ACLs based on IP addresses) |
| Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) | |
| Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) | |
| Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) | |
| Time based ACLS, ACL 80, and IPv6 ACL | |
| Global ACLs | |
| ACL redirection | |
| Port traffic identification | |
| Port traffic rate limiting | |
| 802.1p/DSCP/ToS traffic classification | |
| Congestion management: SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, and SP+WFQ | |
| Congestion avoidance: tail drop, RED, and WRED | |
| Eight priority queues per port | |
| Rate limiting in each queue | |
| Security | Multiple AAA modes |
| RADIUS authentication and authorization | |
| RADIUS and TACACS+ | |
| IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication | |
| Web authentication | |
| Hypertext Transfer Protocol Secure (HTTPS) | |
| SSHv1 and SSHv2 | |
| Global IP-MAC binding | |
| ICMPv6 | |
| Port security | |
| IP source guard | |
| SAVI | |
| ARP spoofing prevention | |
| CPP and NFPP | |
| Multiple attack defense functions | |
| 3-tuple binding (IP address, MAC address, and port) 3-tuple binding (IPv6 address, MAC address, and port) Filtering of invalid MAC addresses Port- and MAC address-based 802.1x authentication MAB authentication Portal authentication and Portal 2.0 authentication ARP check DAI ARP packet rate limiting Gateway ARP spoofing prevention Broadcast storm suppression Hierarchical management of administrators and password protection BPDU guard Port protection | |
| Reliability | REUP |
| RLDP | |
| RLDP, Layer 2 link connectivity detection, and unidirectional link detection | |
| DLDP | |
| IPv4 VRRP v2/v3, IPv6 VRRP, and super-VLAN for VRRP | |
| BFD, RAS, NSR, VRRR, VRRP+, and SDN loop detection | |
| Basic LACP Inter-VSU AP | |
| Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM) | |
| Hot swapping of power modules | |
| Device virtualization | VSU Local and remote stacking Inter-chassis link binding in a stack Virtualization through standard service interfaces |
| NMS and maintenance | RSPAN and ERSPAN |
| sFlow | |
| NTP client, NTP server, NTPv6 client, and NTPv6 server | |
| SNTP | |
| CLI (Telnet/Console) | |
| FTP client, FTP server, FTPv6 client, and FTPv6 server | |
| TFTP client, TFTP server, TFTPv6 client, and TFTPv6 server | |
| FTP and TFTP | |
| SNMP v1/v2/c3 | |
| Web | |
| Syslog/Debug | |
| RMON (1, 2, 3, 9) Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups RMON used to implement Ethernet statistics, historical statistics, and alarm functions | |
| NETCONF | |
| MACC | |
| CWMP | |
| gRPC | |
| OpenFlow Special 1.3 Flow table analysis defined by all protocols Transmission of specified packets to the controller Configuring the controller’s IP address and port Notifying port status changes to the controller | |
| RNS, configuration rollback, and 802.3ah | |
| 1:1 mirroring N:1 mirroring 1:N mirroring Flow-based local and remote mirroring | |
| VXLAN | VXLAN (authorized) |
| PoE | RG-S5310-24GT4XS-P-E and RG-S5310-48GTXS-P-E: IEEE 802.3af and 802.3at power supply standards Automatic and energy-saving power supply management modes Uninterrupted power supply in hot start mode Scheduled power-on or power-off of PoE ports based on the time policy Port priority |
Layer 3 Access Switch for 10G Uplink RG-S5310-24GT4XS-P-E
Full-gigabit access switch for large-sized enterprise and campus LANs, with four 10G uplink optical ports for high-speed data transmission 24 x 1000 Mbps Ethernet ports with auto-negotiation, PoE+ supported, providing high-speed network experience for short-distance services
PoE+ Supported, Powering Different Terminal Devices
The switch automatically detects and supplies the required power for powered devices, providing up to 15.4 W for IEEE 802.3af-compliant devices, or up to 30 W for IEEE 802.3at-compliant devices, meeting the requirements of common PoE applications such as security surveillance, teleconferencing, and wireless coverage.
Network Security Policies and Real-Time Monitoring, Delivering Enhanced Network Robustness
CPU Protect Policy (CPP) is supported to control the packet type and traffic volume sent to the CPU to prevent high CPU usage. Network Foundation Protection Policy (NFPP) is supported to isolate users with attacker behaviors to ensure network security and stability.
