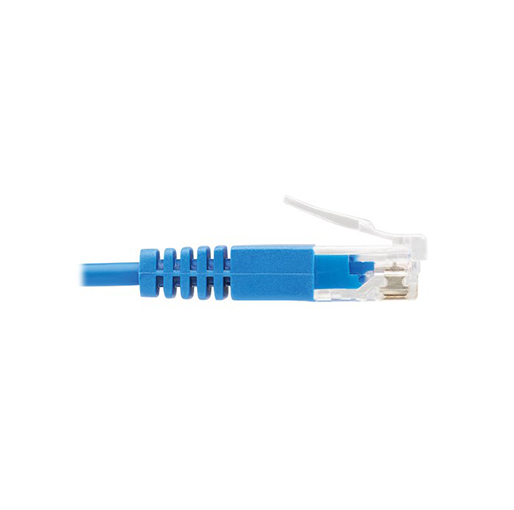

Tripp Lite Cat6 Gigabit Molded Ultra-Slim UTP Ethernet Cable (RJ45 M/M), Blue, 3 ft. (0.91 m)

QAR 29

Availability:

Only 1 left in stock

SKU : N200-UR03-BL

  • Premium Cat6 cable rated for high-speed 1 Gbps home/office communications
  • Over 50% slimmer than standard Cat6 cables to increase airflow in full racks
  • Easy to route around corners and through crowded cable management panels
  • 32 AWG copper wire and 3 µm gold-plated connectors allow superior signal transfer
  • Color-coded blue for fast, easy identification in a crowded rack or workstation
  • Premium Cat6 cable rated for high-speed 1 Gbps home/office communications
  • Over 50% slimmer than standard Cat6 cables to increase airflow in full racks
  • Easy to route around corners and through crowded cable management panels
  • 32 AWG copper wire and 3 µm gold-plated connectors allow superior signal transfer
  • Color-coded blue for fast, easy identification in a crowded rack or workstation

QAR 29

Only 1 left in stock

Order By Call
UPC Code 037332256928
Technology Cat6

PHYSICAL

Color Blue
Cable Shielding UTP
Cable Jacket Material PVC
Cable Outer Diameter (OD) 2.8mm
Number of Conductors 4 Pair
Conductor Material Stranded Copper
Conductor Gauge 32 AWG
Cable Length (m) 0.9

ENVIRONMENTAL

Operating Temperature Range 14 to 104 F (-10 to 40 C)
Storage Temperature Range 5 to 122 F (-15 to 50 C)
Operating Humidity Range 0% TO 90% RH, Non-Condensing
Storage Humidity Range 0% TO 90% RH, Non-Condensing

COMMUNICATIONS

Bandwidth per TIA Standard 250 MHz
Maximum Bandwidth as Tested 600 MHz
Maximum Data Rate 1Gbps
Network Speed 1Gbps

CONNECTIONS

Side A – Connector 1 RJ45 (MALE)
Side B – Connector 1 RJ45 (MALE)
Crossover Wiring No
Contact Plating Gold
Connector Type Molded
Wiring Configuration EIA/TIA 568B

FEATURES & SPECIFICATIONS

Cable Style Unshielded; Ultra-Slim; Molded

SPECIAL FEATURES

IP68 Rated No
Snagless Connector No
Antibacterial No

STANDARDS & COMPLIANCE

Certifications RoHS and REACH

Cat6 Cable Ideal for Connecting Equipment in Your Gigabit Ethernet Network
This Cat6 Ethernet cable with RJ45 connectors is recommended for connecting network components like printers, computers, copiers, routers, servers, modems and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this three-foot cable ensures peak performance throughout your local area network (LAN).

Special Ultra-Slim Design for Better Airflow and Easier Installation
The N200-UR03-BL is just 2.8 millimeters in diameter—more than 50% smaller than standard Cat6 cable. This increases airflow in crowded equipment racks, which helps keep your components cool and properly functioning. The extra-slim design also makes the cable easier to install around corners and through cable management panels.

Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
The PVC jacket is colored blue to allow easy, fast identification in a crowded rack or workstation and help prevent the cable from becoming inadvertently disconnected.

Premium Construction for Superior Performance
Manufactured from 32 AWG copper wire, the four-pair stranded cable is rated for speeds up to 1 Gbps. The ends feature 3-micron gold plating to help ensure the most accurate signal transfer possible. Integral strain relief gives the unshielded cable extra flexibility, reduces stress, and helps the cable move freely without cracking or breaking loose from the connector.

Typical Applications

  • Connect a computer and its peripherals to a home or office Gigabit Ethernet network
  • Connect switches, modems and servers in a high-density data center
  • Replace standard-diameter cables in crowded racks and patch panel installations to improve airflow

Package Includes

  • N200-UR03-BL Cat6 Ultra-Slim Ethernet Cable (RJ45 M/M), Blue, 3 ft.
