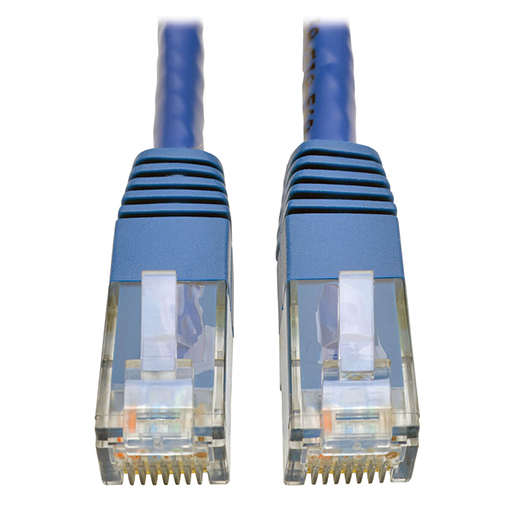

Tripp Lite Cat6 Gigabit Molded (UTP) Ethernet Cable (RJ45 M/M), Blue, 50 ft. (15.24 m)

QAR 69

Availability:

In stock


  • Premium cabling for Cat5/5e/6 home/office network applications
  • Rated for 550 MHz/1 Gbps communication
  • 24 AWG 4-pair solid UTP with PVC jacket
  • Gold-plated copper contacts minimize data loss
  • Integral strain relief protects connectors from stress and cracking
  • Premium cabling for Cat5/5e/6 home/office network applications
  • Rated for 550 MHz/1 Gbps communication
  • 24 AWG 4-pair solid UTP with PVC jacket
  • Gold-plated copper contacts minimize data loss
  • Integral strain relief protects connectors from stress and cracking

QAR 69

In stock

Order By Call

Order now & Get it delivered Today!!

PHYSICAL

Cable Jacket Color Blue
Cable Jacket Material PVC
Cable Jacket Rating CM
Cable Shielding UTP
Cable Outer Diameter (OD) 6.0mm
Number of Conductors 4 Pair
Conductor Material Solid Copper
Conductor Gauge 24 AWG
Cable Length (ft.) 50
Cable Length (in.) 600
Shipping Dimensions (hwd / in.) 10.00 x 12.00 x 0.50
Shipping Weight (lbs.) 1.36

ENVIRONMENTAL

Operating Temperature Range 14 to 104 F (-10 to 40 C)
Storage Temperature Range 5 to 122 F (-15 to 50 C)
Operating Humidity Range 0% to 90% RH, Non-Condensing
Storage Humidity Range 0% to 90% RH, Non-Condensing

COMMUNICATIONS

Bandwidth per TIA Standard 250 MHz
Maximum Bandwidth as Tested 500 MHz
Network Compatibility 1 Gbps (Gigabit)
IEEE Standards Supported 802.3an

CONNECTIONS

Side A – Connector 1 RJ45 (MALE)
Side B – Connector 1 RJ45 (MALE)
Crossover Wiring No
Contact Plating Gold
Connector Type Molded
Wiring Configuration EIA/TIA 568B

FEATURES & SPECIFICATIONS

IP68 Rated No
Snagless Connector No

STANDARDS & COMPLIANCE

Product Compliance RoHS; IEEE 802.3an 10GBase-T; REACH

The N200-050-BL Cat6 Gigabit Molded Patch Cable (M/M) ensures ultra-fast performance throughout your Cat5/5e/6 network application. It connects high-speed network components like computers, printers, video game systems, Blu-ray players, copy machines, routers and modems in a home or office Cat5/5e/6 application.

This 50-ft. (15.24 m) blue cable is designed for 1000Base-T (1 Gbps Ethernet), 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications. Manufactured from 24 AWG 4-pair solid UTP with a staggered-pin plug design and male RJ45 connectors, each cable provides high-speed connections up to 550 MHz/1 Gbps and flawless signal delivery, while keeping near-end crosstalk levels to a minimum.

The N200-050-BL is constructed of top-quality materials for long life and durability. Corrosion-resistant gold-plated copper contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking. Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11).

The Ideal Solution for All High-Speed Cat5/5e/6 Networking

  • Connects high-speed network components, such as computers, printers, video game systems, Blu-ray players, copy machines, routers and modems
  • Designed for 1000Base-T, 10/100Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice, Token Ring Type 3 and EIA/TIA applications
  • Recommended for home or office applications
  • Provides high-speed connections up to 550 MHz/1 Gbps
  • Flawless signal delivery with minimal near-end crosstalk levels

Premium Construction Ensures Error-Free Signal Transfer

  • Manufactured from 24 AWG 4-pair solid UTP with staggered-pin plug design
  • Molded RJ45 connectors and gold-plated copper contacts for maximum conductivity and minimum data loss
  • Integral strain relief protects cable and connectors from stress and cracking
  • Meets most current industry standards, including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11)
