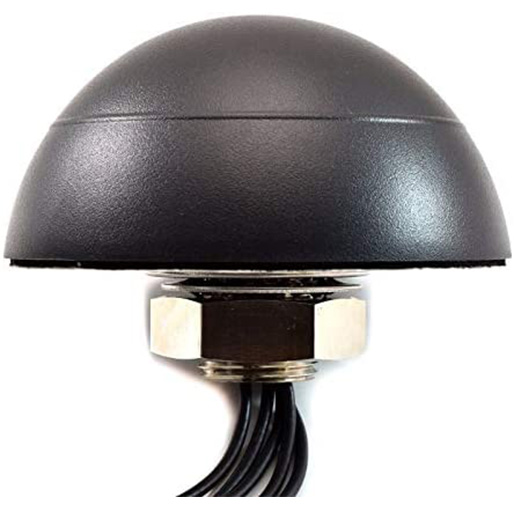

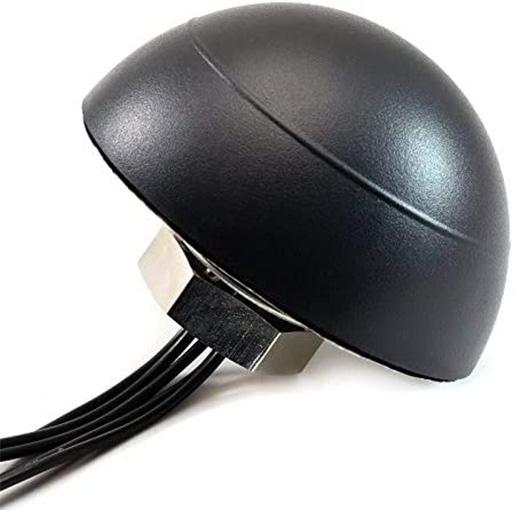

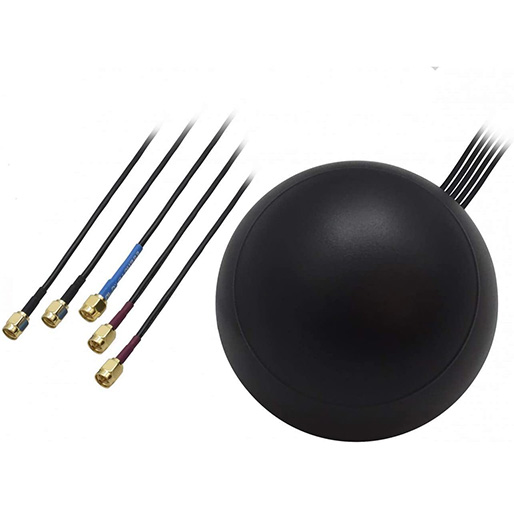

Teltonika PR1KCO28 GNSS/LTE MIMO/Wi-Fi MIMO Antenna Combo

QAR 399

Availability:

In stock

SKU: PR1KCO28

Categories: , , ,

  • GNSS Antenna frequency range: 1575.42-1610 MHz
  • LTE MIMO Antenna frequency range: 698-960/1710-2690 MHz
  • Wi-Fi Antenna frequency range: 2400-2483.5/4900-5825 MHz
  • IP67 Radome Ingress Protection rating
  • GNSS Antenna frequency range: 1575.42-1610 MHz
  • LTE MIMO Antenna frequency range: 698-960/1710-2690 MHz
  • Wi-Fi Antenna frequency range: 2400-2483.5/4900-5825 MHz
  • IP67 Radome Ingress Protection rating

QAR 399

In stock

Order By Call

Order now & Get it delivered Today!!

Frequency Range: 1575.42-1610 MHz
Polarization RHCP
Impedance 50 Ω
LNA Gain 28±2 dB
LNA Noise Figure < 1.5 dB
Supply Voltage 3-5 VDC
Current Consumption < 15 mA
LNA V.S.W.R <2.0
Connector SMA Male
LTE MIMO Antenna
Frequency Range: 698-960/1710-2690 MHz
Polarization Linear
Gain 3 dBi
V.S.W.R: <3.0
Impedance: 50 Ω
Connector: 2x SMA Male
WiFi MIMO Antenna
Frequency Range: 2400-2483.5/4900-5825 MHz
Polarization Linear
Gain 2 dBi
V.S.W.R: <2.5
Impedance: 50 Ω
Connector: 2x RP SMA Male
Mechanical/Environmental
Mounting Method: Screw
Radome Ingress Protection rating: IP67
Radome Material: ABS
Weight: <550g
Housing Dimensions: Ø 110×55 mm

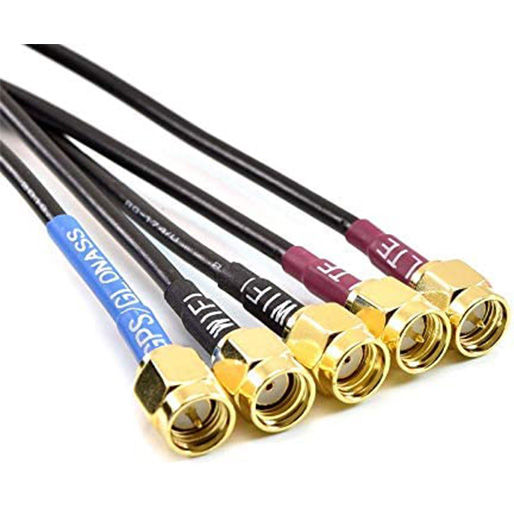

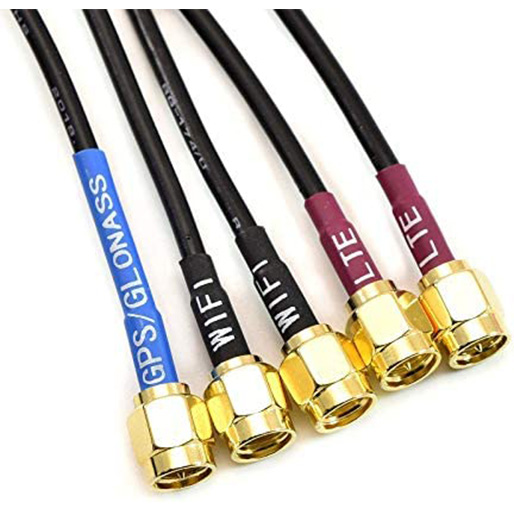

Cable: 5x RG174, 3000 mm

GNSS Antenna:
– Frequency Range: 1575.42-1610 MHz
– Polarization: RHCP
– Impedance: 50 Ω
– LNA Gain: 28±2 dB
– LNA Noise Figure: <1.5 dB

LTE MIMO Antenna:
– Frequency Range: 698-960/1710-2690 MHz
– Polarization: Linear
– Gain: 3 dBi
– V.S.W.R: <3.0
– Impedance: 50 Ω
– Connector: 2x SMA Male

WiFi MIMO Antenna:
– Frequency Range: 2400-2483.5/4900-5825 MHz
– Polarization: Linear
– Gain: 2 dBi
– V.S.W.R: <2.5
– Impedance: 50 Ω
– Connector: 2x RP SMA Male

Mechanical/Environmental Specifications:
– Mounting Method: Screw
– Radome Ingress Protection rating: IP67
– Radome Material: ABS
– Weight: 1.1 pounds
– Housing Dimensions: 4.3 x 2.16 (radius)
– Cable: 5x RG174 (9.8 feet)
